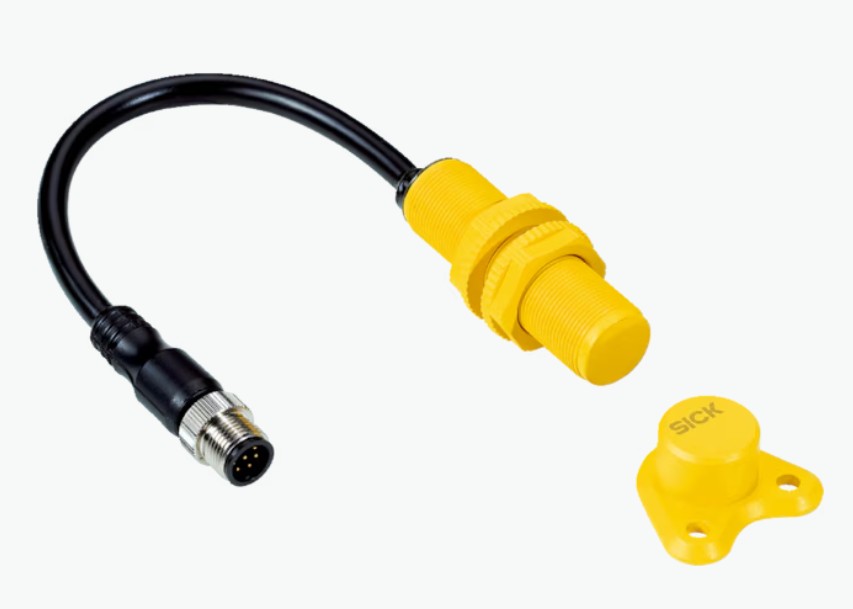

The TR4-SAM01CB is an advanced RFID safety switch designed for high-performance safety interlock applications in industrial environments. Utilizing RFID technology, it offers high tamper resistance and ensures reliable safety interlock functionality, making it an essential component in machine guarding and access control systems. This product features two monitored semiconductor output stages (OSSD) that can be directly connected to a safety controller to ensure system safety. Its compact design and IP69K protection rating make it suitable for harsh environments.
Product Specifications:
Sensor Principle: RFID
Safety Level: PL e, SIL 3
Safety Switching Distance: 15 mm
Connection Type: Cable with M12 plug, 8-pin
Cable Length: 0.2 m
Output Type: Self-monitored semiconductor output (OSSD)
Protection Rating: IP69K
Application Type: Universal code type
Product Features:
High Operational Protection: RFID technology and universal code actuating elements provide high tamper resistance.
Flexible Installation and Cascading: Supports up to 30 sensors in series, simplifying electrical installation and maintenance.
Status Indication: Equipped with an LED status indicator for quick diagnostics.
Durability: Resistant to shocks and vibrations, suitable for high-contamination areas.
Long-Life Design: Wear-free and maintenance-free, ensuring a long service life.
Applications:
The TR4-SAM01CB RFID Safety Switch is widely used as a safety switch in industrial applications that require robust safety interlock mechanisms, including:
Safety Interlock for Machine Guards: Ensures real-time monitoring of machine guards using the RFID Safety Switch, preventing unauthorized access and maintaining compliance with industrial safety standards.
Mobile Protective Equipment: Suitable for mobile protective devices in vibrating environments.
High-Contamination Areas: The RFID Safety Switch is particularly effective in industries with strict hygiene requirements, such as food processing and pharmaceuticals, where a safety switch with an IP69K protection rating ensures long-term durability.
Instructions for Use:
Installation and Wiring:
Installation Environment: Choose a dust-free, non-corrosive gas-free, and low-electromagnetic interference environment to ensure proper heat dissipation.
Wiring Requirements: Follow the product manual for wiring, ensuring secure cable connections and proper grounding.
Parameter Settings and Commissioning:
Actuating Element Configuration: Select universal code or single-code actuating elements based on application needs.
Status Indication: Monitor the device's operating status using the LED status indicator.
Maintenance and Inspection:
Regular Inspection: Check the device's appearance, cable connections, and LED status indicator.
Cleaning and Maintenance: Regularly clean the device's surface to ensure normal operation in high-contamination environments.
Precautions:
Environmental Requirements: Avoid using in high-temperature, high-humidity, or high-electromagnetic interference environments.
Cable Connection: Ensure secure cable connections to prevent safety hazards caused by loose connections.
Operational Protection: Avoid contact with live parts during device operation to ensure operator safety.
FAQ:
What is the safety level of the TR4-SAM01CB? The TR4-SAM01CB has a safety level of PL e and SIL 3, meeting international safety standards for high-demand safety applications.
How to choose the cable length for the TR4-SAM01CB? The TR4-SAM01CB comes with a 0.2-meter cable length. Users can select the appropriate cable length based on actual installation needs.
What is the protection rating of the TR4-SAM01CB? The device has an IP69K protection rating, effectively preventing dust and high-pressure water jets, making it suitable for harsh environments.
Does the TR4-SAM01CB support cascading? Yes, this safety switch supports cascading up to 30 sensors, simplifying safety interlock configurations and expanding system coverage in large-scale industrial environments.
How to ensure operational protection for the RFID Safety Switch? The safety switch enhances security through advanced RFID authentication, making it ideal for safety interlock applications that demand high tamper resistance.
Is the TR4-SAM01CB suitable for vibrating environments? Yes, the device is resistant to shocks and vibrations, making it suitable for mobile protective equipment in high-vibration environments.
What is the function of the LED status indicator on the RFID Safety Switch? The LED status indicator continuously monitors the safety switch, ensuring optimal safety interlock performance and quick diagnostics for industrial applications.
What should be noted during the installation of the RFID Safety Switch? Ensure the safety switch is installed correctly and that all wiring is securely connected to maintain uninterrupted safety interlock functionality.
What is the maintenance cycle for the TR4-SAM01CB? Regularly inspect the device's appearance, cable connections, and heat dissipation. The specific maintenance cycle depends on the usage environment.
What is the operating temperature range of the TR4-SAM01CB? The device operates within a temperature range of -25°C to +70°C, suitable for various industrial environments
