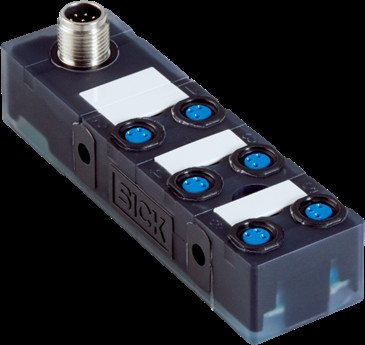

The Y8A36A2-C2A8000XXX Passive Distributor Box, meticulously designed by SICK for the industrial automation sector, is a high-reliability SICK sensor connection device that ensures robust and stable connections for SICK connectors, proximity sensors, and IOlink devices. This distributor box is engineered to meet the stringent demands of industrial applications, providing excellent electrical performance and a durable structure. It is particularly highlighted for its compatibility with SICK connectors, proximity sensors, and IOlink systems, making it an ideal choice for integrating these advanced sensors into complex industrial systems. This article will provide a detailed introduction to the product's parameters, features, application scenarios, usage instructions, and precautions, ensuring users can effectively promote and utilize the SICK sensor connection.
Product Parameters
Electrical Parameters: The measuring voltage is ≤24V DC, with a current-carrying capacity of 2A and an overvoltage category of III. This ensures stable operation within the standard industrial voltage range, making it suitable for use with proximity sensors and IOlink devices.
Connection Characteristics: The device features 6 slots, with slot connection types being M8, 3-pin, A-coded, socket; and relay line connection types being M12, 8-pin, A-coded, plug. These connections are ideal for integrating with proximity sensors and IOlink devices.
Mechanical Performance: The wrench opening is 13mm, the slot tightening torque is 0.4Nm, and the relay line connection tightening torque is 0.6Nm. The SICK connector ensures that these connections are secure and reliable.
Environmental Adaptability: The operating temperature range is from -20°C to +55°C, and the enclosure protection rating reaches IP65/IP67, enabling it to withstand harsh industrial environments. This is particularly important for proximity sensors and IOlink devices, which often operate in challenging conditions.
Product Features
Shieldless Design: The absence of shielding in its design prevents unnecessary interference during signal transmission, ensuring the purity and stability of the signals. This is especially beneficial when used with proximity sensors and IOlink devices.
LED Indicator Lights: Each slot and relay line connection are equipped with an LED indicator light, facilitating real-time monitoring of the device's operating status and quick fault location for users. These lights are crucial for monitoring the status of proximity sensors and IOlink devices.
High Protection Rating: With an enclosure protection rating of IP65/IP67, it can withstand adverse environmental factors such as dust and water jets, thereby extending the device's service life. This high protection rating is essential for proximity sensors and IOlink devices.
Application Scenarios
Industrial Automation Production Lines: In industrial automation production lines such as automotive manufacturing and electronics production, it is used to connect various sensors and actuators like proximity sensors, photoelectric sensors, and cylinders, enabling signal transmission and coordinated operation between devices. The SICK sensor connection ensures reliable connections, making it ideal for these applications.
Logistics and Warehousing Systems: In logistics conveying systems and warehouse management systems, it connects sensors and controllers to achieve automatic identification, positioning, and handling of goods. The proximity sensors and IOlink devices are crucial for monitoring liquid levels in storage tanks, ensuring efficient inventory management. The SICK sensor connection plays a vital role in these systems.
Robotics Technology: It provides reliable connections for sensors and actuators in robotic systems, ensuring precise control and efficient operation of robots. The SICK sensor connection ensures that proximity sensors and IOlink devices are securely connected, enhancing operational safety and efficiency.
Usage Instructions
Installation and Wiring: Install in an environment with good ventilation, free of dust and corrosive gases, and avoid high temperatures, high humidity, or strong electromagnetic interference. Follow the wiring diagram in the product manual strictly to ensure the correct connection of power lines, signal lines, and motor lines. Use SICK connectors for optimal performance and reliability.
Parameter Settings: Adjust the device's electrical and communication parameters according to actual application requirements. For instance, adjust the measuring voltage based on the type and operating voltage of the sensor. Proximity sensors and IOlink devices may require specific voltage settings for optimal performance.
Maintenance and Inspection: Regularly check the device's appearance for damage, whether the heat sink is dusty, and if the fan is operating normally. Clean the dust from the heat sink and fan regularly to ensure the smooth operation of the cooling system. Ensure that the SICK connectors are intact and properly connected during these inspections.
Precautions
Environmental Conditions: Avoid using the product in environments with high temperatures, high humidity, or strong electromagnetic interference to prevent affecting its performance and lifespan.
Power Supply Requirements: Ensure stable power supply voltage to avoid damage to the equipment caused by voltage fluctuations. After the equipment is powered off, wait for a certain period before re-powering to prevent damage to the equipment.
Safe Operation: Avoid contact with live parts during equipment operation to ensure the safety of operators. When performing maintenance and inspection, disconnect the power supply and wait for the capacitor to discharge completely. Always use SICK connectors to ensure safe and reliable connections.
Common Questions FAQ
How to Ensure the Connection Stability of the Y8A36A2-C2A8000XXX Passive Distributor Box?
Importance of Connection Stability: In industrial automation systems, the stability of equipment connections directly affects the continuity of production and the reliability of the equipment. For the Y8A36A2-C2A8000XXX Passive Distributor Box, its connection stability is particularly important as it is responsible for connecting multiple sensors and actuators to the control system. Stable connections ensure the accuracy and real-time nature of signal transmission, preventing production interruptions and equipment failures due to connection issues.
Methods to Ensure Connection Stability: First, ensure that all connections meet the specified requirements. Check whether the tightening torques of each slot and relay line connection reach the specified 0.4Nm and 0.6Nm. Second, use high-quality SICK connectors and ensure that the cable shielding is well grounded to reduce electromagnetic interference. Additionally, choose the appropriate cable type and length, ensuring the cable's environmental adaptability, such as oil resistance and corrosion resistance.
Regular Inspection and Maintenance: Regularly check for signs of loosening or corrosion at the connection points. If problems are found, replace damaged parts in a timely manner and retighten the connection points. It is recommended to conduct routine inspections and maintenance every quarter, especially in harsh working environments like high humidity and high dust levels, where the maintenance cycle should be shortened. These measures can effectively ensure the connection stability of the Y8A36A2-C2A8000XXX Passive Distributor Box.
How to Use the LED Indicator Lights of the Distributor Box?
Function of LED Indicator Lights: The Y8A36A2-C2A8000XXX Passive Distributor Box is equipped with LED indicator lights to monitor the device's operating status in real-time. Each slot and relay line connection has an LED indicator light that displays the device's status through different colors and flashing modes. These indicator lights provide users with intuitive information about the device's operation, facilitating quick fault location.
Colors and Meanings of Indicator Lights: Typically, green indicates normal operation, red indicates faults or errors, and yellow indicates warnings or statuses that require attention. For example, if the LED indicator light of a slot shows red, it may mean that there is a problem with the connection of that slot or the sensor has failed. Users can quickly determine the specific location and cause of the fault by referring to the color and flashing mode of the indicator lights in conjunction with the device manual.
Using Indicator Lights for Fault Diagnosis: When the device malfunctions, you can quickly locate the problem by observing the status of the LED indicator lights. For instance, if the indicator light of a slot shows red, you can first check whether the connection of that slot is loose or damaged. If the issue persists, further inspect the connected sensor or actuator. These steps enable users to quickly diagnose and resolve issues, reducing equipment downtime.
How to Choose Cables Suitable for the Y8A36A2-C2A8000XXX Passive Distributor Box?
Criteria for Cable Selection: When selecting cables for the Y8A36A2-C2A8000XXX Passive Distributor Box, multiple factors need to be considered, including the type, length, shielding performance, and environmental adaptability of the cable. These factors directly impact the cable's performance and the stability of the SICK sensor connection.
Cable Type and Length: Choose the appropriate cable type and length based on actual application requirements. For example, if the equipment is installed at a distant location, longer cables are needed. At the same time, ensure that the cable type matches the connection type of the device, such as M8 or M12 connections. Additionally, selecting high-quality SICK connectors can enhance the stability and reliability of signal transmission.
Shielding Performance and Environmental Adaptability: In environments with electromagnetic interference, choose cables with good shielding performance to reduce signal interference. Additionally, consider the environmental adaptability of the cable, such as whether it is oil-resistant and corrosion-resistant, to ensure that the cable can work normally in harsh environments. These measures can effectively improve the performance of the cable and the stability of the SICK sensor connection.
What is the Maintenance Cycle?
Determination of Maintenance Cycle: The maintenance cycle should be determined based on the actual usage environment and working intensity of the equipment. Generally, it is recommended to conduct a routine inspection and maintenance every quarter. Regular maintenance ensures the normal operation of the equipment and reduces the occurrence of failures.
Routine Inspection Content: During routine inspections, check whether the equipment's appearance is damaged, whether the heat sink is dusty, and whether the fan is operating normally. At the same time, check whether all connection points are secure to ensure there is no loosening or corrosion. By conducting these checks, potential problems can be identified and addressed in a timely manner, extending the equipment's service life.
Maintenance in Special Circumstances: If the equipment is in a harsh working environment, such as high humidity or high dust levels, the maintenance cycle should be shortened appropriately. Additionally, if the equipment is operating abnormally or malfunctions, it should be inspected and maintained promptly. These measures ensure that the equipment can operate stably in complex environments.
How Does the Protection Rating of the Device Ensure Equipment Safety?
Function of Protection Rating: The protection rating of the Y8A36A2-C2A8000XXX Passive Distributor Box is IP65/IP67, which means it can effectively prevent dust ingress and water jets. This high protection rating ensures the reliability and safety of the SICK sensor connection in harsh environments.
Specific Meaning of Protection Rating: IP65 indicates that the equipment can completely prevent dust ingress and withstand water jets from all directions. IP67 indicates that the equipment can be immersed in water for a short period without being damaged. These protection ratings provide strong protection for the equipment, enabling it to operate stably in various harsh environments.
Protection Rating for Equipment Safety: Equipment with a high protection rating can reduce failures and damages caused by environmental factors, extending the equipment's service life. At the same time, it also enhances the safety and reliability of the sick sensor connection in complex environments. These measures effectively ensure the safe operation of the equipment.
How to Avoid Electromagnetic Interference for the Y8A36A2-C2A8000XXX Passive Distributor Box?
Harm of Electromagnetic Interference: Electromagnetic interference can cause unstable equipment operation and even erroneous actions. In industrial environments, electromagnetic interference is a common issue that needs to be avoided.
Methods to Avoid Electromagnetic Interference: First, ensure that the equipment is properly grounded in accordance with national and local electrical safety regulations. Second, use shielded cables for connections and ensure that the cable shielding is well grounded. Additionally, avoid placing signal lines close to power lines to reduce electromagnetic interference. These measures can effectively reduce the impact of electromagnetic interference on the SICK sensor connection.
Electromagnetic Compatibility of the Equipment: The Y8A36A2-C2A8000XXX Passive Distributor Box itself has good electromagnetic compatibility, with built-in EMC filters that meet relevant electromagnetic compatibility standards. This helps to reduce the electromagnetic interference of the equipment to the surrounding environment and enables it to resist external electromagnetic interference. These measures effectively ensure the stable operation of the SICK sensor connection.
Can the Number of Slots in the Box Be Expanded?
Limitation of Slot Number: The Y8A36A2-C2A8000XXX Passive Distributor Box has 6 slots, which is a fixed parameter determined at the time of equipment design. Therefore, the number of slots cannot be directly expanded.
Methods for Expanding Connections: If more sensors and actuators need to be connected, this can be achieved by using multiple passive distributor boxes. Connect multiple devices together through relay lines to form a larger connection network. This approach can meet the connection needs of more devices.
Design of Connection Network: When designing the connection network, ensure that each device's connection meets the specified requirements and consider signal transmission delay and interference issues. Plan the layout of the connection network reasonably to ensure the stable operation of the system. These measures can effectively expand the device's connection capabilities.
Can the Measuring Voltage Range of the Y8A36A2-C2A8000XXX Passive Distributor Box Be Adjusted?
Measuring Voltage Range: The measuring voltage range of the Y8A36A2-C2A8000XXX Passive Distributor Box is ≤24V DC, which is a fixed parameter determined at the time of equipment design. In practical applications, users can adjust the measuring voltage according to the working voltage of the sensor.
Methods for Adjusting Measuring Voltage: When adjusting the measuring voltage, follow the specifications in the sensor manual. Generally, the measuring voltage can be adjusted through the device's parameter setting function. During the adjustment process, ensure that the voltage setting complies with the sensor's working range. These measures ensure the compatibility of the equipment with the sensor.
Precautions: When adjusting the measuring voltage, pay attention to the stability and accuracy of the power supply. Avoid overvoltage or undervoltage that may damage the sensor and the equipment. At the same time, ensure that the adjusted voltage setting meets the system's operational requirements. These measures effectively ensure the stable operation of the SICK sensor connection.
Is the Current-Carrying Capacity of the Y8A36A2-C2A8000XXX Passive Distributor Box Sufficient?
Assessment of Current-Carrying Capacity: The current-carrying capacity of the Y8A36A2-C2A8000XXX Passive Distributor Box is 2A, which is a fixed parameter determined at the time of equipment design. When assessing whether the current-carrying capacity is sufficient, consider the actual current demand in the application.
Calculation of Current Demand: Calculate the total current demand of the system based on the number and type of connected sensors and actuators. If the total current demand exceeds the device's current-carrying capacity, it may lead to equipment overload, affecting the equipment's performance and lifespan. These measures ensure the stable operation of the SICK sensor connection.
Solutions: If the system's current demand exceeds the device's current-carrying capacity, this can be resolved by increasing the number of devices or selecting devices with higher current-carrying capacity. At the same time, plan the system connections reasonably to ensure even current distribution. These measures effectively meet the system's current demand.
What is the Service Life of the Y8A36A2-C2A8000XXX Passive Distributor Box?
Factors Affecting Service Life: The service life of the Y8A36A2-C2A8000XXX Passive Distributor Box is influenced by various factors, including the quality of the equipment, usage environment, and maintenance conditions. These factors directly impact the equipment's performance and lifespan.
Service Life Under Normal Use: With proper use and maintenance, the equipment's service life can reach several years. High-quality manufacturing processes and robust structural design enable the equipment to operate stably in harsh industrial environments for a long time. These measures ensure the stable operation of the SICK sensor connection.
Methods to Extend Service Life: To extend the equipment's service life, ensure correct installation and use of the equipment. Conduct regular maintenance and inspections and replace damaged parts in a timely manner. At the same time, avoid operating the equipment in harsh environments such as high temperatures, high humidity, and strong electromagnetic interference. These measures effectively extend the equipment's service life.
