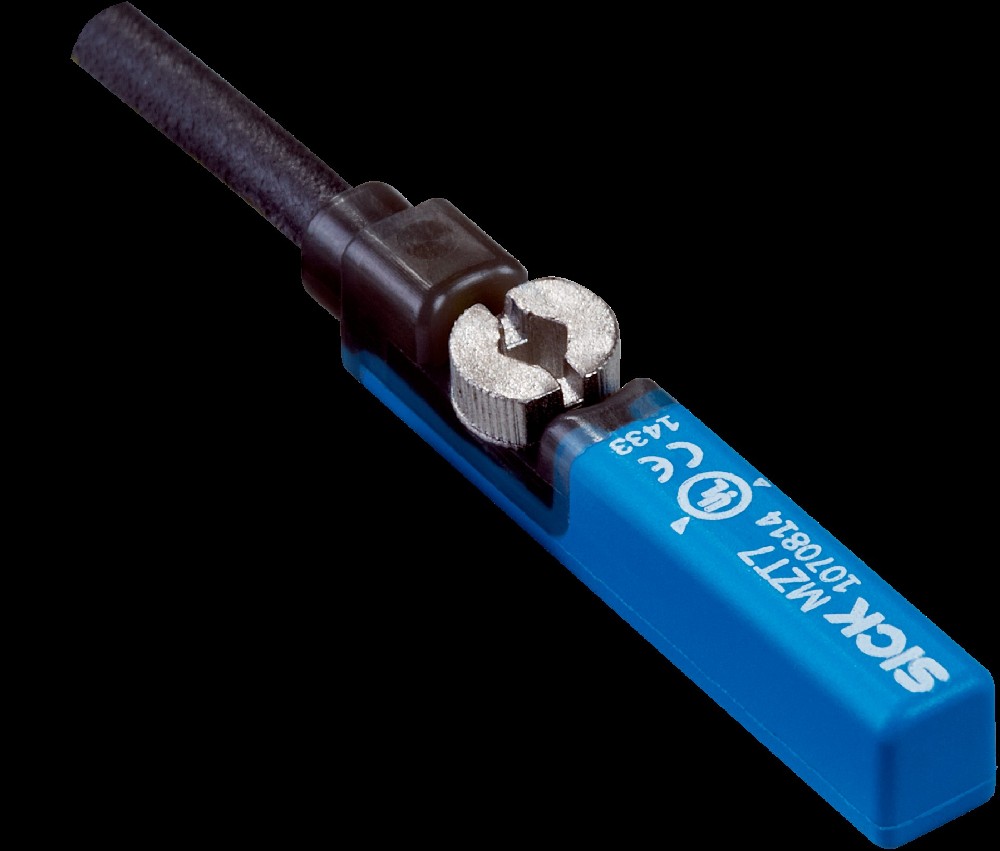

The MZT7-03VPS-KP0 is a high-accuracy proximity sensor manufactured by SICK,featuring a PNP sensor output function.It boasts fast response times,easy installation,and a high protection rating,making it suitable for complex industrial environments.Widely used in industrial automation,this sensor employs advanced GMR technology to achieve precise proximity detection and is ideal for various industrial applications,such as cylinder position detection and automated production line monitoring.
Product Specifications
Model：MZT7-03VPS-KP0
Output Type：PNP
Supply Voltage：10 V DC to 30 V DC
Switching Frequency：1,000 Hz
Response Sensitivity：Typical 3 mT
Hysteresis：Typical<0.8 mT
Repeatability：≤0.1 mT
Protection Rating：IP65/IP67
Operating Temperature Range：-30°C to+80°C
Connection：Cable with M8 plug,3-pin,suitable for drag chains,length 0.3 m.
Product Features
High-Precision Detection：Utilizing GMR technology,it provides precise position detection for high-accuracy industrial applications.
Easy Installation：The sensor can be directly mounted into a cylinder with a T-slot and secured with a simple twist,requiring no additional tools.
Robust and Durable：With an IP67-rated housing,it resists dust and water ingress,making it ideal for harsh industrial conditions.
Fast Response：A switching frequency of up to 1,000 Hz ensures rapid response to target proximity signals.
LED Status Indicator：Equipped with an LED light to visually display the sensor's operating status.
Applications
Cylinder Position Detection：Used in automated production lines to detect the position of cylinder pistons,ensuring precise equipment operation.
Logistics and Conveying Systems：Detects the presence and position of objects in sorting and conveying systems,enhancing automation levels.
Machine Tool and Assembly Lines：Monitors tool or component proximity in machine tools and automated assembly lines to ensure machining accuracy.
Installation and Usage Instructions
Installation and Wiring
Installation Environment：Choose a dust-free environment with minimal electromagnetic interference to ensure sensor performance and longevity.
Wiring Requirements：Follow the product manual strictly to ensure correct connections of power and signal lines.
Grounding Protection：Ensure proper grounding of the equipment to meet electrical safety standards.
Parameter Settings
Sensitivity Adjustment：Adjust the sensor's sensitivity according to application requirements to accommodate different detection distances.
Hysteresis Setting：Set an appropriate hysteresis value to prevent false triggers caused by environmental interference.
Maintenance and Inspection
Regular Inspection：Check for any damage to the sensor's appearance and loose connections.
Cleaning：Regularly clean dust and dirt from the sensor's surface to ensure proper operation.
Precautions
Environmental Conditions：Avoid using in high-temperature,high-humidity,or strong electromagnetic interference environments.
Power Requirements：Ensure stable power supply voltage to prevent damage to the sensor from voltage fluctuations.
Safety Operations：Avoid contact with live parts during equipment operation to ensure operator safety.
Material and Manufacturing Proces
The MZT7-03VPS-KP0 proximity sensor features a high-quality engineering plastic housing,which not only provides excellent mechanical strength but also resists common chemical corrosion in industrial environments.The core component employs high-precision GMR technology,which quickly responds to magnetic field changes to achieve precise position detection.The sensor's cable is made of PUR material,offering flexibility and chemical resistance,making it suitable for harsh conditions.：
In terms of manufacturing,SICK uses precision injection molding to ensure the housing's seal and durability.The electronic components inside the sensor are rigorously selected and tested to ensure long-term stability and reliability.This advanced manufacturing process enhances product performance and extends its lifespan.
Additional Features
Beyond its high-precision detection capabilities,the MZT7-03VPS-KP0 offers several additional features.For example,its tail is designed with a double-wing structure to securely grip both sides of the T-slot,preventing the sensor from sliding or falling out.The sensor also features a"drop-in"installation method on top,allowing quick installation without disassembling the cylinder,significantly simplifying the process.
The sensor is equipped with an LED status indicator light to visually display its operating status,making it easy for users to quickly determine whether the device is functioning properly.Additionally,the electrical connection uses an M8 plug,compatible with drag chains and suitable for applications in frequently moving equipment.
Product Advantages
The MZT7-03VPS-KP0 proximity sensor offers significant advantages.First,its GMR technology enables high-precision magnetic field detection,maintaining stable performance even in complex industrial environments.Second,the sensor's installation is simple and quick,requiring only a quarter turn to secure it,saving significant installation time.
Its IP67 protection rating effectively resists dust and water ingress,making it suitable for humid or dusty environments.With an operating temperature range of-30°C to+80°C,it can withstand various extreme conditions.Lastly,as a global leading sensor manufacturer,SICK ensures high performance and reliability through strict quality control.
After-Sales Service
SICK provides comprehensive after-sales support for the MZT7-03VPS-KP0.All products undergo strict quality inspection to ensure that users receive genuine,high-quality items.SICK has a global after-sales network capable of providing timely technical support and repair services.：
In China,SICK's wholly-owned subsidiary,SICK China,offers localized after-sales services.Users can obtain technical support through official channels if they encounter any issues.Additionally,SICK provides product warranty services to ensure users have a worry-free experience.：
Frequently Asked Questions(FAQ)
1.How does the PNP output function of the MZT7-03VPS-KP0 proximity sensor work?
PNP Output Characteristics：When the sensor detects a target object,the output terminal conducts,allowing current to flow from the sensor to the PLC input.This output type is suitable for most industrial control systems and ensures stable signal transmission.
Connection Method：Connect the sensor's output terminal to the PLC input,the positive power supply to the PLC's power terminal,and the negative power supply to the sensor's common terminal.Ensure correct wiring to avoid short circuits or reverse connections,which could damage the sensor or PLC.
Application Scenarios：PNP output sensors are widely used in cylinder position detection and automated production line monitoring,enhancing system automation.
2.How can the environmental adaptability of the MZT7-03VPS-KP0 proximity sensor be optimized?
Environmental Optimization：The sensor's IP67 rating effectively resists dust and water ingress.In humid or dusty environments,use shielded cables and ensure proper grounding of the cable's shielding layer.
Installation Environment：Install in a well-ventilated area with minimal electromagnetic interference.Avoid high-temperature,high-humidity,or strong electromagnetic interference zones.
Maintenance Suggestions：Regularly inspect the sensor's housing and cables for damage.Replace any damaged parts promptly to prevent performance degradation due to environmental factors.
3.Does the PNP output of the MZT7-03VPS-KP0 proximity sensor support long-distance transmission?
Transmission Characteristics：PNP output sensors support long-distance signal transmission,but signal attenuation must be considered.Use shielded cables and ensure proper grounding of the shielding layer to maintain signal stability.
Maximum Transmission Distance：Under standard conditions,PNP output sensors can transmit signals up to 30 meters.For longer distances,signal amplifiers or repeaters are recommended.
Precautions：Ensure stable power supply voltage to prevent signal instability due to voltage drop during long-distance transmission.
4.How to select the right PNP proximity sensor model?
Application Requirements：Choose a sensor model based on the specific application.For high-precision detection,models like the MZT7-03VPS-KP0 are recommended.
Environmental Adaptability：Consider the sensor's protection rating and operating temperature range to ensure it can function reliably in the intended environment.
Advantages of PNP Output：PNP output sensors are suitable for most industrial control systems and ensure stable signal transmission.When selecting,also consider the sensor's response time and detection distance.
5.How to connect the PNP output of the MZT7-03VPS-KP0 proximity sensor to a PLC?
Connection Method：Use an M8 plug that supports drag chains.Connect the sensor's output terminal to the PLC input,the positive power supply to the PLC's power terminal,and the negative power supply to the sensor's common terminal.
Wiring Requirements：Follow the product manual strictly to ensure correct connections of power and signal lines.Ensure proper grounding of the equipment to meet electrical safety standards.
Precautions：Avoid short circuits or reverse connections during wiring,which could damage the sensor or PLC.
6.How to resolve false triggering issues with the MZT7-03VPS-KP0 proximity sensor?
Causes of False Triggering：False triggering is usually caused by electromagnetic interference or overly high sensitivity settings.
Solution：Reduce the sensitivity,increase the hysteresis value,or use shielded cables.Ensure the stability of the PNP output signal to prevent false triggering caused by signal interference.
Environmental Optimization：Install shielding devices around the sensor to minimize external interference.
7.What is the lifespan of the MZT7-03VPS-KP0 proximity sensor?
Lifespan：According to SICK's data,the Mean Time to Failure(MTTF)of this sensor is 1,300 years.
Factors Affecting Lifespan：The lifespan is influenced by environmental conditions,frequency of use,and maintenance practices.
Maintenance Suggestions：Regularly inspect the sensor's operating condition and replace any damaged components promptly.
8.What are the installation requirements for the MZT7-03VPS-KP0 proximity sensor?
Installation Position：The sensor should be installed in the T-slot of the cylinder,with the detection face pointing towards the cylinder piston.
Installation Environment：Choose a well-ventilated area with minimal electromagnetic interference.Avoid installing in high-temperature,high-humidity,or strong electromagnetic interference zones.
Installation Method：Use the top"drop-in"installation method,which allows quick installation without disassembling the cylinder.
9.How should the electrical connections for the MZT7-03VPS-KP0 proximity sensor be set up?
Connection Method：Use an M8 plug that supports drag chains.
Wiring Requirements：Follow the product manual strictly to ensure correct connections of power and signal lines.
Grounding Protection：Ensure proper grounding of the equipment to meet electrical safety standards.
10.What is the response time of the MZT7-03VPS-KP0 proximity sensor?
Response Time：The sensor has a switching frequency of 1,000 Hz,with a response time typically in the millisecond range.
Optimization Methods：Adjust the sensitivity and hysteresis parameters to optimize response time for high-precision applications.
Application Scenarios：This fast-response sensor is ideal for industrial automation applications that require high precision and rapid detection.
