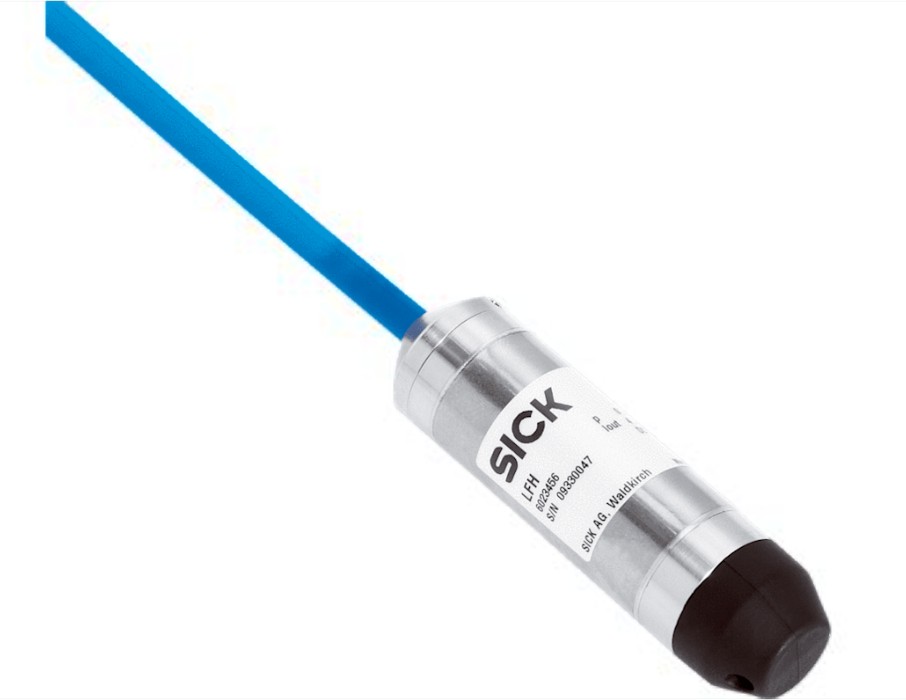

The LFH-SB1X6G1AS30SZ0 is a hydrostatic pressure sensor from SICK, specifically designed for measuring water levels in industrial applications. This water level pressure sensor provides high precision and reliability, ideal for hydrostatic sensor use in process control and automation.
Product Specifications
Measurement Range: 0 bar to 1.6 bar.
Output Signal: 4 mA to 20 mA, 2-wire system.
Supply Voltage: 10 V DC to 30 V DC.
Cable Length: 30 meters, made of PUR (FEP available as an option).
Ambient Temperature: -10°C to +50°C.
Protection Class: IP68, suitable for harsh industrial environments.
Accuracy: Nonlinearity ≤ ±0.2%, Accuracy ≤ ±0.5%, Non-repeatability ≤ ±0.1%.
Product Features
High-Precision Measurement: Advanced sensor technology ensures accurate and stable measurements with this hydrostatic pressure sensor.
Durability: The stainless steel housing and IP68 protection class make it suitable for use in humid and corrosive environments, ensuring long-lasting performance as a water level pressure sensor.
Long Lifespan: The Mean Time To Failure (MTTF) is up to 403 years, ensuring a long operational life for the hydrostatic sensor.
Flexible Installation Options: Various mounting accessories are available to meet different application needs for the hydrostatic pressure sensor.
Application Scenarios
The LFH-SB1X6G1AS30SZ0 is suitable for a wide range of industrial applications, including but not limited to:
Level Monitoring: Real-time monitoring of liquid levels in tanks and water reservoirs using a hydrostatic pressure sensor.
Pressure Control: Monitoring pressure in hydraulic and cooling systems to ensure stable operation, using a water level pressure sensor.
Environmental Monitoring: Measuring liquid pressure in wastewater treatment and chemical industries with the hydrostatic sensor.
Installation and Usage Instructions
Installation:
Ensure the installation environment is free from strong electromagnetic interference to maintain measurement accuracy for the hydrostatic pressure sensor.
Secure the sensor with appropriate mounting accessories to ensure stability.
Wiring:
Follow the manual to connect power and signal wires properly, ensuring good grounding to protect the water level pressure sensor.
Use shielded cables for signal lines to minimize electromagnetic interference.
Calibration and Maintenance:
Regularly calibrate the hydrostatic sensor to maintain measurement accuracy.
Clean the sensor surface and cables to prevent dust and debris from affecting performance.
Precautions
Environmental Conditions: Avoid prolonged use in high-temperature, high-humidity, or highly corrosive environments that could damage the hydrostatic pressure sensor.
Power Supply Requirements: Ensure a stable supply voltage to prevent damage from voltage fluctuations.
Safe Operation: Always disconnect the power supply before performing maintenance.
Frequently Asked Questions (FAQ)
How to calibrate the hydrostatic pressure sensor?
Ensure the sensor is installed correctly and the environment is stable before calibration.
Use a standard pressure source for calibration and adjust parameters according to the manual.
What is the measurement accuracy of the LFH-SB1X6G1AS30SZ0?
The sensor has nonlinearity ≤ ±0.2%, accuracy ≤ ±0.5%, and non-repeatability ≤ ±0.1%, making it highly reliable in industrial applications as a hydrostatic pressure sensor.
Is this hydrostatic sensor suitable for harsh environments?
The sensor’s IP68 protection class allows it to be used in humid and corrosive environments. However, avoid prolonged exposure to extreme temperatures or strong electromagnetic interference.
How to choose the right cable material for a water level pressure sensor?
The standard PUR cable is suitable for most industrial environments. For special needs, FEP cable is available as an option.
What is the lifespan of the LFH-SB1X6G1AS30SZ0 sensor?
The Mean Time To Failure (MTTF) is up to 403 years. Regular maintenance and calibration can further extend its service life.
Can the output signal of this hydrostatic pressure sensor be adjusted?
The output signal is 4 mA to 20 mA and can be adjusted according to actual needs. Other options include 0 V to 10 V or 0 V to 5 V outputs based on application requirements.
What should be noted during the installation of the LFH-SB1X6G1AS30SZ0?
Ensure the installation environment is free from strong electromagnetic interference.
Use appropriate mounting accessories to secure the sensor.
How to clean and maintain the hydrostatic sensor?
Regularly clean the sensor surface and cables.
Avoid using corrosive cleaning agents.
What is the temperature coefficient of this water level pressure sensor?
Zero-point average temperature coefficient ≤ 0.2% of range per 10 K.
Span average temperature coefficient ≤ 0.2% of range per 10 K.
Does the LFH-SB1X6G1AS30SZ0 support extended functions?
The sensor supports various extended functions, such as pressure compensation devices. Enhanced versions are available based on specific needs.
