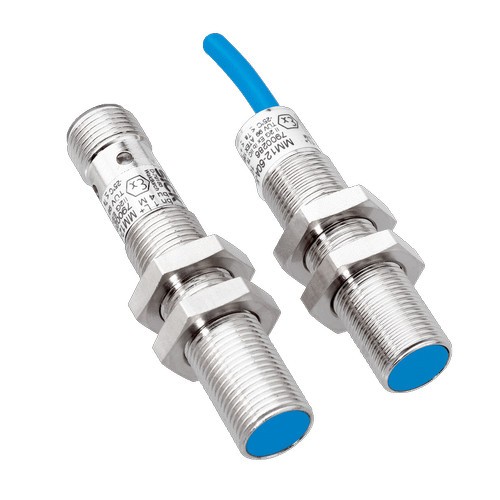

The MM12-70A-N-ZW0 magnetic sensor, a non-contact sensor and industrial proximity sensor, is manufactured by SICK and belongs to the MMN series. Specifically designed for industrial automation and detection applications, it features an explosion-proof design, making it suitable for harsh and hazardous environments. This sensor features an M12 threaded dimension with a diameter of 12 mm and a sensing range of 5 mm to 70 mm. Its housing is rated IP67, making it suitable for harsh industrial environments. The sensor supports NAMUR-standard switching output, ideal for various non-contact detection scenarios.
Product Specifications
Sensing Range: 5 mm to 70 mm
Response Sensitivity: ≤0.7 mT
Switching Frequency: 1,000 Hz
Electrical Specifications: DC 2-wire
Connection Type: 2-meter long 2-core cable
Housing Material: Nickel-plated brass
Protection Rating: IP67
Operating Temperature Range: -25°C to +70°C
Product Features
Non-contact Operation: This design avoids interference from dirt, dust, and vibration, extending the sensor's lifespan.
High Sensing Range: It ensures reliable switching even when there are tolerances in the target position.
Wide Applicability: It can detect permanent magnets through non-ferromagnetic materials like stainless steel, aluminum, plastic, or wood.
Explosion Proof Proximity Sensor(Explosion-proof Design): Compliant with NAMUR standards, it is suitable for explosive environments.
Applications
:The MM12-70A-N-ZW0 magnetic non contact sensor，an advanced industrial proximity sensor, is suitable for a variety of industrial automation scenarios, including
Mechanical Manufacturing: Detecting the position and movement of mechanical components.
Logistics and Warehousing: Positioning and control in automated conveying systems.
Food Processing: Ensuring efficient operation of food processing equipment through non-contact detection.
Automotive Manufacturing: Detecting the position of parts on the production line to improve efficiency.
Installation and Wiring Instructions
Installation Environment: Choose a dust-free, non-corrosive gas, and low electromagnetic interference environment to ensure proper heat dissipation.This is particularly important for maintaining the performance of the industrial proximity sensor.
Wiring Requirements: Follow the wiring diagram in the product manual to ensure correct connections of power and signal lines.
Grounding Protection: Ensure proper grounding of the device in accordance with national and local electrical safety standards.
Parameter Settings
Adjusting Sensing Range: Adjust the sensing distance according to the actual application needs to achieve optimal detection results.
Electrical Parameter Calibration: Calibrate the response sensitivity and switching frequency based on the operating environment and load conditions.This ensures the explosion-proof proximity sensor operates efficiently in various settings.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Supply Requirements: Ensure stable voltage to prevent damage to the sensor. This is especially important for the explosion-proof proximity sensor to maintain its reliability.
Safety Operations: Avoid contact with live parts during operation to ensure personnel safety. This precaution is vital when working with the industrial proximity sensor.
FAQs and Answers
How to Adjust the Sensing Distance?
Adjust the sensing distance based on the size and position of the target object in the actual application. Modify the sensor's response sensitivity and installation position to achieve the best sensing effect. Ensure no metal or other interfering objects are between the sensor and the target. Consider the impact of temperature and humidity on the sensing distance. After adjustment, conduct multiple tests to ensure stability and reliability in practical applications.
How to Ensure Electrical Connection Safety for MM12-70A-N-ZW0?
The sensor uses a 2-wire connection with a 2-meter long 2-core cable. Ensure the cable insulation is intact to prevent short circuits or leakage. Use shielded cables and ground the shielding layer to reduce electromagnetic interference. Conduct electrical tests after installation to check for secure connections and proper current flow.
What is the Protection Rating ?
The sensor has an IP67 protection rating, meaning it is dust-tight and can withstand short-term immersion in water without damage. This rating makes it suitable for harsh industrial environments, such as high humidity and dusty areas. Regularly inspect the housing for damage to maintain its protection rating.
How to Choose the Installation Location?
Select a dust-free, non-corrosive gas, and low electromagnetic interference environment. Avoid high-temperature, high-humidity, or high-vibration areas. Ensure the sensor is oriented correctly with the sensing face pointing towards the target object and within the detection range. Consider heat dissipation needs and avoid installing in enclosed or poorly ventilated spaces.
How to Perform Electrical Testing for MM12-70A-N-ZW0?
Before testing, ensure the sensor is properly installed and connected. Use a multimeter to check the cable continuity and resistance, ensuring it does not exceed 50Ω. Test the switch function by moving a magnet near the sensing face and verifying the output signal meets expectations.
How Does the Short-Circuit Protection Work for MM12-70A-N-ZW0?
The sensor has a short-circuit protection feature that automatically cuts off the output when a short circuit occurs, preventing damage. This protection complies with NAMUR standards, ensuring safety for the sensor and connected circuits. The sensor will resume normal operation once the short circuit is resolved.
How Does Temperature Drift Affect Detection Accuracy for MM12-70A-N-ZW0?
The sensor's temperature drift is ±10%, which means the sensing distance may slightly vary with temperature changes. To minimize this impact, use the sensor in a stable temperature environment. Regular calibration of the sensing distance is recommended when operating in extreme temperatures.
What Are the Shock and Vibration Resistance?
The sensor has a shock resistance of 30g and a vibration resistance of 10 to 55Hz with an amplitude of 1mm. These capabilities allow it to operate stably in high-vibration industrial environments. Minimize external vibration impacts during installation to extend its lifespan.
How Does the Wire-Break Protection Work for MM12-70A-N-ZW0?
The sensor features wire-break protection, which immediately detects and halts operation when a cable connection is interrupted. This prevents misoperations or equipment damage due to broken cables. The sensor resumes normal operation once the connection is restored.
How Does the Reverse Polarity Protection Work?
The sensor has reverse polarity protection, preventing damage even if the power supply is connected backward. This feature ensures safety during installation and maintenance. However, attention to polarity during connection is still necessary to avoid unnecessary issues.
The above content is based on the product data page provided by SICK.
