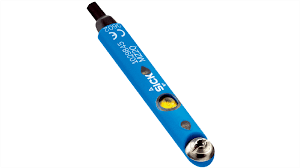

The MZ2Q-TSLPSKU0 is a SICK non-contact magnetic sensor designed specifically for the industrial automation sector.As a four-wire sensor,it boasts excellent electrical performance and stability,capable of withstanding complex industrial environments and providing reliable signal support for automated equipment.Utilizing advanced magnetic induction technology,it can detect objects with precision without any physical contact,making it ideal for applications such as cylinder position detection.
Product Specifications
Detection Range:0 mm to 50 mm,meeting the detection needs of various cylinder strokes.
Electrical Specifications:DC 4-wire,supply voltage of 15 V DC to 30 V DC,with a typical current consumption of 25 mA.
Output Function:2 x PNP normally open contacts,ensuring compatibility with a wide range of control systems.
Protection Rating:IP67,suitable for harsh industrial environments.
Operating Temperature:–20°C to+75°C,adapting to a broad range of environmental conditions.
Connection:M12 four-pin plug,with optional cable lengths.
Product Features
Non-Contact Detection:Utilizing non-contact sensing technology,it eliminates mechanical wear and extends the sensor's service life.
High-Precision Magnetic Induction:With a typical hysteresis of only 1 mT and repeatability of≤0.1 mT,this magnetic sensor ensures stable and accurate detection signals.
Four-Wire Design:The four-wire sensor design provides stable signal transmission and power supply,minimizing the impact of voltage drop on performance.
User-Friendly Operation:Equipped with a teach function,users can easily set switching points via the control panel,simplifying installation and commissioning.
Strong Environmental Adaptability:With reverse polarity protection,short-circuit protection,and surge protection,it can operate stably in complex electromagnetic environments.
Applications
Cylinder Position Detection:In automated production lines,it detects the position of cylinder pistons to achieve precise automated control.
Mechanical Automation:Suitable for position detection in robots,conveyors,and other equipment,enhancing operational efficiency and reliability.
Harsh Environment Applications:Thanks to its high protection rating and wide operating temperature range,it can work reliably in environments with oil,dust,and other harsh conditions.
Installation and Wiring
Installation Location:Install in an environment free from strong magnetic interference and corrosive gases,ensuring coaxial alignment with the cylinder.
Wiring Requirements:Follow the instructions carefully to connect power and signal lines correctly,avoiding short circuits or poor connections.
Parameter Settings
Teach Function:Use the control panel to teach and adjust switching points 1 and 2 to meet different detection needs.
Electrical Parameter Calibration:Adjust electrical parameters based on actual applications to ensure the sensor's output matches the control system.
Maintenance and Inspection
Regular Inspection:Check for any damage to the sensor's appearance and wear on the cables,ensuring secure connections.
Cleaning and Maintenance:Regularly clean dust and oil from the sensor's surface to avoid affecting detection accuracy.
Precautions
Environmental Conditions:Avoid using in environments with high temperatures,high humidity,or strong magnetic interference to prevent performance issues.
Electrical Connection:Ensure stable power supply voltage to avoid damage to the sensor from voltage fluctuations.
Safe Operation:Disconnect power before performing maintenance or inspection to ensure operator safety.
Materials and Manufacturing Process
The MZ2Q-TSLPSKU0 magnetic sensor is crafted from high-quality materials and advanced manufacturing processes to ensure exceptional performance and reliability.The sensor's housing is made from a combination of plastic and aluminum,offering excellent mechanical strength and corrosion resistance while keeping the device lightweight for easy installation and maintenance.The manufacturing process involves precision injection molding and metal machining to guarantee dimensional accuracy and appearance quality.The magnetic sensing element inside the sensor is specially encapsulated to maintain stable performance in complex industrial environments.This non-contact magnetic sensor is designed to operate reliably over the long term in harsh conditions such as high temperatures,high humidity,and strong magnetic fields.:
Additional Features
The MZ2Q-TSLPSKU0 magnetic sensor not only offers basic non-contact detection but also comes with several additional features to meet diverse application needs.First,it supports a teach function,allowing users to easily set switching points via the control panel without complex programming or debugging.Second,it features a four-digit LED display that shows real-time operating status and parameter settings,facilitating user monitoring and adjustment.Additionally,the sensor includes intelligent diagnostic capabilities to automatically detect and display fault codes,helping users quickly identify and resolve issues.These integrated features make the MZ2Q-TSLPSKU0 magnetic sensor more flexible and efficient in industrial automation applications,especially in scenarios requiring high-precision,four-wire sensors.:
Product Advantages
The MZ2Q-TSLPSKU0 magnetic sensor demonstrates significant advantages in multiple aspects.First,as a non-contact sensor,it effectively eliminates mechanical wear and contact contamination,significantly extending the sensor's service life.Second,its magnetic induction technology provides high-precision and stable detection capabilities,maintaining reliable performance even in complex industrial environments.The four-wire sensor design ensures stable signal transmission and interference resistance,reducing the impact of voltage drop on performance.The sensor also offers high adaptability,operating within a wide temperature range of-30°C to 80°C and achieving an IP67 protection rating to prevent dust and water ingress.These advantages make the MZ2Q-TSLPSKU0 magnetic sensor an ideal detection solution in the industrial automation field.:
After-Sales Service
To ensure users can fully utilize the MZ2Q-TSLPSKU0 magnetic sensor and maximize its performance,SICK offers comprehensive after-sales support.First,the company has a professional technical support team that provides consultation and installation guidance.Users can contact the support team at any time for prompt solutions to any issues encountered.Second,SICK offers regular maintenance and calibration services to keep the sensor in optimal working condition.Additionally,the company supplies spare parts to address potential equipment damage or aging.Through these comprehensive after-sales measures,SICK aims to provide full support to users,ensuring worry-free use of the MZ2Q-TSLPSKU0 magnetic sensor.:
Frequently Asked Questions(FAQ)
1.What is the detection principle of the MZ2Q-TSLPSKU0 non-contact sensor?
The non-contact sensor detects objects through magnetic induction technology.It senses the position of the target object by detecting changes in the magnetic field,without the need for direct contact.This detection method not only extends the sensor's service life but also reduces errors caused by mechanical wear.In practical applications,the detection principle is based on the magnetic induction law.:
When the magnetic field strength changes,the sensor's internal sensing element generates a corresponding electrical signal,enabling precise detection of the target object's position.:
Compared to traditional contact sensors,non-contact sensors offer higher reliability and precision,especially for automated equipment requiring frequent motion.:
2.How to ensure the detection accuracy of the MZ2Q-TSLPSKU0 magnetic sensor?
The detection accuracy of the magnetic sensor is influenced by several factors.First,ensure that the magnetic field strength between the sensor and the target object is appropriate.Both excessively strong and weak magnetic fields can affect detection accuracy.
Second,during installation,ensure coaxial alignment between the sensor and the cylinder to prevent abnormal magnetic field changes due to installation errors.Additionally,regularly calibrate the sensor's electrical parameters to ensure stable output signals.
Finally,avoid placing strong magnetic materials near the sensor to prevent interference with the magnetic field distribution and ensure accurate detection.
3.What are the advantages of the MZ2Q-TSLPSKU0 four-wire sensor?
Compared to two-wire or three-wire sensors,the four-wire sensor offers more stable signal transmission and power supply.Its four-wire design effectively reduces voltage drop,ensuring stable performance even during long-distance transmission.
Moreover,the four-wire sensor's electrical connections are more flexible,adapting to different control systems and power environments,enhancing device compatibility.
In complex industrial environments,the four-wire sensor exhibits stronger interference resistance,minimizing the impact of electromagnetic interference on detection signals.
4.What is the protection rating of the MZ2Q-TSLPSKU0 magnetic sensor?
The MZ2Q-TSLPSKU0 magnetic sensor has an IP67 protection rating.This means it can completely prevent dust ingress and withstand short-term water immersion without damage.
The IP67 rating enables it to operate reliably in harsh industrial environments,such as those with dust,oil,or moisture.
Additionally,the sensor's robust housing design can withstand mechanical impacts and vibrations,further enhancing its reliability in industrial applications.
5.How to set the switching points of the MZ2Q-TSLPSKU0 non-contact sensor?
Use the sensor's control panel to teach and adjust the switching points.First,install the sensor in the target position,then set switching points 1 and 2 using the teach function.
During setup,ensure coaxial alignment between the sensor and the cylinder and adjust the tolerance range of the switching points according to actual application needs.
After setting,confirm the success of the setup through LED indicators to ensure accurate signal output.
6.What is the voltage drop of the MZ2Q-TSLPSKU0 four-wire sensor?
The voltage drop of the MZ2Q-TSLPSKU0 four-wire sensor is≤2.2 V.This low voltage drop ensures stable performance even during long-distance transmission.
In practical applications,low voltage drop reduces power loss and improves the overall efficiency of the system.
Additionally,the four-wire design effectively compensates for voltage drop caused by wire resistance,further enhancing the sensor's stability and reliability.
7.What is the ambient temperature range of the MZ2Q-TSLPSKU0 magnetic sensor?
The ambient temperature range of the MZ2Q-TSLPSKU0 magnetic sensor is–20°C to+75°C.This wide temperature range allows it to operate reliably in various environments.
In low-temperature conditions,the sensor's materials and electronic components are specially designed to maintain good performance.
In high-temperature environments,the sensor's heat dissipation design and protection rating effectively prevent overheating and ensure normal operation.
8.How to maintain the MZ2Q-TSLPSKU0 non-contact sensor?
Regularly inspect the sensor for any signs of damage and check for cable wear.Clean dust and oil from the sensor's surface to avoid affecting detection accuracy.
Ensure that electrical connections are secure,with good contact for power and signal lines.Regularly calibrate the sensor's electrical parameters to ensure stable output signals.:
During maintenance,avoid applying excessive mechanical shock to the sensor to maintain the integrity of its housing and internal components.
9.How to maintain the MZ2Q-TSLPSKU0 four-wire sensor to ensure long-term stable operation?
Maintenance is key to ensuring the long-term stable operation of the four-wire sensor.First,regularly inspect the electrical connections to ensure that power and signal lines are securely connected.Avoid signal interruption or voltage fluctuations due to poor contact.Although the four-wire design offers strong interference resistance,cable wear and aging should still be monitored in complex industrial environments.It is recommended to use shielded cables and ensure proper grounding to minimize the impact of electromagnetic interference on sensor performance.Additionally,regularly clean dust and oil from the sensor's surface,especially when used in harsh conditions,as these contaminants can affect detection accuracy and response speed.
During maintenance,pay attention to the installation environment of the sensor.The four-wire sensor should be installed away from strong magnetic interference and mechanical vibrations to ensure normal operation.For the MZ2Q-TSLPSKU0 non-contact magnetic sensor,which relies on magnetic induction for detection,changes in the surrounding magnetic field can affect its performance.It is advisable to keep it away from other strong magnetic devices during installation and regularly check that the magnetic field strength is within the normal range.Although the sensor's housing has an IP67 protection rating,which can withstand certain harsh conditions,additional protective measures such as waterproof or dustproof covers may be necessary in extreme environments to extend its service life.
Finally,it is recommended to regularly perform functional tests and parameter calibration on the sensor.Through the control panel or IO-Link interface,check whether the sensor's output signal is normal and adjust switching points and tolerance ranges according to actual application needs.For the four-wire sensor,with a typical current consumption of 25 mA and a voltage drop of no more than 2.2 V under no-load conditions,any abnormal current or voltage detected during maintenance should be promptly investigated to prevent power-related issues from affecting sensor performance.These meticulous maintenance measures can effectively ensure the long-term stable operation of the MZ2Q-TSLPSKU0 four-wire sensor in industrial automation applications.
10.What is the current consumption of the MZ2Q-TSLPSKU0 magnetic sensor,and what impact does it have on system design?
The MZ2Q-TSLPSKU0 magnetic sensor has a typical current consumption of 25 mA.This parameter is significant in system design.First,low current consumption means the sensor can operate stably in low-power environments,reducing the burden on the power supply system.This is a significant advantage for automated equipment that needs to run continuously,as it can lower the power supply requirements and improve overall system efficiency.Additionally,low current consumption reduces heat generation,enhancing system reliability and stability,especially in high-temperature environments.
In system design,understanding the sensor's current consumption helps in selecting appropriate power supply devices.Since the MZ2Q-TSLPSKU0 has low current consumption,designers can choose smaller power modules,saving costs and space.Low current consumption also means that voltage drop is less of a concern during long-distance wiring.The four-wire design of the sensor already minimizes the impact of voltage drop,and low current consumption further reduces this risk.This allows the sensor to maintain stable signal output over longer distances without performance degradation.Moreover,low current consumption provides greater flexibility in system design,allowing designers to choose different power supply solutions without worrying about the sensor's power requirements.
Finally,from an energy-saving perspective,low current consumption sensors help reduce overall system energy usage,aligning with modern industrial automation's focus on energy efficiency and environmental protection.In large-scale automated production lines,using low-power sensors can significantly lower operating costs and reduce environmental impact.Therefore,the low current consumption characteristic of the MZ2Q-TSLPSKU0 magnetic sensor not only offers technical advantages but also brings positive impacts on economic and environmental aspects of system design.
