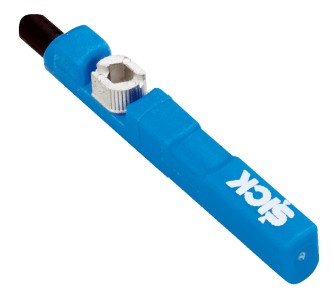

The MZC1-2V2PSAKRD features a PNP normally open output and a three-wire sensor design,enabling precise position detection and control.It is a high-performance position sensor specifically designed for C-slot pneumatic cylinders,widely used in the field of industrial automation.With its robust housing and IP68 protection rating,this sensor can operate reliably in harsh industrial environments,providing solid support for automated equipment control.
Product Specifications
Output Type：PNP Normally Open(PNP normally open)
Connection Method：Three-wire sensor(3 wire sensor),M8 three-pin plug with knurled screw
Operating Voltage：10-30 V DC
Switching Frequency：1,000 Hz
Protection Rating：IP68
Operating Temperature Range：-30°C to+80°C
Electrical Specifications：DC 3-wire
Output Function：Normally open contact
Response Time：Typical 2.2 ms
Hysteresis：≤0.8 mT
Sensitivity：2.2 mT
Cable Length：0.5 m
Communication Interface：Supports IO-Link V1.0
Product Features
Precise Positioning：As a position sensor,the MZC1-2V2PSAKRD can accurately detect the position of the pneumatic cylinder piston,providing high-precision position feedback suitable for a variety of automated applications.
High Reliability：Equipped with features such as short-circuit protection,reverse polarity protection,and surge pulse protection,it ensures stable operation of the equipment in complex working conditions.
Easy Installation and Commissioning：With an optical adjustment indicator and LED display,the installation process is simple and intuitive.Users can quickly complete equipment commissioning and put it into use.
Strong Environmental Adaptability：The IP68 protection rating allows it to resist the ingress of dust,water,and oil,making it suitable for humid,dusty,and oily industrial environments.
Applications
Mechanical Manufacturing：Used for position detection of pneumatic cylinders in automated production lines to ensure precise operation of equipment.
Automotive Industry：In automotive component manufacturing,it is used to detect the position of the pneumatic cylinder piston,improving production efficiency and product quality.
Logistics Automation：In automated warehouses and conveying systems,it is used to detect the motion status of the pneumatic cylinder,achieving automated control.
Food Processing：In food packaging and processing equipment,it is used to detect the stroke position of the pneumatic cylinder,ensuring clean and efficient operation of the equipment.
Instructions for Use
Installation and Commissioning
Installation Environment：Choose a dust-free,water-free,and oil-free environment for installation to ensure long-term stable operation of the sensor.
Connection Method：Follow the product manual strictly for wiring to ensure that the power supply,signal,and ground wires are connected correctly.
Commissioning Steps：Use the optical adjustment indicator to adjust the sensor's position to ensure accurate detection of the pneumatic cylinder piston.
Parameter Settings
Electrical Parameters：Set the operating voltage and output current of the sensor according to actual application requirements.
Function Configuration：Through the IO-Link interface,advanced parameters such as output delay and counter function can be configured.
Status Monitoring：Use the LED indicator to monitor the sensor's operating status and address any anomalies promptly.
Precautions
Environmental Conditions：Avoid using the sensor in high-temperature,high-humidity,or strong electromagnetic interference environments to prevent performance degradation and reduced lifespan.
Electrical Connection：Ensure stable power supply voltage to avoid damage to the sensor caused by voltage fluctuations.Wait for a certain period before re-powering after equipment shutdown.
Safe Operation：Avoid contact with live parts during equipment operation to ensure operator safety.Disconnect power before performing maintenance and inspection.
Materials and Manufacturing Process
The MZC1-2V2PSAKRD position sensor is made of high-quality materials and advanced manufacturing processes to ensure durability and reliability in complex industrial environments.The housing is made of robust plastic with excellent impact resistance and corrosion resistance,protecting against dust,moisture,and oil ingress.The IP68 protection rating ensures stable operation in extreme conditions.Additionally,the sensor's PUR cable offers excellent flexibility and wear resistance,suitable for drag chain applications and capable of withstanding up to 5 million bending cycles.These material and process choices not only extend the sensor's lifespan but also reduce failures caused by environmental factors,ensuring long-term stable operation of the equipment.
Additional Features
The MZC1-2V2PSAKRD sensor offers several additional features that enhance its flexibility and intelligence in industrial automation applications.First,it supports the IO-Link V1.0 communication protocol,allowing users to remotely configure sensor parameters via software,such as output delay,counter function,and internal temperature monitoring.Second,the sensor is equipped with an optical adjustment indicator and LED display,enabling intuitive sensor alignment during installation.Additionally,it features reverse polarity protection,short-circuit protection,and surge pulse protection to prevent damage from improper operation or electrical faults.These features not only improve the sensor's ease of use but also enhance its adaptability and reliability in complex industrial environments.
Product Advantages
The MZC1-2V2PSAKRD sensor stands out in design and functionality,making it an ideal choice for industrial automation.First,its PNP normally open output and three-wire sensor design ensure stable signal transmission and strong resistance to electromagnetic interference,suitable for long-distance transmission and complex environments.Second,the high switching frequency(1,000 Hz)and low response time(2.2 ms)enable rapid response to position changes of the pneumatic cylinder piston,meeting the demands of high-speed automation.Additionally,its IP68 protection rating and wide operating temperature range(-30°C to+80°C)ensure stable performance in harsh conditions.These advantages not only improve equipment efficiency but also reduce maintenance costs,providing a reliable and efficient automation solution for users.
After-Sales Service
To ensure an optimal user experience with the MZC1-2V2PSAKRD position sensor,SICK offers comprehensive after-sales support.First,SICK provides detailed product documentation and technical support to help users quickly understand and master the installation,commissioning,and maintenance of the sensor.Second,SICK's global service network offers timely technical consultations and troubleshooting services to ensure the normal operation of the equipment.Additionally,SICK provides customized training services to help users gain in-depth knowledge of the sensor's advanced features and optimal configuration.Through these after-sales measures,SICK ensures the high performance and reliability of the product,offering users comprehensive technical assurance and peace of mind during use.
Frequently Asked Questions(FAQ)
1.How does the PNP Normally Open output of the MZC1-2V2PSAKRD work?
The PNP Normally Open output is a common sensor output type,suitable for most industrial control systems.When the sensor detects a target object,the output terminal conducts,forming a closed circuit that triggers the action of subsequent devices.The advantages of this output type include stable signals and strong resistance to interference,making it suitable for long-distance transmission.
In practical applications,PNP Normally Open output sensors need to be used in conjunction with PLCs or other controllers.Users should configure the power supply voltage and load resistance according to the controller's requirements to ensure stable signal transmission.
Additionally,when installing and commissioning,attention should be paid to the correctness of power polarity and load connections to avoid equipment damage due to wiring errors.
2.How to choose a suitable three-wire sensor?
Three-wire sensors are a common type of industrial sensor,featuring power,signal,and ground wires.When selecting a suitable three-wire sensor,consider the following factor.
First,based on the application requirements,choose the appropriate sensor type and output method.For example,for applications requiring high-precision position detection,a position sensor like the MZC1-2V2PSAKRD is recommended.：
Second,consider the electrical parameters of the sensor,such as operating voltage,current consumption,and output frequency,to ensure compatibility with the control system.
Finally,consider the mechanical and environmental adaptability of the sensor,such as protection rating,installation method,and operating temperature range.For example,the IP68 protection rating of the MZC1-2V2PSAKRD allows it to operate stably in harsh environments,making it suitable for a variety of industrial applications.
3.How does the position sensor function of the MZC1-2V2PSAKRD work?
As a position sensor,the MZC1-2V2PSAKRD operates based on the principle of magnetic induction.When the piston of the pneumatic cylinder moves,the magnetic-sensitive element inside the sensor detects changes in the magnetic field and converts these changes into electrical signals for output.
During installation,users need to adjust the sensor's position and sensitivity according to the cylinder's stroke and detection requirements.The optical adjustment indicator and LED display allow for intuitive installation and commissioning,ensuring that the sensor is precisely aligned with the cylinder.
Moreover,the MZC1-2V2PSAKRD supports the IO-Link communication protocol,enabling users to configure sensor parameters via software,such as output delay and counter function,to meet complex application needs.
4.How to ensure reliable electrical connections for the MZC1-2V2PSAKRD?
Ensuring reliable electrical connections is crucial for the proper functioning of the sensor.First,when wiring,follow the product manual strictly to ensure that the power supply,signal,and ground wires are connected correctly.
Second,choose the right cables and connectors to avoid signal interference or poor contact caused by low-quality cables.For example,the MZC1-2V2PSAKRD uses an M8 three-pin plug,so it’s important to use cables that meet the specifications to ensure a tight connection between the plug and socket.
Finally,regularly check the solidity of electrical connections and address any loose or corroded connectors promptly.Avoid frequent plugging and unplugging of cables during equipment operation to prevent damage to connectors and cables.
5.What are the advantages of the PNP Normally Open output of the MZC1-2V2PSAKRD?
The PNP Normally Open output is a common sensor output type with several advantages.First,the signal from a PNP output is stable and highly resistant to interference,making it suitable for long-distance transmission and complex electromagnetic environments.
Second,sensors with PNP outputs typically have a high switching frequency,allowing them to quickly respond to changes in the target object,which is ideal for high-speed automation applications.
Additionally,PNP Normally Open sensors are relatively easy to install and commission,as users only need to ensure the correct polarity of the power supply and load connections.When used in conjunction with PLCs or other controllers,PNP output sensors provide reliable signal transmission,ensuring stable equipment operation.
Lastly,PNP Normally Open sensors are highly versatile and compatible with most industrial control systems,allowing users to select the appropriate sensor model without worrying about compatibility issues.
6.How to choose the right power supply for the MZC1-2V2PSAKRD?
When selecting a power supply for the MZC1-2V2PSAKRD,consider its electrical parameters and operating environment.First,based on the sensor’s rated operating voltage(10-30 V DC),choose a power supply with an appropriate voltage range.It is recommended to select a power supply with good voltage regulation to prevent damage to the sensor from voltage fluctuations.
Second,consider the current capacity of the power supply.Although the MZC1-2V2PSAKRD has a no-load current of only 8 mA,it is also necessary to account for the load current requirements in practical applications.For example,when the sensor output is activated,additional current may be needed to drive downstream devices.
Finally,the environmental adaptability of the power supply is also important.If the sensor is installed in an environment with high temperature,humidity,or strong electromagnetic interference,the power supply should also have the corresponding protection rating and interference resistance.
7.How to ensure the installation accuracy and reliability of the MZC1-2V2PSAKRD position sensor?
Ensuring the installation accuracy and reliability of the MZC1-2V2PSAKRD position sensor is key to achieving its high performance.First,carefully read the product manual before installation to understand the installation requirements and precautions.The MZC1-2V2PSAKRD is designed for C-slot pneumatic cylinders,and during installation,it is essential to ensure the alignment accuracy between the sensor and the cylinder.The sensor’s sensing surface should be aligned with the magnetic part of the cylinder piston to ensure optimal detection.During installation,the optical adjustment indicator can be used for fine-tuning to ensure the sensor accurately detects the piston’s position.
Second,the choice of installation environment is also crucial.The sensor should be installed in a dust-free,water-free,and oil-free environment to prevent performance degradation or damage due to environmental factors.Additionally,the installation location should be away from strong electromagnetic interference sources to minimize external interference with detection accuracy.Although the sensor’s housing is robust and has an IP68 protection rating for harsh environments,it is still advisable to avoid extreme conditions during installation.
Finally,regularly inspect the installation status of the sensor to ensure its long-term reliable operation.Check if the sensor is loose,if the sensing surface is obstructed by foreign objects,and if the connecting cables are damaged.If necessary,re-adjust the sensor’s position or replace damaged components.These measures can effectively extend the sensor’s lifespan and ensure its optimal performance in the automation system.
8.What are the precautions for the three-wire connection of the MZC1-2V2PSAKRD?
When using the three-wire connection of the MZC1-2V2PSAKRD,pay attention to the following points:
First,the three wires of a three-wire sensor are the positive power supply(L+),the negative power supply(M),and the signal output wire(Q/C).When wiring,it is essential to connect them correctly to avoid sensor damage or malfunction.According to the product manual,L+should be connected to the positive power supply,M to the negative power supply,and Q/C to the signal input terminal of the controller.
Second,the sensor uses an M8 three-pin plug with a knurled screw to ensure a secure and reliable connection.When connecting the cable,choose the appropriate cable length and specifications to avoid signal transmission issues caused by cables that are too long or too short.Additionally,it is recommended to use shielded cables to reduce electromagnetic interference and ensure signal stability and accuracy.
Finally,during installation and commissioning,ensure that the sensor is properly grounded to enhance its interference resistance.Regularly check the solidity and insulation of the connection points to prevent poor contact due to loosening or corrosion.
9.How to choose the right three-wire sensor cable for the MZC1-2V2PSAKRD?
When selecting a three-wire sensor cable for the MZC1-2V2PSAKRD,consider the following key factors:
First,the electrical specifications of the cable must be compatible with the sensor.According to the product data,the sensor’s electrical specifications are DC 3-wire,so the cable should support an operating voltage of 10-30 V DC.Additionally,the cable’s conductor cross-section should meet the sensor’s requirements,typically ranging from 0.14 mm² to 0.5 mm².
Second,choose the cable length based on actual application needs.The MZC1-2V2PSAKRD comes with a standard 0.5 m cable,but longer cables such as 2 m or 5 m can also be selected if necessary.When choosing cable length,minimize signal transmission distance to reduce the risk of signal attenuation and electromagnetic interference.
Finally,the cable’s protection rating and application environment are also important.For environments that are humid or chemically corrosive,it is recommended to choose halogen-free PUR material cables to enhance durability and reliability.Ensure that the cable connectors meet the M8 three-pin specifications and have knurled screws to strengthen the connection’s solidity.
10. What are the advantages of the PNP Normally Open output of the MZC1-2V2PSAKRD in practical applications?
The PNP Normally Open output of the MZC1-2V2PSAKRD offers significant advantages in practical applications：
First,the signal from a PNP Normally Open output is highly stable and resistant to interference,making it suitable for complex electromagnetic environments.This output type can maintain signal integrity over long distances,ensuring that the sensor’s output signals are accurately transmitted to the controller.Additionally,PNP output sensors typically have a high switching frequency,allowing them to quickly respond to changes in the target object,which is ideal for high-speed automation applications.
Second,PNP Normally Open sensors are relatively easy to install and commission.Users only need to ensure the correct polarity of the power supply and load connections,without requiring complex configurations.When used in conjunction with PLCs or other controllers,PNP output sensors provide reliable signal transmission,ensuring stable equipment operation.
Lastly,PNP Normally Open sensors are highly versatile and compatible with most industrial control systems.Users can select the appropriate sensor model based on their actual needs without worrying about compatibility issues.This versatility not only simplifies equipment selection but also reduces additional costs associated with sensor replacement.
