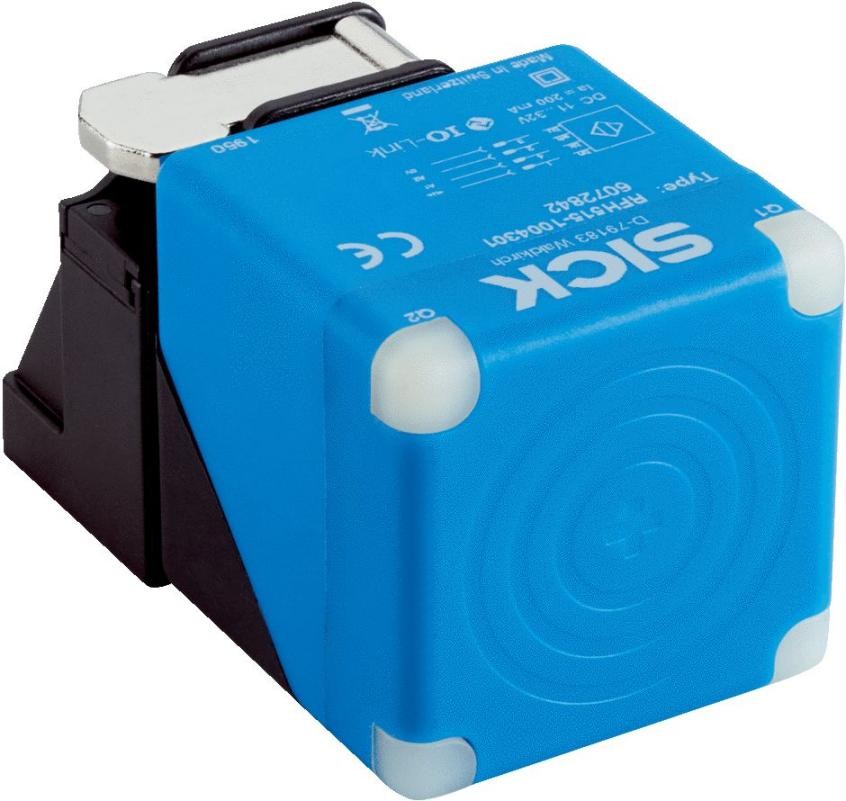

The SICK RFH515-1004301, integrating sick rfid precision with io link sensors technology, is a high-frequency (HF) RFID reader/writer optimized for industrial automation. With built-in IO Link Master connectivity, it delivers reliable close-range read/write operations in logistics, manufacturing, and production environments.
Product Specifications
Operating Frequency: 13.56 MHz
Read/Write Range: Up to 80 mm
Connection Type: IO-Link
Supply Voltage: 11 V DC to 32 V DC
Power Consumption: Maximum 1.8 W
Housing Material: Brass (chrome-plated), PBTP (blue)
Protection Rating: IP68
Dimensions: 40 mm × 40 mm × 67 mm
Weight: 108 g (including bracket)
Operating Temperature: -25°C to +80°C
Storage Temperature: -25°C to +80°C
Humidity: 0% to 95% (non-condensing)
Product Features
High-Frequency (HF) Technology: ISO/IEC 15693 compliance for io link sensors applications.
Integrated Antenna: No additional antenna installation required.
High Reliability: Mean Time Between Failures (MTBF) exceeds 756 years.
Compact Design: Suitable for applications with limited installation space.
High Protection Rating: IP68 rating for harsh environments.
Multi-Functional Interface: Supports IO-Link V1.1 for seamless connection with PLCs and other devices.
Application Scenarios
Logistics and Warehousing: Track inventory using io link sensors-enabled close-range reads.
Manufacturing: Automate production lines with sick rfid and io link master integration.
Automation Equipment: Integrated into automated systems for efficient data collection.
Metal Environments: Suitable for installation on metal surfaces in industrial automation settings.
Installation and Usage Instructions Installation:
When installing on a metal surface, it is recommended that the movable head protrudes by about 10 mm.
Ensure the installation location is free from interference to avoid mutual interference with other devices.
Electrical Connection:
Use an M12 four-pin male connector.
Ensure the supply voltage is between 11 V DC and 32 V DC.
Commissioning and Configuration:
Use the SOPAS ET software for parameter configuration.
Remote configuration and diagnostics are supported via IO-Link.
Precautions
Installation Distance: To avoid mutual interference during parallel installation, maintain sufficient spacing.
Environmental Adaptability: Although the protection rating is high, avoid prolonged exposure to extreme temperatures or humid environments.
Maintenance: Regularly inspect connectors and cables to ensure they are secure and undamaged.
Frequently Asked Questions and Answers
What is the read/write range of the RFH515-1004301?
Read/Write Range: Up to 80 mm, depending on the size and quality of the tag.
Application: Suitable for close-range read/write operations, such as reading goods tags in logistics.
Note: Ensure proper alignment between the tag and the reader/writer antenna to improve read/write success rates.
Does the io link sensors support installation in metal environments?
Metal Environment Support: The sick rfid ensures stable reads even on metal, while IO Link Master maintains connectivity.
Installation Recommendation: When installed on a metal surface, the movable head should protrude by about 10 mm.
Advantage: Stable read/write performance is maintained even in metal environments.
What is the power consumption of the RFH515-1004301?
Power Consumption: Maximum 1.8 W.
Energy-Saving Advantage: Low power consumption makes it suitable for long-term operation.
Note: Ensure proper heat dissipation in high-load or high-temperature environments.
How can I configure the parameters?
Configuration Tool: Use the SOPAS ET software for parameter configuration.
Configuration Content: Includes read/write range, communication protocol, output signals, etc.
Note: After configuration, perform practical tests to verify read/write performance.
What is the protection rating of the RFH515-1004301?
Protection Rating: IP68.
Advantage: Effective dust and water protection suitable for harsh industrial environments.
Note: Although the protection rating is high, avoid prolonged submersion in water.
What should I pay attention to when installing the RFH515-1004301?
Installation Location: Choose a location free from interference and with good ventilation.
Installation Method: Non-recessed installation is recommended, with the movable head protruding by about 10 mm.
Electrical Connection: Ensure secure connections to avoid loosening.
What is the operating temperature range?
Operating Temperature: -25°C to +80°C.
Advantage: Stable operation in extreme temperatures.
Note: Ensure proper heat dissipation in high-temperature environments.
What types of interfaces does the RFH515-1004301 support?
Interface Type: Supports IO-Link.
Interface Advantage: Supports bidirectional communication for parameter configuration and data transmission.
Note: Ensure consistent communication protocols when connecting.
What is the read/write speed?
Read/Write Speed: Data transfer rate of 26 kbit/s.
Application: Suitable for scenarios with low read/write speed requirements.
Note: Ensure proper alignment between the tag and the reader/writer during high-frequency read/write operations.
What is the lifespan?
Lifespan: Mean Time Between Failures (MTBF) exceeds 756 years.
Advantage: High reliability for long-term use.
Note: Regular maintenance and inspection of the device are essential to ensure its performance.
