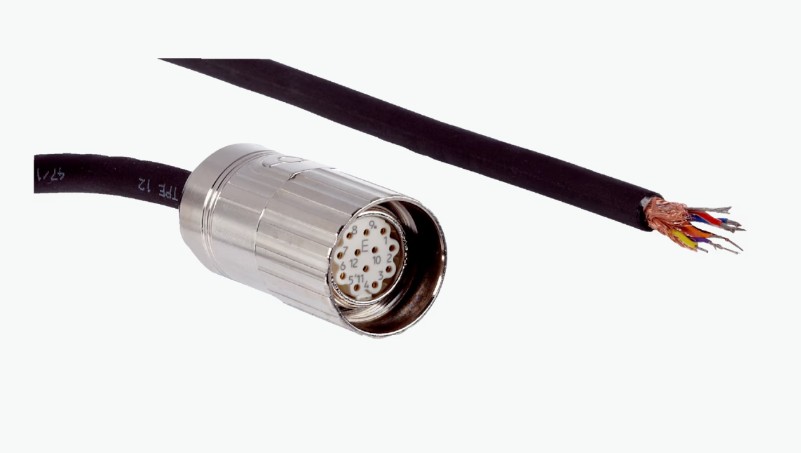

The SICK sensor cable DOL-2312-G30MMA2 is a high-performance SICK cable designed for industrial automation applications. This SICK connector is widely used in automated production lines, robotics, and logistics systems. With its robust design and advanced features, the SICK sensor cable ensures stable operation and efficient signal transmission. It connects various sensors and actuators, providing reliable and durable performance in harsh industrial environments.
Product Specifications
Connection Type:
A Head: Socket, M23, 12 pins, straight.
B Head: Bare wire end with a knurled nut made of die-cast zinc, nickel-plated.
Cable Specifications:
Length: 30 meters.
Number of Cores: 12 cores.
Insulation Material: Halogen-free PUR, black in color.
Wire Diameter: 7.8 mm.
Cross-sectional Area: 4×2×0.25 mm² + 2×0.5 mm² + 2×0.14 mm².
Electrical Parameters:
Rated Voltage: ≤160V.
Current Capacity: 7A.
Signal Type: SSI (Synchronous Serial Interface).
Mechanical Characteristics:
Shielding: Yes.
Bending Radius: > 5×wire diameter for fixed installation; > 7.5×cable diameter for use in drag chains.
Protection Rating: IP66/IP67.
Product Features
High Protection Rating: The IP66/IP67 rating protects against dust, water, and high-pressure water jets, making it suitable for harsh industrial environments. This feature is crucial for the durability of the SICK sensor cable.
Halogen-Free Material: The cable uses halogen-free PUR material, which is environmentally friendly and offers excellent chemical and oil resistance. This material ensures the longevity and reliability of the sick cables.
Shielded Design: The built-in shielding effectively reduces electromagnetic interference, ensuring stable and accurate signal transmission. This is particularly important for the SICK DOL-2312-G30MMA2, which is often used in demanding industrial settings.
Wide Applicability: Suitable for use in drag chains, withstanding frequent mechanical movements. This versatility makes the SICK sensor cable an ideal choice for various industrial applications.
Applications
Automated Production Lines: Connects sensors and actuators for signal transmission and control between devices, ensuring seamless operation.
Robotics: Used in robotic arms and joints, where the sick connector can withstand frequent motion and bending without compromising performance.
Logistics Systems: Ideal for signal connections in conveyor belts and other automated equipment, providing reliable and efficient operation.
Installation Instructions
Installation Environment: Ensure installation in a dust-free, non-corrosive, and low-electromagnetic-interference environment to maximize the performance of the SICK sensor cable.
Wiring Requirements: Avoid placing signal cables close to power cables to minimize electromagnetic interference. Use shielded cables and ensure proper grounding of the shielding layer to enhance signal stability.
Grounding Protection: Ensure proper grounding of equipment in compliance with national and local electrical safety standards to protect the sick connector from potential damage.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or high-electromagnetic-interference environments to maintain the integrity of the SICK sensor cable.
Mechanical Movement: When used in drag chains, ensure the bending radius meets the requirements to avoid excessive bending or stretching, which could damage the sick connector.
Maintenance: Regularly inspect the cable's appearance, clean dust and debris, and ensure the cable's insulation performance to prolong its lifespan.
Frequently Asked Questions and Answers
What is the bending radius of the SICK DOL-2312-G30MMA2 cable?
Answer: For fixed installation, the bending radius should be greater than 5×wire diameter. For use in drag chains, it should be greater than 7.5×cable diameter. Ensuring the correct bending radius helps prevent damage to the SICK sensor cable.
What types of signals does this sick cables support?
Answer: It supports SSI (Synchronous Serial Interface) signals, suitable for high-precision sensor signal transmission to ensure data stability and accuracy. This makes the SICK DOL-2312-G30MMA2 compatible with various industrial automation devices.
What is the protection rating of the SICK DOL-2312-G30MMA2?
Answer: The protection rating is IP66/IP67, effectively preventing dust, water, and high-pressure water jets. This high rating makes the SICK sensor cable excellent for industrial automation and robotics applications.
What is the current capacity of this sick cables?
Answer: The current capacity is 7A, with a rated voltage of up to 160V. Ensuring that current and voltage do not exceed these ratings helps avoid damage to the SICK sensor cable.
Is the cable material environmentally friendly?
Answer: Yes, the SICK DOL-2312-G30MMA2 uses halogen-free PUR material, which is environmentally friendly and offers excellent chemical and oil resistance. This material also provides good wear and aging resistance, enhancing the durability of the sick cables.
What is the length of the SICK sensor cable?
Answer: The cable length is 30 meters, which meets most industrial automation connection needs. For longer cables, contact SICK for customization to suit specific requirements.
Is the sick cables suitable for drag chain applications?
Answer: Yes, it is suitable for drag chain applications. The cable's cross-sectional area and shielding design allow it to withstand frequent mechanical movements. Ensure the bending radius meets the requirements when using the SICK sensor cable in drag chains.
What is the connection type of the sick cables?
Answer: The A head is a straight M23 socket with 12 pins, and the B head is a bare wire end. Ensure secure connections to avoid loosening or poor contact. Proper grounding is also essential to reduce electromagnetic interference for the SICK DOL-2312-G30MMA2.
What is the cross-sectional area of the SICK sensor cable?
Answer: The cross-sectional area is 4×2×0.25 mm² + 2×0.5 mm² + 2×0.14 mm². This design meets various signal transmission needs while ensuring mechanical strength. Choose the appropriate cross-sectional area based on your application requirements.
What is the protection rating of the sick cables's outer shell?
Answer: The protection rating is IP66/IP67, effectively preventing dust, water, and high-pressure water jets. This high rating makes the SICK sensor cable excellent for industrial automation and robotics applications.
