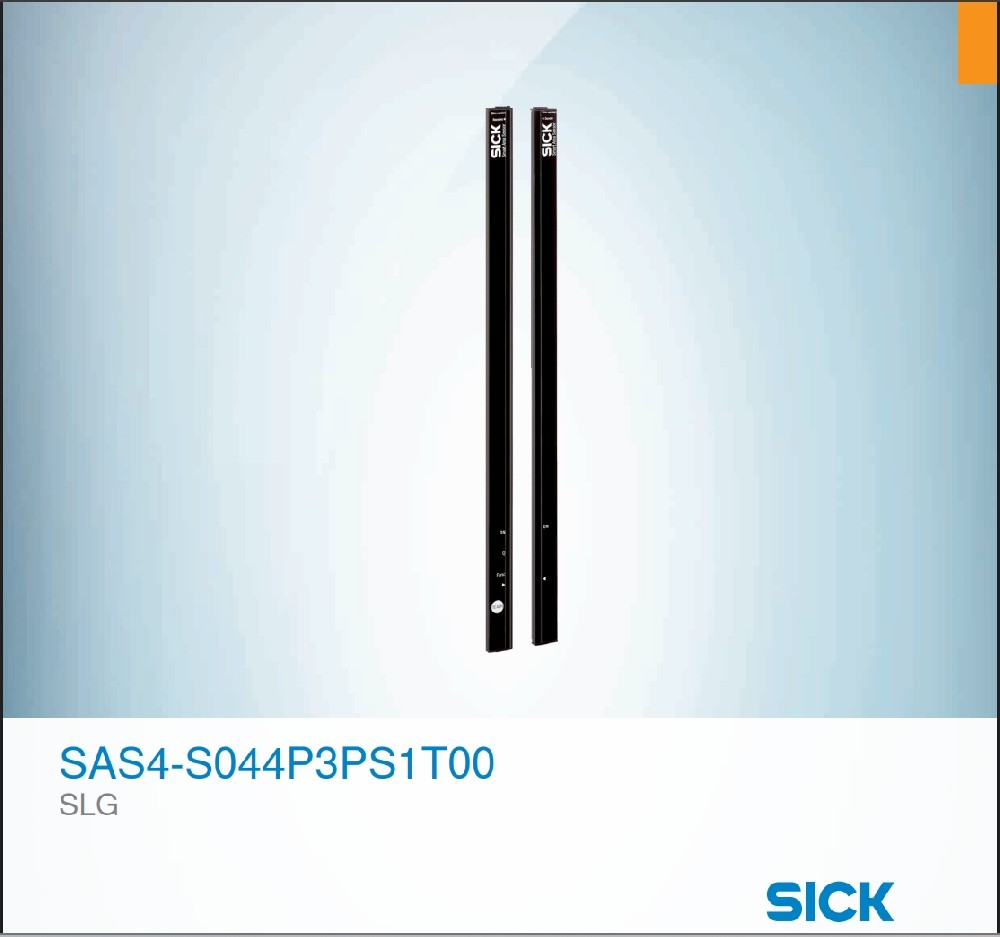

The SICK SAS4-S044P3PS1T00 is a switching light grid of through beam sensor. This light beam sensor is designed for industrial automation applications. With PNP sensor, this product is suitable for object detection, safety protection, and automated control. This high-performance sensor is widely used in various industrial scenarios due to its precision, reliability, and adaptability.
Product Specifications
Detection Principle: Transmitter/Receiver.
Minimum Detectable Object: 45 mm (parallel beams).
Beam Spacing: 40 mm.
Number of Beams: 12.
Monitoring Height: 440 mm.
Operating Range: Maximum 4 m, actual operating range 3 m.
Response Time: 19 ms.
Light Source: Infrared light (wavelength 950 nm).
Supply Voltage: DC 24 V ± 20%.
Power Consumption: Receiver ≤ 70 mA.
Output Type: PNP switching output.
Housing Protection Rating: IP65.
Operating Temperature Range: -25°C to +55°C.
Dimensions: 25 mm × 512.4 mm × 8.2 mm.
Weight: 60 g.
Product Features
High-Precision Detection: This through beam sensor is capable of detecting objects as small as 45 mm, suitable for high-precision applications.
Fast Response: With a response time of 19 ms, it is ideal for dynamic detection environments.
Flexible Installation: Supports multiple mounting options, including fixed brackets and mounting plates.
Environmental Adaptability: The PNP sensor product can operate in environments with direct illumination up to 100,000 lx and indirect illumination up to 150,000 lx.
Robust Protection: The IP65-rated housing ensures reliability in harsh industrial environments.
Applications
Industrial Automation: Used for object detection and material handling control on production lines.
Safety Protection: Installed in hazardous areas to prevent accidental entry.
Logistics and Warehousing: Ideal for goods detection and automated sorting systems.
Installation and Maintenance
Installation Requirements: Choose an environment free from strong light interference and corrosive gases. Ensure the device is mounted vertically for optimal heat dissipation and signal transmission.
Connection: Use an M8 4-pin cable for connection, ensuring a secure and stable connection.
Parameter Settings: Adjust detection range and output modes using the teach-in button. Refer to the user manual for detailed instructions.
Maintenance: Regularly clean the sensor surface to remove dust and ensure detection accuracy. Check cable connections and grounding regularly.
Common Questions
Detection Accuracy: This through beam sensor can detect objects as small as 45 mm, making it suitable for high-precision detection scenarios.
Adjusting Detection Range: The device features a teach-in button for adjusting detection range and output modes. Follow the user manual for correct settings.
Response Time: The response time is 19 ms, ensuring rapid feedback in dynamic detection environments.
Installation Options: Supports multiple mounting methods, including fixed brackets and mounting plates. Ensure vertical installation for optimal performance.
Environmental Adaptability: The light beam sensor operates reliably in temperatures ranging from -25°C to +55°C and has excellent resistance to environmental light interference.
Power Requirements: This PNP sensor product operates on DC 24 V ± 20% with a power consumption of ≤ 70 mA. Ensure stable power supply to avoid damage.
Output Type: The device provides a PNP switching output suitable for most industrial control systems.
Maintenance Tips: Regular cleaning, checking cable connections, and ensuring proper grounding are recommended to prolong the device's lifespan.
Interference Resistance: The device meets electromagnetic compatibility standards (EN 60947-5-2) and uses shielding techniques to minimize interference.
Lifespan: The light beam sensor is built with high-quality optical and electronic components. Regular maintenance and cleaning can significantly extend its lifespan.
