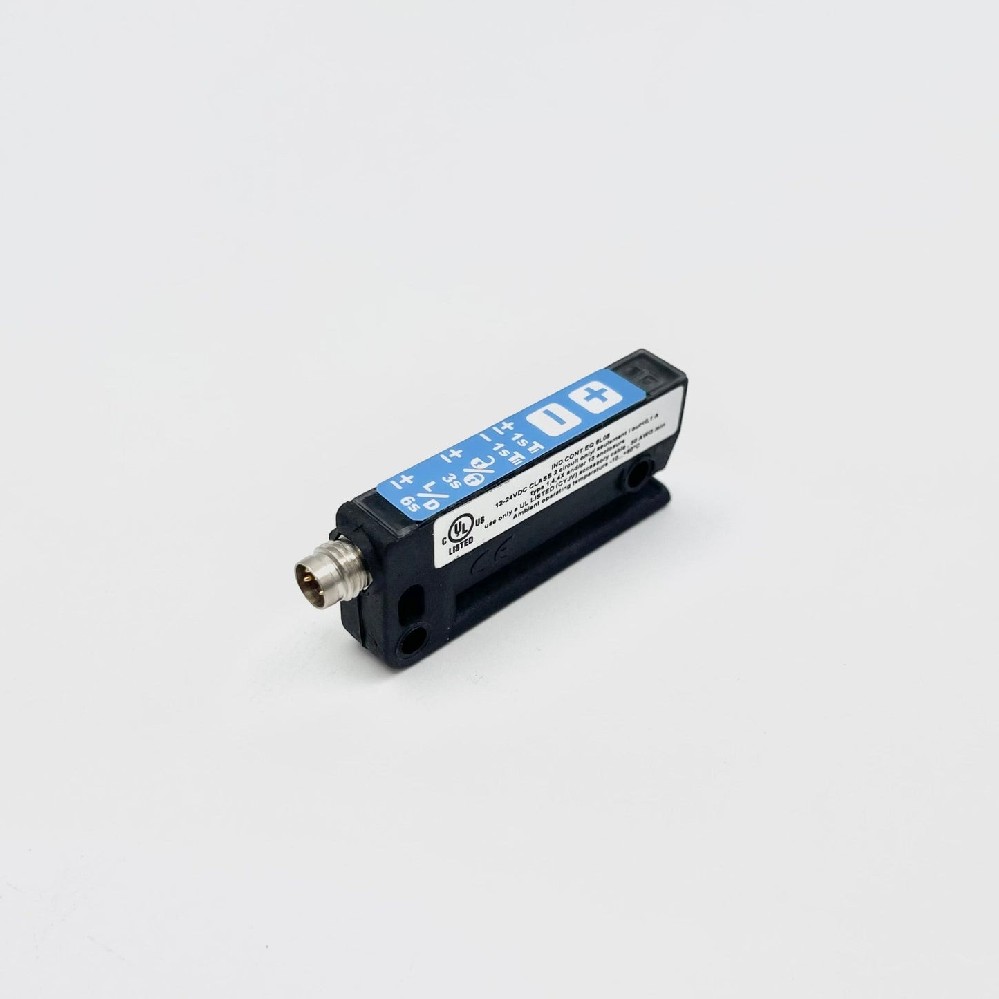

The SICK WFS3-40N415 is a high-performance beam sensor based on photoelectric sensor principles, specifically designed for label detection. As a flagship example of photoelectric cell sensor technology, it enables high-speed response in applications such as label stripping machines and labeling systems through optical detection. Combining a compact design with cost-effectiveness, this sensor ensures accurate identification in challenging operating conditions, making it ideal for industrial automation scenarios requiring precision and reliability.
Product Specifications
Dimensions: 10 mm × 25 mm × 64.3 mm.
Slot Width: 3 mm.
Fork Depth: 42 mm.
Minimum Detectable Object: Label spacing/label size of 2 mm.
Operating Principle: Optical principle, infrared LED.
Supply Voltage: 10 V DC to 30 V DC.
Current Consumption: 20 mA.
Response Time: 50 µs.
Output Type: NPN, high level ≈ UV, low level ≤ 2 V.
Switching Frequency: 10 kHz.
Output Current: Maximum 100 mA.
Teaching Function: Dynamic teaching with "+" and "-" buttons for fine-tuning.
Connection: M8 four-pin plug.
Housing Material: PA (glass fiber reinforced).
Protection Rating: IP65.
Operating Temperature Range: -20°C to +60°C.
Storage Temperature Range: -30°C to +80°C.
Product Features
High Cost-Effectiveness: The next-generation economical slot-type beam sensor is specifically designed for label detection, combining the high-precision characteristics of a photoelectric sensor to balance cost and performance.
Compact Design: Saves installation space and can be easily mounted near label stripping machines.
Dynamic Teaching Function: External self-learning function allows automatic threshold calibration via PLC during the process.
Fast Response: Accurate detection even at high speeds.
Easy Installation: Simple calibration and quick startup.
Applications
Label Detection: Used in label stripping machines and labeling machines to detect label spacing and size.
Double Label Detection: The photoelectric sensor accurately detects overlapping or misaligned labels by comparing reflected light intensity differences, preventing missed detection.
Transparent Label Detection: Using a specially modulated infrared beam sensor paired with a high-sensitivity photoelectric cell sensor , it effectively identifies low-reflectivity transparent labels.
Installation and Wiring
Installation Location: Choose an environment with minimal strong light interference to ensure the light beam accurately illuminates the target.
Wiring Requirements: Connect using an M8 four-pin plug, ensuring correct connections for power and signal lines.
Grounding Protection: Ensure proper grounding to avoid electromagnetic interference.
Parameter Settings
Teaching Function: Use the "+" and "-" buttons for dynamic teaching to adjust sensitivity for different label materials.
Switching Function: Supports light-on/dark-on switching, adjustable via buttons.
Maintenance and Inspection
Regular Cleaning: Keep the sensor surface clean to avoid dust or dirt affecting detection accuracy.
Check Connections: Ensure power and signal lines are securely connected to avoid poor contact.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong light interference environments.
Power Supply Requirements: Ensure stable supply voltage to prevent voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation to ensure personnel safety.
Frequently Asked Questions and Answers
What is the minimum detectable object for WFS3-40N415?
The minimum detectable object is a label spacing of 2 mm and a label size of 2 mm.
What is the response time of the sensor?
The photoelectric cell sensor has a response time of 50 µs, combined with the beam sensor’s high-speed modulation technology, making it suitable for ultra-high-speed production lines.
How to perform dynamic teaching?
Use the "+" and "-" buttons for dynamic teaching. The sensor will automatically adjust sensitivity to adapt to different label materials.
What is the output type of the sensor?
The output type is NPN, with a high level ≈ UV and a low level ≤ 2 V.
What is the protection rating of the sensor?
The protection rating is IP65.
What is the operating temperature range of the sensor?
The operating temperature range is -20°C to +60°C.
What is the housing material of the sensor?
The housing is made of PA (glass fiber reinforced) material.
What is the switching frequency of the sensor?
The switching frequency is 10 kHz.
How to select light-on/dark-on mode?
Switch between light-on and dark-on modes using the buttons on the sensor.
What is the storage temperature range of the sensor?
The storage temperature range is -30°C to +80°C.
