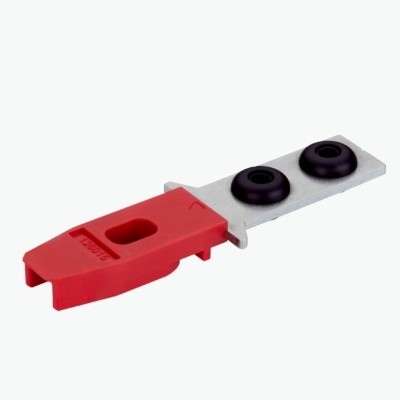

The SICK TR110-XAS is an activator component designed for wireless radio-frequency identification safety switches by magnetic proximity. It is a part of the TR110 lock, which is the series of safety switch lock, specifically tailored for doors with bottom braking mechanisms using magnetic proximity. This component offers high reliability and safety, making it ideal for safety door control and locking monitoring in industrial automation with the use of TR110 lock.
Product Specifications
Model: TR110-XAS
Order Number: 5321176
Description: Straight-head activator for doors with bottom braking mechanisms.
Scope of Supply: Includes two safety screws M4.
Dimensions:
Length: 45 mm
Width: 30 mm
Height: 18 mm
Product Features
Safety Design: Complies with industrial safety standards and is suitable for high-risk environments.
Compatibility: Perfectly matches with the SICK TR110 series of safety switch lock devices.
Easy Installation: Equipped with safety screws to ensure a secure fit.
Diagnostic Function: Photoelectric sensor supports diagnostic output for easy troubleshooting.
Applications
Industrial Automation: Used for locking and monitoring of machine guards and safety doors.
Logistics and Warehousing: Monitors and locks safety doors in automated warehouses.
Automotive Manufacturing: Monitors safety doors on production lines to prevent accidental startup.
Installation Instructions
Installation Environment: Ensure the installation area is dust-free, free from corrosive gases, and avoid strong electromagnetic interference.
Installation Process: Use appropriate tools to securely fasten the safety screws and ensure the activator is firmly in place.
Electrical Connection: Use an M12 connector for electrical connections and follow the wiring diagram in the manual to avoid short circuits or incorrect connections.
Function Testing
After powering on, check if the locking function is working properly to ensure that the safety door cannot be opened in hazardous conditions.
Regularly inspect the mechanical and electrical components of the locking device.
Precautions
Environmental Requirements: Avoid using in high-temperature, high-humidity, or areas with strong electromagnetic interference.
Maintenance: Regularly check the installation status of the activator to ensure screws are tight.
Safe Operation: Avoid contact with live parts during equipment operation to ensure operator safety.
Frequently Asked Questions (FAQ)
Does TR110-XAS require special tools for installation?
The TR110-XAS comes with safety screws and can be installed using standard tools. Ensure the activator is securely fastened to avoid safety hazards due to loosening.
How compatible is TR110-XAS?
The TR110-XAS is specifically designed as a component for the SICK TR110 series of safety locking devices, ensuring full compatibility. No additional configuration is required to achieve safety monitoring functions.
How to use the diagnostic function of TR110-XAS?
The TR110-XAS supports diagnostic output, allowing users to connect diagnostic devices to obtain device status information. In case of a fault, the diagnostic function helps quickly identify the issue and reduce downtime.
What are the installation location requirements for TR110-XAS?
The TR110-XAS should be installed on doors with bottom braking mechanisms to ensure tight cooperation with the safety locking device. Avoid mechanical stress and vibrations during installation to ensure stability and reliability.
What is the maintenance cycle for TR110-XAS?
Depending on the usage environment, it is recommended to perform a comprehensive inspection every 6-12 months, including checking the mechanical components and electrical connections. Regular maintenance can effectively extend the service life of the device.
What is the operating temperature range of TR110-XAS?
The operating temperature range of TR110-XAS is -20°C to +55°C, suitable for most industrial environments. Additional protective measures are recommended in extreme temperature conditions.
What are the power requirements for TR110-XAS?
The TR110-XAS operates on a 24V DC voltage with a current consumption of 400mA. Ensure a stable power supply to avoid damage to the device due to voltage fluctuations.
What is the response time of TR110-XAS?
The response time of TR110-XAS is less than 260ms, allowing it to quickly respond to changes in the safety door's status and ensure the safety of equipment and personnel.
What are the installation direction requirements for TR110-XAS?
The installation direction of TR110-XAS should be adjusted according to the braking direction of the door to ensure tight cooperation with the safety locking device. Follow the instructions in the manual during installation.
How to configure the diagnostic output function of TR110-XAS?
The diagnostic output function of TR110-XAS is realized through the auxiliary diagnostic pins of the M12 connector. Users can configure the diagnostic output signal according to actual needs to monitor the device status in real-time.
