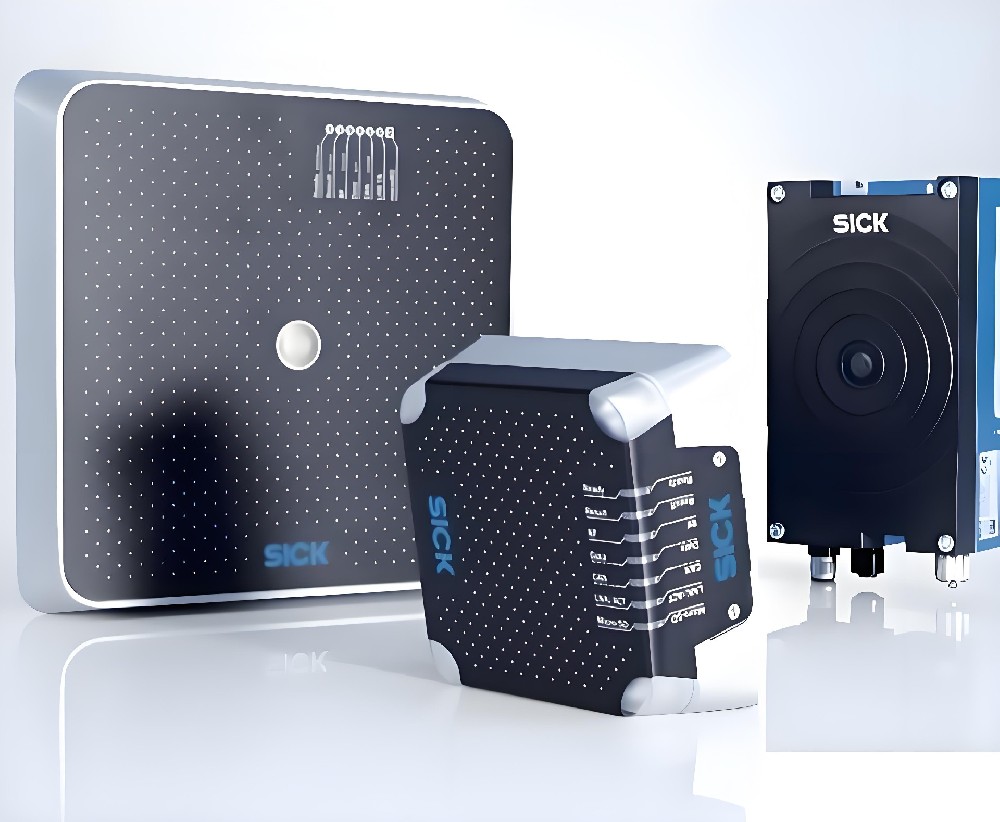

The RFU620-10500 (SICK Sensor’s RFU62x series) is a mid-range RFID reader with proximity detector, proximity sensor, and configurable proximity sensor range for industrial automation/logistics. Featuring an integrated antenna and UHF band support (860–960 MHz), it ensures precise tag detection.
Product Specifications
Model: RFU620-10500
Order Number: 1062601
Version: Mid Range
Frequency Range: 865.7 MHz - 867.5 MHz
Output Power: 0.25 W (ERP, 24 dBm)
Reading Range: Up to 2 meters (depending on the tag and environmental conditions)
Antenna Type: Integrated, circularly polarized
Connections: PoE (Power over Ethernet), M12 8-pin socket (X-coded), USB Micro-B
Supply Voltage: 48 V DC - 57 V DC
Power Consumption: Typical 8 W, standby 3 W
Housing Material: Die-cast aluminum and plastic (PPS)
Protection Rating: IP67
Dimensions: 137 mm × 131 mm × 56 mm
Weight: 780 g
Communication Interfaces: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP, USB
Product Features
Flexible Communication Capabilities: The proximity detector supports multiple industrial Ethernet protocols, including TCP/IP, PROFINET, and EtherNet/IP, for seamless integration with existing automation systems.
High Reliability: IP67 protection rating and die-cast aluminum housing ensure stable operation for both proximity detector and proximity sensor applications in harsh industrial environments.
Diagnostic and Maintenance Functions: Features include proximity sensor range calibration, firmware updates, and flexible data output formats for sick scanner systems.
SICK AppSpace Support: Users can develop customized applications using SICK AppSpace to extend the device's functionality.
Applications
The RFU620-10500 is widely used in the following areas:
Logistics and Warehousing: For tracking goods using proximity sensor technology, enabling fast and efficient logistics operations.
Production Manufacturing: For material tracking and process monitoring with proximity sensor range optimization.
Asset Management: For real-time monitoring and management of equipment and tools, optimizing asset utilization.
Installation and Wiring
Installation Environment: Choose a dust-free, non-corrosive, and low-electromagnetic-interference environment. Install the device vertically to ensure proper heat dissipation.
Wiring Requirements: Follow the manual for correct connections of power, signal, and network cables.
Grounding Protection: Ensure proper grounding to comply with electrical safety standards.
Parameter Settings
Basic Parameters: Configure reading range, output power, and other settings using SICK's SOPAS ET software or a web server.
Advanced Functions: Support for firmware updates and SICK AppSpace for customized application development.
Maintenance and Inspection
Regular Checks: Inspect the device for physical damage, clean the heat sink and fans, and ensure proper operation.
Parameter Verification: Regularly verify device parameters to ensure they match application requirements.
Fault Diagnosis: Use the built-in diagnostic functions to quickly identify and resolve issues.
Precautions
Environmental Conditions: Avoid using the device in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Requirements: Ensure stable supply voltage to prevent damage from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation and disconnect power during maintenance.
Frequently Asked Questions (FAQ)
What is the reading range of RFU620-10500?
The maximum reading range is up to 2 meters, but actual distance may vary depending on the tag type and environmental conditions. Open environments allow maximum range, while metal or liquid interference can reduce it.
How to configure the communication interface of RFU620-10500?
The device supports Ethernet, PROFINET, and EtherNet/IP. Users should select the appropriate protocol and ensure correct IP address, subnet mask, and gateway settings.
What type of antenna does RFU620-10500 use?
The device features an integrated, circularly polarized antenna, which provides uniform tag reading over a wide area, suitable for various applications.
How to update the firmware?
Firmware updates can be performed using SICK's SOPAS ET software or a web server. Download the latest firmware file and follow the software prompts to complete the update.
What is the protection rating of the device?
The RFU620-10500 has an IP67 protection rating, making it dustproof and resistant to short-term immersion, suitable for harsh industrial environments.
How to choose the right RFID tag?
When selecting RFID tags, consider frequency range, storage capacity, and size. The RFU620-10500 supports various standard UHF tags, and users can choose based on their application needs.
What diagnostic functions does the device support?
The device offers diagnostic functions such as device status monitoring, communication status checks, and error log recording to help quickly identify and resolve issues.
How to optimize the device's reading performance?
Adjusting output power and reading range through the configuration software can optimize performance based on the application environment.
What advanced functions does the device support?
The RFU620-10500 supports SICK AppSpace, allowing users to develop customized applications using SICK AppStudio to extend functionality.
How to perform routine maintenance on the device?
Routine maintenance includes inspecting the device for damage, cleaning the heat sink and fans, checking communication connections, and verifying parameters regularly.
