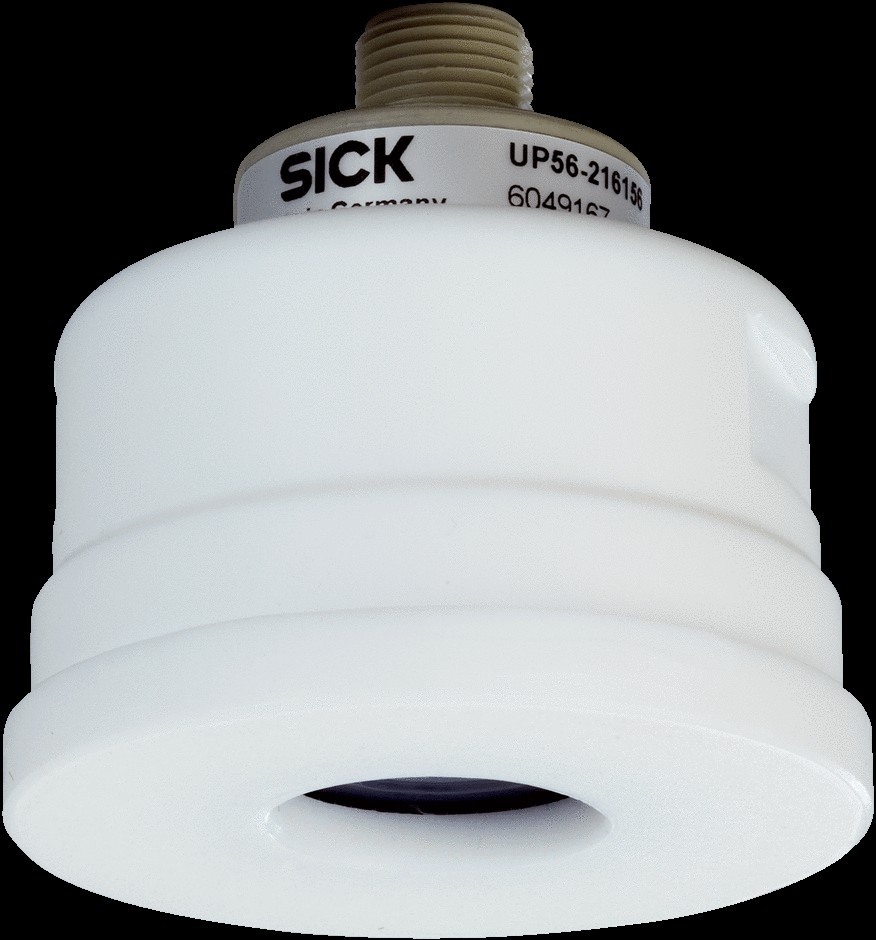

The SICK UP56-216156 ultrasonic level sensor is an advanced level ultrasonic sensor and ultrasonic level detector designed for high-demand industrial applications. It delivers precise level measurements in complex environments, featuring non-contact measurement, strong corrosion resistance, and fast response times. This level ultrasonic sensor is suitable for level detection of various liquid media, and it also serves as a highly effective ultrasonic level detector in challenging industrial environments.
Product Specifications
Measurement Range: 65 mm to 700 mm in containers; 65 mm to 1,500 mm in dip tubes.
Operating Temperature: -25°C to +85°C.
Housing Protection Rating: IP67, suitable for harsh environments.
Output Signal: 4 mA to 20 mA.
Ultrasonic Frequency: 200 kHz.
Supply Voltage: 9 V DC to 30 V DC.
Response Time: ≤ 84 ms.
Accuracy: ≤ 1% of full scale, repeatability ±0.15%.
Product Features
Corrosion-Resistant Design: The level ultrasonic sensor features PTFE coating and FFKM materials, capable of withstanding pressures up to 6 bar, making it suitable for aggressive chemical media.
High-Precision Measurement: It offers high accuracy and fast response, ideal for continuous level measurement.
Flexible Installation: Supports multiple installation methods, including GF connections and M12 round connectors.
Smart Adjustment: Parameters and hysteresis can be flexibly set using the Connect+ adapter.
Applications
The UP56-216156 ultrasonic level sensor is widely used in the following industries:
Chemical Industry: For level monitoring of acids, alkalis, and solvents.
Pharmaceutical Industry: Suitable for hygienic liquid measurements.
Food and Beverage Industry: Ensures continuous production by monitoring liquid levels.
Electronics and Solar Industry: Applicable for wet chemical processes.
Installation and Usage Instructions
Installation:
Ensure the level ultrasonic sensor is installed in a vibration-free environment with minimal electromagnetic interference.
Use appropriate connectors and cables, and ensure proper grounding.
Avoid installing the level ultrasonic sensor above liquid surfaces with foam or vapor.
Parameter Settings:
Configure parameters such as measurement range, output signal, and hysteresis using the Connect+ adapter.
Adjust the level ultrasonic sensor's operating mode based on application requirements.
Maintenance and Inspection:
Regularly clean the level ultrasonic sensor surface to prevent dirt from affecting measurement accuracy.
Check cable connections for stability and ensure reliable signal transmission.
Periodically calibrate the level ultrasonic sensor to ensure accurate measurements.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or highly corrosive environments.
Power Supply Requirements: Ensure stable supply voltage to prevent sensor performance issues.
Safe Operation: Always disconnect power before performing maintenance or cleaning.
Frequently Asked Questions (FAQ)
1. What is the measurement accuracy of the UP56-216156?
The measurement accuracy is ≤1% of the full scale, with repeatability of ±0.15%. This high-precision design meets the needs of most industrial applications.
2. How to choose the installation location for the ultrasonic level sensor?
Select a location free from vibration and electromagnetic interference, and avoid areas with foam or vapor on the liquid surface.
Ensure the measurement path is unobstructed to reduce signal interference.
3. Is the UP56-216156 suitable for corrosive liquids?
The level ultrasonic sensor's measuring port is coated with PTFE and made of FFKM material, capable of withstanding pressures up to 6 bar, making it suitable for various corrosive liquids.
Confirm compatibility based on the specific chemical properties of the liquid.
4. How to calibrate the ultrasonic level detector?
Calibration requires parameter adjustment using the Connect+ adapter.
Users can set the measurement range, output signal, and hysteresis based on application needs.
Regular calibration ensures accurate measurements; it is recommended to calibrate every 3 to 6 months.
5. What is the response time of the ultrasonic level sensor?
The response time is ≤84 ms, allowing for rapid detection of level changes.
This fast response capability is ideal for dynamic level monitoring and timely feedback.
Users can adjust the response time based on actual needs to optimize measurement performance.
6. How to clean the level ultrasonic sensor?
Gently wipe the sensor surface with a soft cloth, avoiding corrosive cleaning agents.
Regularly remove dirt and dust to ensure measurement accuracy.
Ensure the sensor is powered off during cleaning to avoid electrical hazards.
7. What are the power supply requirements for the level ultrasonic sensor?
The supply voltage range is 9 V DC to 30 V DC, suitable for various power environments.
Ensure stable voltage to prevent damage to the sensor.
The sensor features reverse polarity protection to prevent damage from incorrect wiring.
8. How to choose the cable for the ultrasonic level sensor?
The sensor supports various cable types, including PUR and PVC.
Select the appropriate cable based on the application environment (e.g., PVC for chemical environments).
Ensure secure cable connections and avoid placing signal and power cables close together to reduce electromagnetic interference.
9. What is the housing protection rating of the level ultrasonic sensor?
The level ultrasonic sensor has an IP67 protection rating, effectively preventing dust and water ingress.
This high protection rating ensures stable operation in harsh industrial environments.
Ensure the sensor housing is properly sealed during installation to maintain its protection performance.
10. How to adjust the hysteresis of the ultrasonic level detector?
Hysteresis can be adjusted using the Connect+ adapter, with a range of 1 mm to 5 mm.
Adjusting hysteresis reduces false triggering and improves measurement stability.
Set the hysteresis based on actual application needs.
