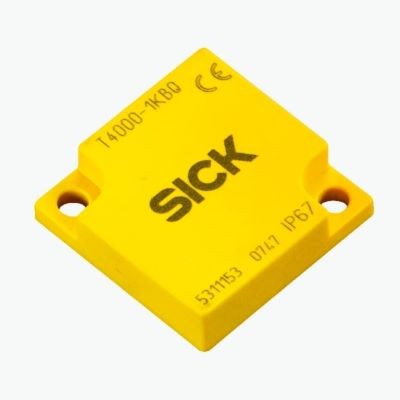

The SICK T4000-1KBQ is an activator designed for wireless radiofrequency identification (sick RFID) safety lock switches, compatible with the T4000 Compact and T4000 Direct series. This product features a square design, with a PBT housing and a weight of 70 grams. It operates within an environmental temperature range of 25°C to +70°C. Utilizing sick RFID technology, it triggers safety lock switches as non contact type sensor and is widely used in industrial automation safety applications, such as the control of mechanical guard doors.



T4000-1KBQ:for Non Contact Type Sensor Sick RFID Safety Lock Switch

Product Specifications

Design: Square shape.

Housing Material: PBT.

Weight: 70 grams.

Operating Temperature Range: 25°C to +70°C.

Storage Temperature Range: 25°C to +70°C.



Product Features

High Reliability: Designed for RFID safety switch systems to ensure stable operation in complex industrial environments.

Compact Design: Square structure with a small footprint, making it easy to install in limited spaces.

Strong Environmental Adaptability: Capable of operating within a wide temperature range, suitable for various industrial scenarios.



Applications

The SICK T4000-1KBQ is primarily used in safety protection systems within industrial automation, such as the control of mechanical guard doors. It acts as non contact type sensor through RFID technology, ensuring the safety of operators.



Instructions for Use

Installation and Wiring

Installation Environment: Choose a dust-free, noncorrosive, and low-electromagnetic interference environment with good ventilation for the device.

Wiring Requirements: Follow the wiring diagram in the product manual to ensure correct connections for power, signal, and control lines.

Grounding Protection: Ensure proper grounding of the device in accordance with national and local electrical safety regulations.



Parameter Settings

Basic Parameter Settings: Configure the sensor's operating mode and safety distance based on application requirements.

Advanced Function Configuration: Supports cascading with other safety devices to achieve complex safety control logic.



Precautions

Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance degradation and reduced lifespan.

Safe Operation: Avoid contact with live parts during device operation to ensure operator safety.

Maintenance: Regularly inspect the device's appearance and connection status to ensure there is no damage or loosening.



Frequently Asked Questions (FAQ)

How to Set the Safety Distance for T4000-1KBQ?

Importance of Safety Distance: Safety distance is a critical parameter to ensure that the device complies with safety standards during operation. The safety distance for T4000-1KBQ includes the safe activation distance (Sao) and the safe release distance (Sar), which depend on the paired sensor.

Setting Method: The values of Sao and Sar vary depending on the sensor model used. For example, when paired with the T40E0101K sensor, Sao is 18 mm and Sar is 55 mm.

Precautions: Ensure that the activator is installed within the specified safety distance to avoid false triggering or safety failures.

What Are the Installation Requirements for T4000-1KBQ?

Installation Environment: Install in a well-ventilated, dust-free, and noncorrosive environment. Avoid high-temperature, high-humidity, or strong electromagnetic interference areas.

Installation Method: Attach the activator to the guard door or moving parts, ensuring alignment with the sensor and within the specified safety distance.

Fixing Requirements: Secure the activator using the provided safety screws to prevent loosening or displacement.



How to Use T4000-1KBQ with Sensors?

System Principle: The T4000-1KBQ communicates with the sensor via RFID technology, triggering the safety switch when the activator enters the sensor's detection range.

Usage Method: Ensure the activator is aligned with the sensor's detection surface and within the specified safety distance. Check the alignment during installation to avoid false triggering.

Precautions: Regularly inspect the cooperation between the activator and the sensor to ensure proper operation.



What Maintenance Precautions Should Be Taken for T4000-1KBQ?

Visual Inspection: Regularly check the activator for damage or abnormalities, such as cracks in the housing or loose screws.

Environmental Cleaning: Keep the installation environment clean to prevent dust or debris from affecting the activator's operation.

Function Testing: Periodically test the function to ensure proper cooperation between the activator and the sensor.



What Are the Storage Requirements for T4000-1KBQ?

Temperature Range: Store within a temperature range of 25°C to +70°C.

Storage Environment: Keep in a dry, noncorrosive environment, avoiding direct sunlight.

Packaging Protection: Store in the original packaging to prevent dust and debris ingress.



What to Do if the Device Is Non-Responsive?

If the device does not respond after power connection (e.g., the green LED status light does not blink), return the safety switch to the manufacturer.



How to Adjust the Detection Direction?

The detection direction can be changed by rotating the read head in 90° increments until the desired orientation is achieved.



Does SICK T4000-1KBQ Support Fail-Safe Functionality?

Yes, the device supports failsafe functionality. Its safety outputs (LA/LB) are short-circuit protected but do not support reverse polarity protection.



How to Troubleshoot the Device?

The LED status indicator can be used to determine the device's status and identify fault causes. Specific statuses and fault codes can be referenced in the device's operating manual.



What Are the Maintenance Requirements for SICK T4000-1KBQ?

Regular cleaning of the device is required, along with ensuring proper installation location and periodic inspection of safety functions to ensure normal operation.
