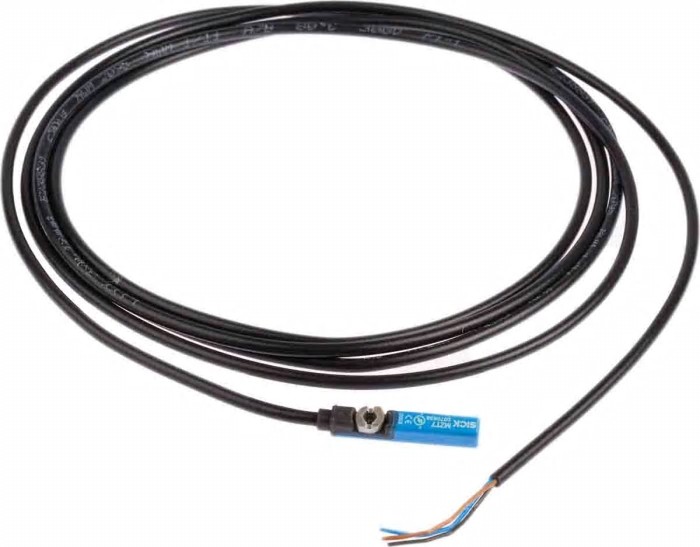

The PNP sensor MZT7-03VPS-KW0 is a magnetic proximity sensor designed for T-slot cylinders, offering precise detection in industrial automation. This magnetic prox sensor, produced by SICK, ensures reliable performance in complex environments. The magnetic prox sensor is compatible with various types of cylinders, including round, rod, and T-slot cylinders. Its compact design and flexible mounting options make it an ideal choice for automated production lines.
Product Specifications
Housing Length: 29.5 mm.
Electrical Specifications: 10 V DC to 30 V DC.
Switching Frequency: 1,000 Hz.
Output Type: PNP sensor normally open contact.
Current Consumption: 8 mA (no load).
Maximum Continuous Current: ≤100 mA.
Voltage Drop: ≤2 V.
Protection Rating: IP65/IP67.
Operating Temperature Range: -30°C to +70°C.
Connection: 3-core cable, 2 meters in length.
Product Features
High Sensitivity: Typical sensitivity of 3 mT with hysteresis less than 0.8 mT.
Strong Interference Resistance: Features reverse polarity protection and short-circuit protection.
Easy Installation: Compatible with various cylinder types and equipped with an LED status indicator.
Durability: Plastic housing and PVC cable for enhanced durability.
Application Scenarios
Industrial Automation Production Lines: Detecting the position and motion state of cylinder pistons using a magnetic proximity sensor.
Mechanical Manufacturing: Achieving precise control in robots, conveyors, and other equipment using the magnetic prox sensor.
Chemical and Food Processing: Suitable for harsh environments requiring high protection ratings, ideal for magnetic proximity sensor applications.
Instructions for Use
Installation and Wiring
Installation Environment: Choose a dust-free, non-corrosive, and low-electromagnetic-interference environment for the PNP sensor.
Wiring Requirements: Follow the product manual strictly to ensure correct connections of power and signal lines for the magnetic proximity sensor.
Grounding Protection: Ensure proper grounding in accordance with electrical safety standards.
Parameter Settings
Basic Parameters: Set the operating voltage and switching frequency based on application requirements for the magnetic prox sensor.
Advanced Functions: Configure sensitivity and hysteresis parameters to adapt to different scenarios.
Maintenance and Inspection
Regular Inspection: Check for housing damage and cable wear.
Cleaning and Maintenance: Regularly clean dust from the sensor surface to ensure proper operation.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments for magnetic prox sensors.
Power Requirements: Ensure stable supply voltage to prevent voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation.
FAQs
1. What is the sensitivity of the MZT7-03VPS-KW0?
Importance of Sensitivity: Sensitivity is a key performance metric for magnetic proximity sensors, directly affecting detection accuracy and response speed. The MZT7-03VPS-KW0 has a typical sensitivity of 3 mT, enabling rapid response to magnetic field changes.
Performance in Applications: In industrial automation, high-sensitivity sensors like the PNP sensor can achieve precise position detection and motion control, such as accurately detecting the motion state of cylinder pistons.
Optimizing Sensitivity: Users can adjust sensitivity parameters based on actual needs to adapt to different working environments and load conditions, ensuring optimal performance from the magnetic prox sensor.
2. What is the protection rating of this sensor?
Protection Rating Explanation: The MZT7-03VPS-KW0 has IP65 and IP67 protection ratings, effectively preventing dust ingress and allowing operation under short-term immersion.
Application Scenarios: This high protection rating makes it suitable for harsh industrial environments, such as chemical and food processing, where a magnetic prox sensor is needed.
Maintenance Suggestions: Despite the high protection rating, users should regularly inspect the sensor's sealing performance to ensure long-term stable operation of the magnetic proximity sensor.
3. What is the operating temperature range of the MZT7-03VPS-KW0?
Temperature Range: The sensor operates within -30°C to +70°C, ensuring stable performance in extreme conditions. This wide range makes the PNP sensor suitable for diverse applications.
Impact of Temperature on Performance: In low-temperature environments, sensitivity and response speed may slightly decrease. Preheating is recommended for low-temperature applications. In high-temperature environments, ensure proper cooling for the magnetic prox sensor.
Environmental Adaptability: Users should choose appropriate installation locations and cooling measures based on actual working conditions to extend the lifespan of the magnetic proximity sensor.
4. How to choose the right mounting bracket?
Importance of Mounting Brackets: Mounting brackets ensure the stability and accuracy of the sensor. For example, a dedicated bracket is recommended for SMC T-slot cylinders.
Bracket Selection Tips: Choose bracket materials and fixing methods based on cylinder type and installation requirements. For round cylinders, plastic or aluminum brackets are recommended to secure the PNP sensor.
Installation Precautions: Ensure alignment between the sensor and cylinder during installation, and tighten screws according to the manual's requirements to achieve optimal performance with the magnetic prox sensor.
5. What is the cable length of the MZT7-03VPS-KW0?
Cable Length: The sensor comes with a 2-meter 3-core cable, which meets most industrial wiring needs for magnetic proximity sensors.
Cable Characteristics: The cable has a diameter of 2.9 mm, a conductor cross-sectional area of 0.12 mm², and is made of PVC, which offers good flexibility and aging resistance.
Wiring Precautions: Avoid running the cable close to power lines to reduce electromagnetic interference. Ensure the cable's bending radius meets the requirements, especially for PNP sensor installations.
6. How to troubleshoot faults?
Fault Codes: When a fault occurs, the LED indicator will show an abnormal status. Users can refer to the troubleshooting guide in the manual to identify the issue.
Common Faults and Solutions:
Reduced Sensitivity: Caused by dust or dirt accumulation. Clean the sensor surface for proper magnetic prox sensor function.
Communication Faults: Check cable connections and ensure stable supply voltage for the magnetic proximity sensor.
Abnormal Output: Caused by excessive load or short circuits. Check the load and circuit to avoid damaging the PNP sensor.
• Maintenance Suggestions: Regularly inspect the sensor's appearance and cable connections to ensure they are in good condition.
7. How is the shock and vibration resistance of the MZT7-03VPS-KW0?
Shock and Vibration Resistance: The sensor can withstand shocks up to 30 g and vibrations between 10 and 55 Hz, ensuring stable operation in high-vibration and impact environments.
Application Scenarios: In mechanical manufacturing and robotics, this resistance ensures reliability in dynamic environments, making it ideal for PNP sensors.
Installation Suggestions: In high-vibration environments, use shock-absorbing materials or mounting brackets to reduce the impact of vibrations on the magnetic proximity sensor.
8. Does the sensor support customization?
Customization Options: SICK offers various customization services, including cable length, connection types, and housing materials for the magnetic prox sensor.
Customization Process: Users can submit customization requests and obtain quotes through the SICK website or by contacting technical support.
Advantages of Customization: Customized sensors can better meet specific application requirements, enhancing overall equipment performance and reliability, especially for magnetic proximity sensors in specialized settings.
9. How to extend the sensor's lifespan?
Regular Maintenance: Regularly inspect the sensor's appearance, cable connections, and operational status. Clean dust and dirt promptly to maintain the performance of the PNP sensor.
Environmental Optimization: Ensure the sensor is installed in suitable conditions, avoiding high temperature, humidity, and electromagnetic interference that could damage the magnetic prox sensor.
Correct Operation: Follow the manual for installation and operation to avoid overloading and short circuits that could affect the longevity of the magnetic proximity sensor.
10. What is the maximum continuous current of the MZT7-03VPS-KW0?
Current Specifications: The sensor has a maximum continuous current of 100 mA, which meets most industrial load requirements for magnetic proximity sensors.
Impact of Current on Performance: Near the maximum current, the sensor's temperature may rise, affecting its performance and lifespan. For optimal results, ensure that the PNP sensor is not overloaded.
Load Management: Users should configure the load reasonably based on application needs and ensure proper cooling for the magnetic prox sensor to avoid overheating.
