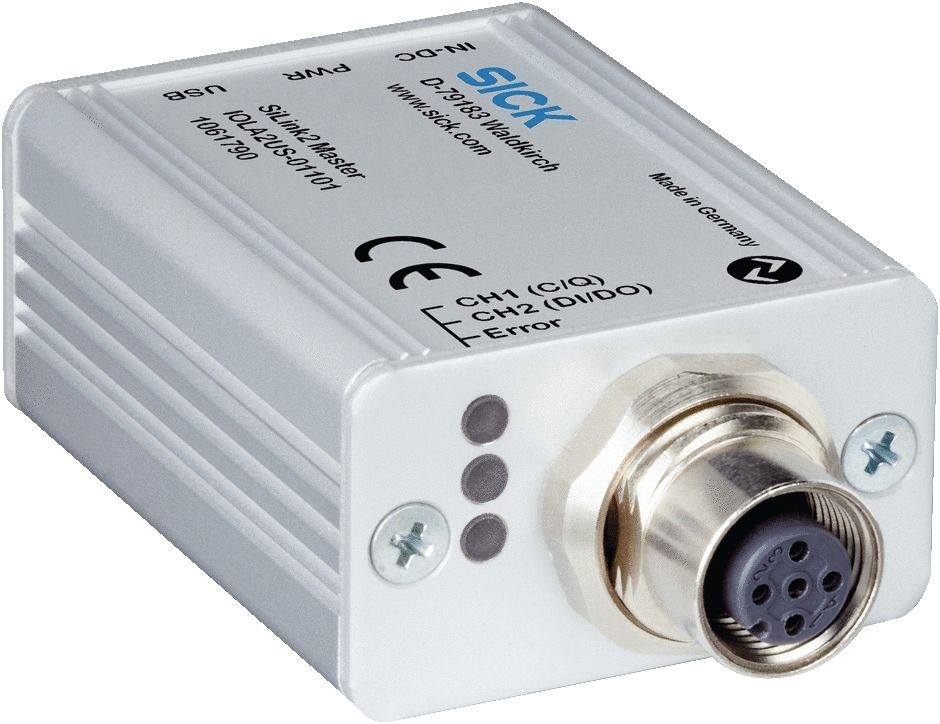

The IOLA2US-01101 (SiLink2 Master) is a connection module produced by SICK. It serves as an adapter between IO-Link sensors and PCs running the Windows operating system. Supporting IO-Link V1.1 Class A ports and equipped with a USB 2.0 interface, it also offers an optional external power supply of 24V / 1A. With an IP20-rated enclosure, this device is suitable for a variety of industrial automation scenarios, enabling efficient configuration and management of IO-Link sensors through a reliable IO-Link connection.
Product Specifications
Interface Type: USB 2.0 interface, M12 A-coded interface.
Power Requirements: Powered via the USB port with a maximum current of 500mA; external power supply is 24V DC with a maximum current of 1A.
Dimensions: 41mm x 54mm x 16mm.
Operating Temperature: Operating temperature range is 0°C to +45°C; storage temperature range is -40°C to +80°C.
Protection Rating: IP20.
Product Features
Multi-functional Interface: Equipped with an IO-Link V1.1 Class A port, it is compatible with a variety of IO-Link sensors, ensuring a seamless IO-Link connection.
Flexible Power Supply: It can be powered via the USB port or an external 24V power source, providing a stable IO-Link connection.
Status Indicators: Multiple LED indicators are provided to display power status, IO-Link connection status, and error messages, making it easy to monitor the IO-Link connection.
Easy Configuration: With SOPAS ET or FDT-based configuration programs, users can easily configure the connected IO-Link sensors, optimizing the IO-Link connection for various applications.
Application Scenarios
The IOLA2US-01101 (SiLink2 Master) is widely used in the field of industrial automation, primarily for configuring and managing IO-Link sensors. It is suitable for various applications that require device configuration and debugging via a PC, such as the setup and optimization of sensors and actuators, all facilitated by a robust IO-Link connection.
Installation and Wiring
Installation Environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation to ensure a reliable IO-Link connection.
Wiring Requirements: Connect the SiLink2 Master to the PC using the provided USB cable and connect the IO-Link device using a sensor cable. If the IO-Link device's power consumption exceeds 80mA, an external power supply must be connected to maintain a stable IO-Link connection.
Parameter Settings
Basic Settings: Set the device's basic parameters, such as communication parameters and power mode, through the configuration program to establish an efficient IO-Link connection.
Advanced Configuration: Depending on the specific application requirements, configure more advanced settings, such as data exchange modes and error handling, to optimize the IO-Link connection.
Maintenance and Inspection
Regular Inspection: Regularly check the device's appearance, the firmness of the connection cables, and the status of the LED indicators to ensure a continuous and stable IO-Link connection.
Cleaning and Maintenance: Keep the device surface clean to prevent dust accumulation that may affect heat dissipation and potentially disrupt the IO-Link connection.
Precautions
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent disruptions in the IO-Link connection.
Power Requirements: Ensure stable power supply voltage to prevent damage to the device from voltage fluctuations, which could affect the IO-Link connection.
Safe Operation: Avoid contact with live parts during device operation to ensure the safety of the operator and maintain the integrity of the IO-Link connection.
FAQ
1. How to connect the SiLink2 Master with IO-Link sensors?
Connection Steps: First, connect the SiLink2 Master to the PC's USB port using a USB cable. Then, connect the IO-Link device to the SiLink2 Master's M12 port using a sensor cable. If the device's power consumption is high, connect an external 24V power supply to ensure a stable IO-Link connection.
Precautions: Ensure that the specifications of the connection cables meet the requirements to avoid device damage due to improper connections, which could disrupt the IO-Link connection.
Test Connection: After connection, check if the device is successfully connected through the configuration program and perform basic function tests to verify the IO-Link connection.
2. What do the LED indicators on the SiLink2 Master mean?
PWR LED: Yellow indicates power supply via the USB port.
CH1 (C/Q) LED: Slow green flashing indicates no IO-Link connection; rapid flashing indicates the connection is in "pre-operational" mode; steady light indicates data exchange is in progress, confirming a successful IO-Link connection.
CH2 (DI/DO) LED: Yellow indicates SIO mode.
Error LED: Red indicates errors, such as short circuits or data transmission errors, which could affect the IO-Link connection.
3. How to choose the right configuration program?
Configuration Program Selection: The SiLink2 Master supports various configuration programs, such as SOPAS ET or FDT-based programs. Users can choose the program that best suits their needs and familiarity to configure the IO-Link connection.
Installation and Configuration: After installing the configuration program, follow the program's wizard to connect the device and set parameters for an optimal IO-Link connection.
Precautions: During configuration, ensure stable power supply and follow the program's prompts step by step to avoid issues with the IO-Link connection.
4. What is the operating temperature range of the SiLink2 Master?
Operating Temperature: The operating temperature range of the SiLink2 Master is 0°C to +45°C.
- Storage Temperature: The storage temperature range is -40°C to +80°C.
Environmental Adaptability: Device performance may be affected in extreme temperature conditions, so it is recommended to use it within the specified temperature range to maintain a stable IO-Link connection.
5. How to ensure stable power supply for the SiLink2 Master?
Power Requirements: The SiLink2 Master can be powered via the USB port with a maximum current of 500mA. For IO-Link sensors with higher power consumption, an external 24V power supply is recommended to ensure a stable IO-Link connection.
Power Stability: Ensure stable power supply voltage to prevent device damage from voltage fluctuations, which could disrupt the IO-Link connection.
Precautions: After device power-off, wait for a certain period before re-powering to avoid device damage and ensure a reliable IO-Link connection.
6. What are the maintenance requirements for the SiLink2 Master?
Regular Inspection: Regularly check the device's appearance for damage, the firmness of the connection cables, and the status of the LED indicators to ensure a continuous IO-Link connection.
Cleaning and Maintenance: Keep the device surface clean, regularly remove dust, and ensure good heat dissipation to prevent disruptions in the IO-Link connection.
Troubleshooting: If the device malfunctions, promptly check the error indicator lights and troubleshoot according to the manual to restore the IO-Link connection.
7. How to choose the right sensor cable?
Cable Type: Choose the appropriate sensor cable based on the requirements of the IO-Link device, such as 3-core or 4-core cables, to ensure a stable IO-Link connection.
Cable Length: Select a cable of suitable length according to the actual application needs to maintain an efficient IO-Link connection.
Precautions: Ensure that the shielding layer of the cable is properly grounded to reduce electromagnetic interference, which could affect the IO-Link connection.
8. What are the installation location requirements for the SiLink2 Master?
Installation Environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation to ensure a reliable IO-Link connection.
Installation Method: Ensure the device is installed vertically for good heat dissipation, which helps maintain a stable IO-Link connection.
Power Connection: When connecting the power supply, ensure that the power cable specifications meet the requirements and pay attention to the correct phase sequence to avoid disruptions in the IO-Link connection.
9. How to configure the communication parameters of the SiLink2 Master?
Communication Protocol: The SiLink2 Master supports the IO-Link V1.1 protocol.
Parameter Settings: Set the device's communication parameters, such as baud rate and data bits, through the configuration program to establish a reliable IO-Link connection.
Precautions: Ensure that the communication parameters are consistent with the connected IO-Link device to achieve reliable communication and maintain a stable IO-Link connection.
10. What are the materials and manufacturing processes of the SiLink2 Master?
Materials: The enclosure is made of high-quality plastic material with good protective properties, ensuring a durable IO-Link connection.
Manufacturing Processes: The device is manufactured using advanced processes to ensure its reliability and durability in various industrial environments, providing a stable IO-Link connection.
Protection Rating: The enclosure has an IP20 protection rating, effectively preventing dust and liquid ingress, which helps maintain a reliable IO-Link connection.
11. What are the additional functions of the SiLink2 Master?
Status Indicators: Real-time display of device working status through LED indicators, allowing users to monitor the IO-Link connection.
Power Management: Support for power supply via the USB port or external power source, adapting flexibly to different usage scenarios while maintaining a stable IO-Link connection.
Data Exchange: Support for efficient data exchange to ensure smooth communication between the device and the PC, optimizing the IO-Link connection.
12. What are the product advantages of this SiLink2 Master?
Strong Compatibility: Compatible with a variety of IO-Link sensors, ensuring a seamless IO-Link connection.
Easy Configuration: Simple configuration programs allow users to quickly complete device configuration and debugging, optimizing the IO-Link connection for various applications.
High Reliability: Made with high-quality materials and advanced manufacturing processes, ensuring stable operation in various industrial environments and a reliable IO-Link connection.
13. What is the after-sales service like?
Technical Support: SICK provides comprehensive technical support, including product consultation and troubleshooting, to help users maintain a stable IO-Link connection.
Warranty Policy: The device comes with a warranty service for a certain period. For specific warranty terms, refer to the product manual.
Customer Feedback: Users can provide feedback on their usage experience and suggestions to SICK through various channels to continuously improve products and services, ensuring a better IO-Link connection for future users.
