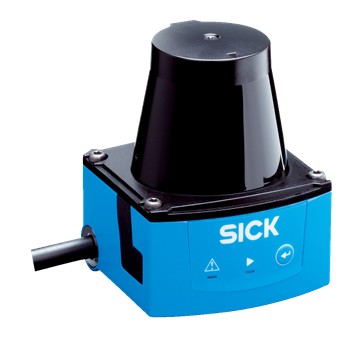

The SICK TIM310-1030000 is a high-performance 2D LiDAR utilizing advanced infrared photo sensor technology. Designed for object detection, position determination, and area protection in indoor environments, it delivers precise scanning and measurement capabilities. With its compact design, high reliability, and robust environmental adaptability, it has become an ideal choice for industrial automation and robotic navigation.
Product Specifications
Measurement Principle: HDDM+, using infrared light (850 nm) as the light source.
Scanning Angle: Horizontal 270°, with an angular resolution of 1°.
Scanning Frequency: 15 Hz, with a single-scan response time of 67 ms.
Operating Range: 0.05 m to 4 m; scanning range up to 2 m under 10% diffuse reflection.
Connection: 15-pin D-Sub-HD device plug, Micro-USB interface for parameterization and service.
Power Requirements: 9 V DC to 28 V DC, with a typical power consumption of 4 W.
Enclosure Protection: IP65, suitable for harsh industrial environments.
Dimensions and Weight: 60 mm × 60 mm × 79 mm, weighing only 150 g.
Product Features
High-Precision Detection: The infrared photo sensor technology enables detection of objects of almost any shape, with a system error of only ±40 mm and a statistical error less than 30 mm.
Flexible Application Configuration: Supports 16 sets of triple-zone evaluation (48 zones), which can be configured directly on the scanner.
Strong Environmental Adaptability: Operates within a temperature range of +25°C to +55°C and resists ambient light up to 80,000 lx, ensuring stable performance in complex environments.
Long-Life Design: With an MTBF (Mean Time Between Failures) exceeding 100 years, it ensures high reliability and low maintenance costs.
Application Scenarios
Indoor Navigation and Obstacle Avoidance: In robots and automated equipment, the TIM310-1030000 can detect obstacles in real-time for autonomous navigation. Its 2D LiDAR technology rapidly generates environmental maps to help devices accurately locate themselves.
Logistics and Warehousing: Used for detecting the position of goods, measuring dimensions and volume, and optimizing storage space. The infrared photo sensor works effectively under low reflectivity conditions, adapting to various object surfaces.
Industrial Automation: Utilized in production lines for object detection, position alignment, and area protection. The 2D LiDAR technology continuously monitors the working area to ensure production safety.
Safety Protection: Detects the proximity of personnel and equipment to prevent accidental collisions. The infrared photo sensor provides high-precision detection capabilities, ensuring the reliability of safety protection.
User Instructions
Installation and Commissioning
Installation Environment: Choose an environment free of strong electromagnetic interference and corrosive gases, ensuring good device ventilation.
Connection and Configuration: Use the Micro-USB interface for parameter settings, ensuring the scanning frequency and operating range meet application requirements. The infrared photo sensor provides quick response and high-precision scanning data.
Maintenance and Inspection
Regular Cleaning: Clean the optical lens cover and enclosure to prevent dust from affecting scanning accuracy. The infrared photo sensor is sensitive to dust, and regular cleaning ensures optimal performance.
Check Connections: Regularly inspect the power and signal cables to ensure they are securely connected, maintaining stable device operation.
Troubleshooting: Use the status indicator lights (red and green LEDs) to determine the device's operating status. The 2D LiDAR provides intuitive status feedback for quick problem identification.
Precautions
Environmental Conditions: Avoid using the device in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent affecting the performance of the infrared photo sensor.
Power Requirements: Ensure stable power voltage to avoid damage to the device from voltage fluctuations.
Safe Operation: Avoid contact with live parts during device operation to ensure operator safety. Although the 2D LiDAR device is safe and reliable, standard operating procedures must be followed.
Materials and Manufacturing
The TIM310-1030000 is crafted from high-quality materials and advanced manufacturing processes to ensure its reliability and durability in complex industrial environments. The enclosure is made of anodized aluminum, offering excellent corrosion and wear resistance while maintaining a lightweight design. This material not only enhances the device's physical strength but also allows it to withstand various harsh conditions, such as dust, humidity, and high temperatures. Additionally, the enclosure's IP65 protection rating effectively prevents dust and water jets, ensuring long-term stability in industrial applications.
Additional Features
The TIM310-1030000 not only offers basic 2D LiDAR functionality but also integrates multiple additional features. For example, it supports 16 sets of triple-zone evaluation (48 zones), allowing users to configure these zones flexibly according to specific needs. The device also provides four digital outputs and four digital inputs, supporting various signal types (such as serial, CANopen, and digital I/O) for seamless integration with different automation systems. With SICK's SOPAS ET software, users can quickly and intuitively commission and configure the device, further enhancing its ease of use and flexibility.
Product Advantages
The main strengths of the TIM310-1030000 lie in its high performance and reliability. Equipped with HDDM+ technology, the device can operate stably under low reflectivity conditions (4% to 1000%) with a system error of only ±40 mm. This high-precision measurement capability makes it excel in applications such as robotic navigation, logistics monitoring, and industrial automation. Moreover, its compact design (60 mm × 60 mm × 79 mm) and lightweight (only 150 g) make it easy to integrate into space-limited applications, such as AGVs and AMRs. With an MTBF exceeding 100 years, the device further enhances its reliability and cost-effectiveness.
After-Sales Service
SICK offers comprehensive after-sales service for the TIM310-1030000, ensuring users have no worries during use. The company provides professional technical support, including device commissioning, configuration, and maintenance services. Additionally, SICK offers various accessories and expansion modules, such as mounting brackets, extension cables, and USB interface modules, to meet different user needs. Users can obtain detailed technical documentation and service information through the SICK official website.
Frequently Asked Questions
1.How does the infrared photo sensor of the TIM310-1030000 work?
The infrared photo sensor operates based on the principles of infrared light emission and reception. The TIM310-1030000 uses 850 nm infrared light as its light source, which offers strong penetration and low power consumption. The sensor emits infrared light, which is reflected back when it hits an object. The receiver captures the reflected light and converts it into an electrical signal, enabling object detection and distance measurement.
The device's HDDM+ technology further enhances detection precision and anti-interference capabilities. It can operate stably under low reflectivity conditions (4% to 1000%) with a system error of only ±40 mm. This high-precision measurement capability ensures stable performance in complex industrial environments, detecting objects of almost any shape and ensuring stable operation under various reflectivity conditions.
Additionally, the infrared photo sensor of the TIM310-1030000 has strong resistance to ambient light, functioning normally in lighting conditions up to 80,000 lx. This design ensures the device's stability and reliability in high-brightness environments, allowing it to operate reliably in various industrial scenarios.
2.How can the scanning range and frequency of the TIM310-1030000 2D LiDAR be configured?
The TIM310-1030000 has a scanning range of 0.05 m to 4 m and a scanning frequency of 15 Hz. Users can configure parameters through the Micro-USB interface to adjust the scanning range and frequency according to application needs. For example, in robotic navigation, the scanning frequency can be set to 15 Hz for rapid environmental perception.
The device supports 16 sets of triple-zone evaluation (48 zones), which can be configured directly on the scanner. This flexible configuration allows it to adapt to various application scenarios. For example, in logistics and warehousing, multiple detection zones can be set to optimize the detection of goods' positions.
Additionally, the device's scanning angle of 270° covers a large area, making it excel in applications such as indoor navigation, obstacle avoidance, and safety protection. It can quickly generate environmental maps and monitor the surroundings in real-time.
3.Is the infrared light of the TIM310-1030000 safe for the human eye?
The TIM310-1030000 has a laser classification of Class 1 (IEC 60825-1:2014), which complies with international safety standards. This means that its infrared light is safe for the human eye under normal usage conditions. However, to ensure safety, it is recommended to avoid looking directly at the sensor's emission area during operation.
This design not only ensures the safety of operators but also allows the device to be used safely in various industrial environments. The 850 nm infrared light belongs to the near-infrared spectrum, offering strong penetration with minimal potential harm to the human eye.
Additionally, the device's design prioritizes safety and reliability, with proper heat dissipation and an IP65 enclosure protection rating, further reducing usage risks.
4.What is the protection rating of the TIM310-1030000?
The TIM310-1030000 has an IP65 enclosure protection rating. This means the device is dustproof and resistant to water jets, making it suitable for harsh industrial environments. Users can confidently install it in dusty or humid conditions without worrying about environmental damage.
This high protection rating allows the device to operate stably in complex industrial environments. For example, in logistics, warehousing, and industrial automation scenarios, the device may be exposed to dust, moisture, or other contaminants. The IP65 rating effectively protects the device from these factors.
Additionally, the device's compact size (60 mm × 60 mm × 79 mm) and lightweight (only 150 g) make it easy to install in tight spaces, further enhancing its flexibility in industrial applications.
5.How to reduce the impact of ambient light on the infrared photo sensor of the TIM310-1030000?
The TIM310-1030000 has strong resistance to ambient light, functioning normally in lighting conditions up to 80,000 lx. To minimize the impact of ambient light, it is recommended to avoid direct exposure to strong light sources during installation. Regular cleaning of the optical lens cover can also effectively improve the scanning accuracy of the infrared photo sensor.
The device's HDDM+ technology further enhances its performance in high-brightness environments. This technology optimizes signal processing and anti-interference capabilities, ensuring stable operation under complex lighting conditions.
Additionally, the infrared photo sensor uses 850 nm infrared light as its light source, which is less sensitive to ambient light, further enhancing the device's reliability in complex environments.
6.What is the MTBF of the TIM310-1030000?
The TIM310-1030000 has an MTBF (Mean Time Between Failures) exceeding 100 years. This long-life design is thanks to its high-performance infrared photo sensor and robust enclosure. Users can confidently use the device without frequent replacements.
This high-reliability design ensures excellent performance during long-term operation. For example, in industrial automation and robotic navigation applications, the device needs to operate stably for extended periods. The MTBF exceeding 100 years ensures its reliability in these scenarios.
Additionally, the device's compact design and high-performance components further enhance its stability in complex environments.
7.Can the scanning frequency of the TIM310-1030000 be adjusted?
The TIM310-1030000 has a standard scanning frequency of 15 Hz. Although the scanning frequency is fixed, users can optimize performance by adjusting the scanning range and angular resolution. For example, in applications requiring higher precision, the scanning range can be narrowed to 2 m.
This design allows the device to flexibly adjust performance in different application scenarios. For example, in robotic navigation, a rapid scanning frequency helps the device quickly perceive environmental changes, enabling more efficient autonomous navigation.
Additionally, the device's 2D LiDAR technology can generate environmental maps in real-time, further enhancing its adaptability to complex environments.
8.What are the installation options for the TIM310-1030000?
The TIM310-1030000 can be mounted on walls or brackets using its base mounting interface. Its compact size (60 mm × 60 mm × 79 mm) allows for easy installation in tight spaces. For optimal performance, it is recommended to install the device in a well-ventilated environment free of strong electromagnetic interference.
The device offers flexible installation options suitable for various application scenarios. For example, in logistics and warehousing, it can be mounted on shelves to detect the position and volume of goods.
Additionally, the device's IP65 enclosure protection rating effectively protects against dust and water, ensuring stable operation in harsh environments.
9.What is the operating temperature range of the TIM310-1030000?
The TIM310-1030000 operates within a temperature range of +25°C to +55°C. This range allows it to adapt to most indoor environments. In extreme temperatures, appropriate cooling or insulation measures are recommended to ensure normal device operation.
This temperature adaptability enables the device to operate reliably in various industrial environments. For example, it maintains good performance in high-temperature workshops or cold storage facilities.
Additionally, the device's high-performance components and compact design further enhance its reliability in complex environments.
10.What are the advantages of the 2D LiDAR technology of the TIM310-1030000?
The 2D LiDAR technology of the TIM310-1030000 offers several advantages. First, it provides high-precision object detection and distance measurement with a system error of only ±40 mm. This high-precision capability makes it excel in applications such as robotic navigation, logistics, and warehousing.
Second, the device's scanning frequency of 15 Hz allows it to quickly generate environmental maps and monitor the surroundings in real-time. This rapid scanning capability enables it to adapt to dynamically changing environments. For example, in robotic autonomous navigation, it can quickly detect obstacles and adjust paths.
Finally, the infrared photo sensor has strong resistance to ambient light, functioning normally in lighting conditions up to 80,000 lx. This design ensures the device's stability and reliability in complex environments, allowing it to operate reliably in various industrial scenarios.
