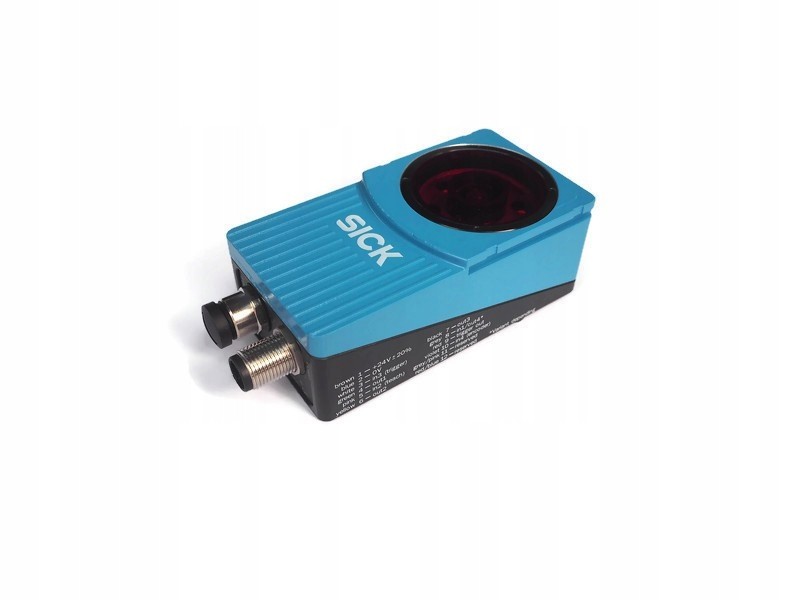

The SICK VSPI-4F2111 Vision Kamera (2D object sensor) is a high-performance SICK camera designed for industrial inspection, measurement, and positioning. Powered by flexible configuration tools, this machine vision sensor delivers 640×480px resolution, IP67 protection, and EtherNet/IP™ communication for complex automation tasks.
Product Specifications
Sensor Type: CMOS matrix sensor, grayscale.
Sensor Resolution: 640 px × 480 px.
Scan Frequency: Up to 250 fps.
Optical Parameters:
Working Distance: ≥ 50 mm.
Field of View with Integrated Lighting: 22 mm × 15 mm to 79 mm × 58 mm.
Lens: 10 mm focal length, S-Mount.
Illumination: Integrated white LED lighting, spectral range 400 nm to 750 nm.
Mechanical and Electrical Parameters:
Housing Material: Aluminum.
Protection Rating: IP67.
Dimensions: 100 mm × 53 mm × 38 mm.
Weight: 350 g.
Interfaces:
Communication Interface: EtherNet/IP™, data transfer rate 100 Mbit/s.
Digital Inputs: 4 inputs (24 V), supporting external triggering, encoder input, etc.
Digital Outputs: 3 switching outputs (24 V), maximum output current ≤ 100 mA.
Environmental Parameters:
Operating Temperature: 0°C to +45°C.
Storage Temperature -:20°C to +70°C.
Product Features
Multi-functionality: As a Vision Kamera, it supports OCR, pattern matching, and 2D positioning, ideal for precision measurement and defect detection.Integrated white LED lighting (400–750 nm) enhances its role as ahigh-precision object sensor for diverse surface types.
Flexible Configuration: Dedicated software enables offline simulation and parameter optimization, simplifying complex task setups for this camera sick device.
High Protection Rating: IP67 rating, suitable for harsh industrial environments.
Integrated Lighting: White LED lighting suitable for various surface types.
Application Scenarios
Manufacturing: For quality inspection, dimensional measurement, and positional alignment of components.
Logistics and Warehousing: The object sensor verifies item completeness via EtherNet/IP™ and triggers automated outputs.
Electronics Industry: The Vision Kamera inspects micro-component defects with 640×480 px resolution.
Food and Pharmaceuticals: Checking packaging integrity and label recognition.
Installation and Usage Instructions
Installation and Wiring:
Ensure the installation environment is dust-free, free of corrosive gases, and away from strong electromagnetic interference.
Connect the M12 connectors and Ethernet interface according to the manual, ensuring proper grounding.
Parameter Settings:
Configure communication protocols and image processing tasks via software, fully utilizing the camera sick’s 250 fps scan frequency.
Maintenance and Inspection:
Regularly check the housing for damage and clean dust from the lens and sensor.
Ensure communication interfaces and cable connections are secure.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Supply Requirements: Ensure stable supply voltage to avoid voltage fluctuations.
Safe Operation: Always disconnect power before maintenance or cleaning.
Frequently Asked Questions (FAQ)
What is the maximum scan frequency?
The maximum scan frequency is 250 fps. In practical applications, the scan frequency may vary depending on the configuration and task complexity. Adjust the scan frequency according to specific tasks to ensure optimal performance.
What is the working distance range?
The working distance is ≥ 50 mm. The effective working distance for integrated lighting is between 50 mm and 200 mm. Ensure the field of view covers the target object when selecting the working distance.
What is the protection rating of the VSPI-4F2111 housing?
The protection rating is IP67, making it suitable for harsh industrial environments such as high humidity or dusty areas. Additional protective measures are recommended in extreme conditions.
What communication protocols does the VSPI-4F2111 support?
The VSPI-4F2111 supports the EtherNet/IP™ protocol with a data transfer rate of 100 Mbit/s, ensuring reliable communication with PLCs or industrial networks.
What are the features?
The VSPI-4F2111 features integrated white LED lighting with a spectral range of 400 nm to 750 nm, suitable for various surface types. The lighting system complies with the IEC62471:2006 standard and is classified as low risk.
How are the digital inputs and outputs configured on the VSPI-4F2111?
The VSPI-4F2111 provides 4 digital inputs and 3 digital outputs. Inputs can be used for external triggering, encoder input, etc., while outputs can be configured via logical expressions to support various control signals.
How does the VSPI-4F2111 implement storage and data retrieval functions?
The VSPI-4F2111 has an internal storage capacity for 30 images. Images can be stored on a computer or server via FTP. Users can retrieve and analyze data using the Inspector Viewer software.
What is the operating temperature range?
The operating temperature range is 0°C to +45°C, while the storage temperature range is -20°C to +70°C. Appropriate cooling or insulation measures are recommended in extreme temperatures.
What functions does the configuration software for the VSPI-4F2111 offer?
The VSPI-4F2111 uses software for configuration, supporting task settings, communication configuration, and image processing tool configuration. Users can perform offline simulation and optimization.
What maintenance precautions should be taken for the VSPI-4F2111?
Regularly inspect the housing for damage and clean dust from the lens and sensor. Ensure communication interfaces and cable connections are secure. Always disconnect power before maintenance or cleaning.
