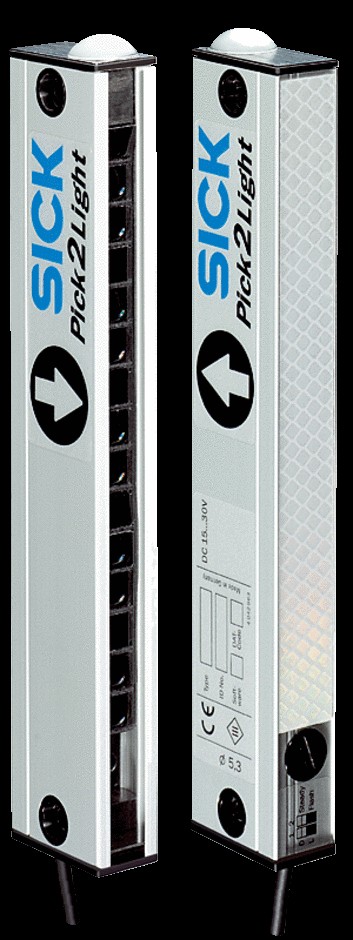

This product is a photoelectric switch sensor used in industrial automation. The photoelectric detector is designed for object detection and safety monitoring. The photoelectric beam sensor offers high-precision detection capabilities and stable performance by utilizing the principle of photoelectric reflective sensors. It is suitable for various industrial applications.
Product Specifications
Detection Principle: Photoelectric reflective sensor.
Detection Height: 360 mm.
Beam Spacing: 30 mm.
Number of Beams: 13.
Minimum Detectable Object: 35 mm.
Operating Range: 1.3 m.
Response Time: Less than 80 ms.
Supply Voltage: DC 15 V ... 30 V.
Power Consumption: Less than 45 mA.
Output Type: PNP.
Housing Protection Rating: IP54.
Operating Temperature Range: -10°C ... +55°C.
Dimensions: 19.2 mm x 429.8 mm x 36.6 mm.
Product Features
High-Precision Detection: This photoelectric switch sensor is capable of detecting objects as small as 35 mm, suitable for high-precision applications.
Fast Response: With a response time of less than 80 ms, it is ideal for dynamic detection environments.
Easy Installation: Supports multiple mounting options, such as ITEM and Bosch profiles, for quick deployment.
Reliable Performance: Features polarity protection and short-circuit protection, making it suitable for harsh industrial environments.
Indication Function: Equipped with LED indicators to display the device status in real-time.
Applications
Logistics and Warehousing: Used for goods detection and automated sorting systems to enhance logistics efficiency.
Mechanical Manufacturing: Detects object positions on automated production lines to ensure smooth production processes.
Food Processing: Checks the integrity of food packaging to ensure product quality.
Safety Monitoring: Sets up safety light curtains in industrial areas to prevent accidental entry into hazardous zones.
Usage Instructions
Installation and Configuration
Installation Location: Choose an environment free from strong light interference and corrosive gases to ensure device stability.
Connection Method: Use an M12 4-pin cable for connection, ensuring a secure connection.
Configuration Switches: Set the output mode and LED status using the configuration switches on the device.
Parameter Settings
Detection Range Adjustment: Adjust the detection range according to actual needs to ensure detection accuracy.
Output Mode: Select the output signal mode (e.g., low or high signal when beams are interrupted).
Maintenance and Inspection
Regular Cleaning: Clean the photoelectric switch sensor’s surface to remove dust and ensure detection accuracy.
Connection Check: Regularly inspect cable connections for any looseness to ensure proper device operation.
Precautions
Environmental Requirements: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Supply Stability: Ensure a stable supply voltage to prevent damage from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation and disconnect power during maintenance.
Frequently Asked Questions (FAQ)
What is the detection accuracy of the SICK PLG3-360F431?
The SICK PLG3-360F431 uses a photoelectric reflective sensor to detect objects as small as 35 mm. It is suitable for high-precision detection scenarios. The detection height is 360 mm with a beam spacing of 30 mm, ensuring dense detection to avoid any omissions.
How to adjust the detection range of the photoelectric detector?
The photoelectric beam sensor has built-in configuration switches that allow users to set the detection range and output mode. Refer to the device manual for parameter settings to ensure correct adjustments. After adjustment, perform tests to confirm that the detection range meets expectations.
What is the response time of the SICK photoelectric beam sensor?
The response time is less than 80 ms, allowing for rapid detection signal response. In dynamic detection environments, the fast response time ensures timely feedback of detection results, enhancing system efficiency.
What are the installation options for the SICK product?
The photoelectric detector supports multiple mounting options, including ITEM and Bosch profiles. Ensure the device is securely mounted during installation.
