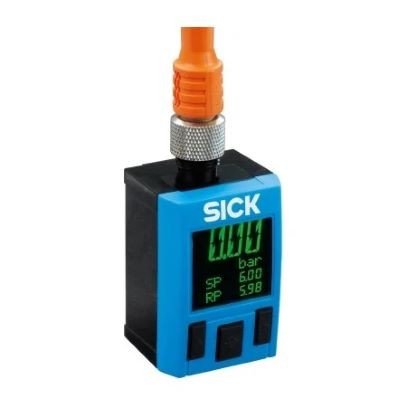

The SICK Vacuum Switch PAC50-BGC is a high-performance vacuum switch sensor designed for industrial applications. It monitors vacuum pressure levels and provides precise control, making it ideal for vacuum systems, packaging machinery, and robotic end-effectors. The PAC50-BGC features IOLink connectivity for seamless integration into modern automation systems, ensuring efficient data communication and configuration. It supports NPN PNP output, offering flexibility for various control requirements. With its robust design and high precision, the PAC50-BGC ensures reliable performance in demanding industrial environments.
Product Specifications
Measurement Range: –1 bar to +1 bar.
Overload Protection: 5 bar.
Accuracy: ≤ ±1.5% of the full scale.
Output Signals:
2 x NPN PNP output.
Sick analog sensor with optional analog output (4 mA to 20 mA or 0 V to 10 V).
IOLink interface supported.
Power Supply: 17 V DC to 30 V DC.
Enclosure Protection Rating: IP65 and IP67.
Operating Temperature Range: 0°C to +60°C.
Product Features
Large Dual-Color Display: The green/red dual-color display clearly indicates whether the pressure is within the set range, allowing for quick recognition of the switch status even from a distance.
Intuitive Operation: Equipped with three large buttons and an intuitive menu navigation system, the device is easy to operate and set up.
Flexible Installation: Supports rail mounting, wall mounting, or installation in a control panel.
High Reliability: This kind of sick safety switches rugged design and enclosure protection rating make it suitable for harsh industrial environments.
Quick Commissioning: With the IOLink interface, parameters can be quickly copied and configured, reducing downtime.
Application Scenarios
Vacuum Monitoring: Ideal for monitoring vacuum pressure in handling and robotic applications.
Leak Detection: Suitable for monitoring leaks within closed compressed air systems.
Compressed Air Monitoring: Measures pressure in compressed air systems within machines or equipment.
Maintenance Unit Pressure Measurement: Used for pressure measurement in compressed air maintenance units.
Instructions for Use
Installation
Installation Environment: Choose a well-ventilated, free dust, and non-corrosive gas environment. Avoid high temperatures, high humidity, or strong electromagnetic interference.
Installation Method: Supports rail mounting, wall mounting, or installation in a control panel. Ensure the sensor is installed vertically for proper heat dissipation.
Connections: Use an M12 circular connector for electrical connections and ensure a secure connection.
Parameter Settings
Basic Settings: Set the measurement range, output type, and switch points via the sensor panel.
Advanced Functions: Support remote parameter configuration and monitoring through the IO-Link interface.
Maintenance
Visual Inspection: Regularly check the enclosure for damage and ensure that screws are tight.
Cleaning: Periodically clean the sensor surface to ensure proper operation.
Calibration: Regularly calibrate the sensor to maintain measurement accuracy.
Precautions
Environmental Conditions: Avoid using the device in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Requirements: Ensure a stable power supply voltage to prevent damage from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation and disconnect power during maintenance.
Frequently Asked Questions and Answers
What is the measurement accuracy of the SICK PAC50-BGC?
The SICK PAC50-BGC has a measurement accuracy of ±1.5% of the full scale, meeting the stringent requirements for pressure measurement in industrial applications. This high-precision design makes it particularly suitable for applications requiring precise pressure control, such as robotic vacuum handling and compressed air system monitoring.
How can I configure the output signals of the SICK PAC50-BGC?
The SICK PAC50-BGC supports various output signal types, including PNP/NPN push-pull outputs, analog outputs (4 mA to 20 mA or 0 V to 10 V), and an optional IO-Link interface Users. can configure the output signals via the sensor panel or the IO-Link interface to ensure compatibility with the control system.
What is the enclosure protection rating of the SICK PAC50-BGC?
The SICK PAC50-BGC has an enclosure protection rating of IP65 and IP67, providing dust protection, protection against water jets, and short-term immersion, making it suitable for harsh industrial environments.
How can I configure the SICK PAC50-BGC using the IO-Link interface?
The SICK PAC50-BGC supports the IO-Link interface, allowing users to quickly set sensor parameters using the controller's configuration software. Once configured, the sensor will automatically save the settings and load them upon the next startup.
What is the measurement range of the SICK PAC50-BGC?
The SICK PAC50-BGC has a measurement range of –1 bar to +1 bar, for suitable low-pressure measurement and vacuum applications.
How can I calibrate the SICK PAC50-BGC?
To calibrate the SICK PAC50-BGC, use a standard pressure source and calibration equipment. Adjust the calibration parameters via the sensor panel or the IO-Link interface to ensure that the measured values match the standard pressure source.
What are the installation options for the SICK PAC50-BGC?
The SICK PAC50-BGC supports rail mounting, wall mounting, or installation in a control panel. Users can choose the appropriate installation method based on their needs, ensuring the sensor is installed vertically for proper heat dissipation.
What is the operating temperature range of the SICK PAC50-BGC?
The operating temperature range of the SICK PAC50-BGC is 0°C to +60°C. Users should ensure that the sensor operates within this temperature range to maintain measurement accuracy.
How can I quickly diagnose faults in the SICK PAC50-BGC?
The SICK PAC50-BGC is equipped with a diagnostic function that can quickly display fault information via the indicator lights and display on the sensor panel. Users can refer to the troubleshooting guide in the user manual based on the displayed error codes to quickly identify the issue.
What is the response time of the SICK PAC50-BGC?
The response time of the SICK PAC50-BGC can be adjusted according to user needs, with data update frequencies settable at 100 ms, 200 ms, 500 ms, or 1000 ms. This fast response capability allows it to reflect pressure changes in real-time, making it particularly suitable for applications requiring rapid feedback.
