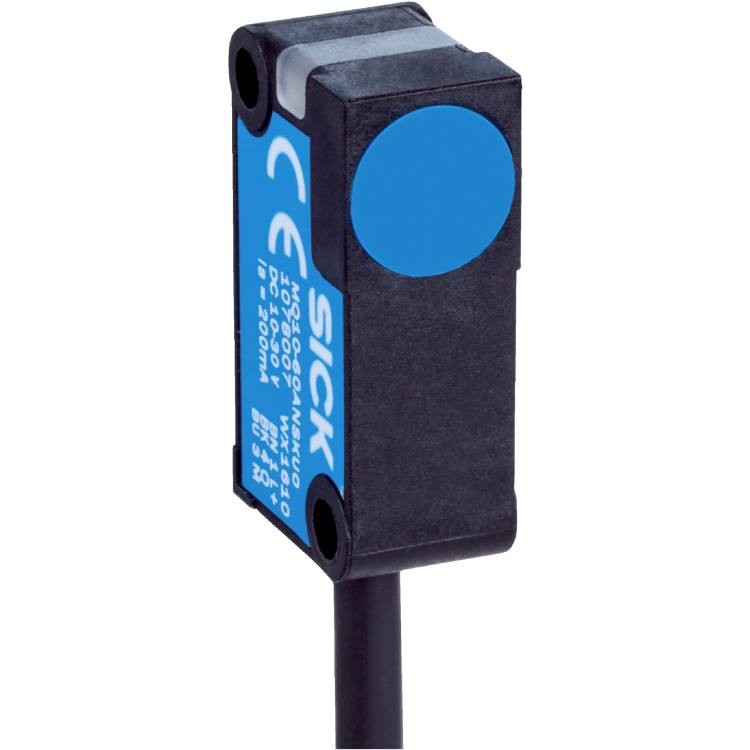

The SICK MQ10-60APSKQDS02 magnetic sensor—a Proximity Detection Sensor, PNP Sensor, and Prox Sensor from the MQB series—is engineered for high-precision detection and robust environmental adaptability in industrial automation, supporting non-contact detection for precise position control and speed monitoring in complex scenarios.
Product Specifications
Dimensions: 10 mm × 28 mm × 16 mm
Sensing Range: 0 mm to 60 mm
Safe Sensing Distance: 48.6 mm
Response Sensitivity: ≤1 mT
Switching Frequency: 1,000 Hz
Electrical Specifications:
Supply Voltage: 10 V DC to 30 V DC
Current Consumption: 5 mA
Voltage Drop: ≤1.5 V
Output Type: PNP Normally Open
This configuration is typical of a robust PNP Sensor design.
Connection: M12 male connector, 3-core, 1-meter cable
Protection Rating: IP67
Operating Temperature Range: -25°C to +75°C
Housing Material: Plastic, VISTAL®
Product Features
High-Precision Detection: Capable of precise position and speed control.
Utilizing advanced technology, this Proximity Detection Sensor delivers reliable performance in demanding industrial scenarios.
Fast Response: A switching frequency of 1,000 Hz ensures rapid response, suitable for high-speed industrial applications.
Engineered as a versatile Prox Sensor, it ensures high-speed switching and exceptional sensitivity.
Environmental Adaptability: IP67 protection rating ensures stable operation in harsh environments.
Easy Installation: Compact size and flexible connection options facilitate integration into existing systems.
Safety Features: Includes reverse polarity protection, short-circuit protection, and inrush current suppression.
Applications
Logistics and Warehousing: Detecting the position of goods on conveyor belts for automated control.
Mechanical Manufacturing: Monitoring the position and movement of mechanical components in robots and automated equipment.
Automotive Manufacturing: Used in automated assembly and inspection on production lines.
Food and Beverage Industry: Detecting object positions on packaging and production lines.
This Proximity Detection Sensor is ideal for high-speed industrial automation.
Its compact design as a reliable Prox Sensor makes it adaptable to various industrial setups.
industrial scenarios.
Installation and Wiring Instructions
Installation Location: Choose a dust-free environment with low electromagnetic interference to ensure unobstructed sensing.
Wiring Requirements: Follow the product manual for correct connections of power and signal lines.
Grounding Protection: Ensure proper grounding to avoid electromagnetic interference.
When installing this Prox Sensor, ensure that all wiring connections follow the manual for optimal performance.
Parameter Settings
Sensing Distance Adjustment: Optimize the sensing distance by selecting appropriate magnets (e.g., MAG-3010-B) and adjusting the installation position.
Sensitivity Adjustment: Calibrate the sensor's response sensitivity based on the magnetic properties of the target object.
Maintenance and Inspection
Regular Cleaning: Periodically remove dust and debris from the sensor surface to ensure clear sensing.
Electrical Checks: Verify the connections of power and signal lines for secure contact.
Troubleshooting: Quickly identify and resolve issues using the sensor's fault indicator or alarm codes.
Regular checks should verify that the PNP Sensor output remains consistent for reliable operation.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Supply Requirements: Ensure stable voltage to prevent damage to the sensor.
Safety Operations: Avoid contact with live parts during operation to ensure personnel safety.
FAQs and Answers
How to Adjust the Sensing Distance of MQ10-60APSKQDS02?
Adjust the sensing distance by selecting the appropriate magnet type and optimizing the installation position. Ensure the distance between the magnet and the sensor's sensing face meets the design requirements for optimal detection.
What is the Protection Rating of the Sensor?
The MQ10-60APSKQDS02 has an IP67 protection rating, meaning it effectively prevents dust ingress and can withstand short-term immersion in water. This rating makes it highly suitable for harsh industrial environments.
What is the Switching Frequency of the Sensor?
The sensor has a switching frequency of 1,000 Hz, allowing it to perform 1,000 switch operations per second. This makes it ideal for applications requiring rapid response.
This Proximity Detection Sensor is designed to operate efficiently even in high-speed industrial environments.
How to Ensure Installation Accuracy?
Ensure the distance and angle between the sensing face and the target object meet the design requirements. Calibration tools or auxiliary devices can help improve installation accuracy.
What is the Supply Voltage Range?
The sensor operates within a supply voltage range of 10 V DC to 30 V DC. Ensure stable voltage within this range during installation.
What is the Output Type of the Sensor?
The sensor features a PNP Normally Open output, meaning it outputs a high signal when detecting the target object.
The sensor features a PNP Sensor configuration with a normally open output, ensuring reliable signal transmission.
What is the Operating Temperature Range?
The sensor operates within a temperature range of -25°C to +75°C, ensuring stable performance across a wide temperature spectrum.
What is the Housing Material?
The sensor's housing is made of plastic, specifically VISTAL®, which offers excellent corrosion resistance and mechanical strength. This material is lightweight and durable against chemical exposure in industrial environments.
How Does the Short-Circuit Protection Work?
The MQ10-60APSKQDS02 features built-in short-circuit protection. When a short circuit occurs at the output, the sensor automatically cuts off the output to protect its internal circuits.
What Installation Options Are Available?
The sensor supports various installation methods, including direct mounting on metal or non-metal surfaces. Choose the appropriate installation method based on the specific application requirements.
