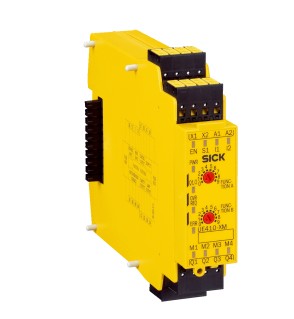

The UE410-XM3 is a safety controller introduced by SICK as part of the Flexi Classic series. This controller, along with SICK ultrasonic level sensors and ultrasonic level sensor and transmitter systems, ensures reliable and safe operation in complex industrial environments. The UE410-XM3, combined with advanced contrinex proximity sensor technology, offers exceptional safety and performance. It is widely used in various industries, including mechanical manufacturing, logistics automation, and the automotive industry.
Product Specifications
Electrical Parameters:
Supply Voltage: 24V DC (operating range: 19.2V DC to 30V DC).
Power Consumption: ≤3W (DC).
Voltage Supply Type: PELV (Protected Extra-Low Voltage) or SELV (Safety Extra-Low Voltage).
Mechanical Parameters:
Dimensions: 22.5 mm x 96.5 mm x 120.8 mm.
Weight: 180g.
Environmental Parameters:
Operating Temperature: -25°C to +55°C.
Storage Temperature: -25°C to +70°C.
Humidity: ≤95%, non-condensing.
Connections and Display:
Connection Type: Plug-in screw terminal.
Display Elements: LEDs.
Product Features
High Safety Performance:
Achieves SIL 3 (IEC 61508) and PL e (EN ISO 13849), ensuring reliable operation in high-risk environments. The UE410-XM3, like the SICK ultrasonic level sensor, is designed to meet the highest safety standards.
Offers External Device Monitoring (EDM), personnel and material differentiation (masking function), and simultaneous monitoring capabilities. These features are essential for integrating with other safety devices such as ultrasonic level sensor and transmitter systems.
Flexible Configuration:
Configuration is completed via a rotary switch, making it easy to use. This flexibility allows it to work seamlessly with contrinex proximity sensor technology and other safety devices.
Features 2 safety inputs, 2 control inputs, and 4 masking inputs, suitable for a variety of complex safety application scenarios. These inputs can be connected to SICK ultrasonic level sensors to enhance safety monitoring.
Reliable and Durable:
The enclosure has an IP40 protection rating, and the terminal blocks have an IP20 rating, making it suitable for harsh industrial environments. This durability is similar to the robustness of ultrasonic level sensor and transmitter systems.
Designed for a service life of up to 20 years (EN ISO 13849), ensuring long-term stable operation. This longevity is comparable to the reliability of contrinex proximity sensor technology.
Applications
Mechanical Manufacturing:
Used for safety monitoring of machine tools, robots, and other equipment to ensure operator safety. It can be integrated with SICK ultrasonic level sensors to enhance safety in these environments.
Logistics Automation:
Monitors safety doors, light curtains, and other devices in automated warehouses and conveying systems. The UE410-XM3 can work in tandem with ultrasonic level sensor and transmitter systems to optimize safety and efficiency.
Automotive Industry:
Used for safety control on production lines, such as welding robots and stamping machines. The integration of contrinex proximity sensor technology further enhances safety in these applications.
Instructions for Use
Installation and Wiring:
The installation environment should avoid high temperatures, high humidity, and strong electromagnetic interference. Ensure that the contrinex proximity sensor and other connected devices are also installed in suitable conditions.
Follow the manual for wiring and ensure proper grounding. This is crucial for the safe operation of the UE410-XM3 and any connected SICK ultrasonic level sensors.
Parameter Settings:
Configure safety functions such as restart interlock and masking time monitoring using the rotary switch. These settings can be tailored to work with ultrasonic level sensor and transmitter systems for enhanced safety.
Maintenance and Inspection:
Regularly check the wiring for firmness and clean the device surface of dust. This maintenance practice also applies to contrinex proximity sensor devices and SICK ultrasonic level sensors.
Inspect the LED indicator lights to ensure the device is operating normally. This is essential for both the UE410-XM3 and any connected ultrasonic level sensor and transmitter systems.
Precautions
Environmental Conditions:
Avoid using the device outside its operating temperature range. This precaution also applies to contrinex proximity sensor devices and SICK ultrasonic level sensors.
Power Requirements:
Ensure stable supply voltage to prevent damage from voltage fluctuations. This is especially important for devices like ultrasonic level sensor and transmitter systems.
Safety Operations:
Avoid contact with live parts during operation, and disconnect power before maintenance. This safety practice is also applicable when working with contrinex proximity sensor devices and SICK ultrasonic level sensors.
Frequently Asked Questions (FAQ)
What is the Safety Integrity Level?
The UE410-XM3 has a Safety Integrity Level of SIL 3 (IEC 61508), meaning it meets the highest safety requirements. This level of safety is comparable to the reliability of SICK ultrasonic level sensors.
Its Performance Level is PL e (EN ISO 13849), ensuring reliability in high-risk applications. The device's Probability of Dangerous Failure per Hour (PFHD) is 2.5 x 10^-9, in compliance with international safety standards, similar to the standards upheld by contrinex proximity sensor technology.
How to Configure the Restart Interlock Function?
The restart interlock function can be manually or automatically configured using the rotary switch. This feature can be integrated with ultrasonic level sensor and transmitter systems to enhance safety.
In manual mode, device restart requires human intervention to ensure operational safety. In automatic mode, the device can restart automatically once conditions are met, improving production efficiency. This flexibility is similar to the adaptability of contrinex proximity sensor devices.
How is the Masking Function of UE410-XM3 Implemented?
The masking function allows the device to ignore safety sensor signals under specific conditions, such as when materials pass through. This feature can be particularly useful when integrated with SICK ultrasonic level sensors.
This function is implemented by configuring masking inputs and sensor gap monitoring, ensuring it is only activated in safe conditions. The total masking time can be monitored to prevent accidental masking, similar to the monitoring capabilities of ultrasonic level sensor and transmitter systems.
What is the Electromagnetic Compatibility?
The UE410-XM3 has an Electromagnetic Compatibility (EMC) rating of A (EN 61000-6-2, EN 55011), ensuring stable operation in complex electromagnetic environments. This level of compatibility is comparable to the robustness of contrinex proximity sensor devices.
The device is designed to comply with international EMC standards, ensuring it does not interfere with other equipment. During installation, it is recommended to use shielded cables and ensure proper grounding to further enhance interference resistance, similar to the installation requirements for SICK ultrasonic level sensors.
How to Choose the Power Supply?
The UE410-XM3 operates within a supply voltage range of 19.2V DC to 30V DC, and a stable 24V DC power supply is recommended. This power supply recommendation is also applicable to ultrasonic level sensor and transmitter systems.
The external current of the power supply must be limited to a maximum of 4A, which can be achieved through the power supply itself or a fuse. Ensure the power supply ripple does not exceed 10% to guarantee normal device operation, similar to the requirements for contrinex proximity sensor devices.
What Are the Installation Environment Requirements?
The installation environment should avoid high temperatures, high humidity, and strong electromagnetic interference. These conditions are also important for the proper installation of SICK ultrasonic level sensors and ultrasonic level sensor and transmitter systems.
The operating temperature range is -25°C to +55°C, and the storage temperature range is -25°C to +70°C. Humidity should not exceed 95%, and it should be non-condensing. These parameters are also relevant for the installation of contrinex proximity sensor devices.
What Maintenance Precautions Should Be Taken for UE410-XM3?
Regularly check the device's wiring for firmness and clean the surface of dust. This maintenance practice also applies to SICK ultrasonic level sensors and ultrasonic level sensor and transmitter systems.
Inspect the LED indicator lights to ensure the device is operating normally. Disconnect power and wait for capacitor discharge to complete before maintenance. These precautions are also essential for maintaining contrinex proximity sensor devices.
What is the Enclosure Protection Rating of UE410-XM3?
The UE410-XM3 has an enclosure protection rating of IP40, and the terminal blocks have an IP20 rating. This protection rating effectively prevents dust and small particles from entering, making it suitable for harsh industrial environments, similar to the durability of contrinex proximity sensor devices.
What is the Service Life?
The UE410-XM3 is designed for a service life of up to 20 years (EN ISO 13849), ensuring long-term stable operation under normal use and maintenance conditions. This longevity is comparable to the reliability of SICK ultrasonic level sensors and ultrasonic level sensor and transmitter systems.
Regular maintenance and inspection can further extend the device's service life. This practice is also crucial for maintaining the longevity of contrinex proximity sensor devices.
How to Configure the External Device Monitoring Function?
The External Device Monitoring (EDM) function can be configured using the rotary switch. This function is essential for integrating with other safety devices such as SICK ultrasonic level sensors.
Once configured, the device automatically detects signals from external devices and issues an alarm if abnormalities are detected. This feature enhances the overall safety and reliability of the system, similar to the monitoring capabilities of ultrasonic level sensor and transmitter systems.
