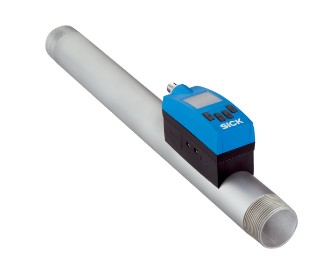

The SICK FTMG-ESR40SXX is a high-performance pneumatic level sensor that utilizes both calorimetric and piezoresistive measurement principles. It can simultaneously measure gas flow, temperature, and pressure .This metal sensor can use the safety switch to control the gas flow .This sensor is suitable for a variety of industrial applications, including flow monitoring of compressed air, argon, nitrogen, and carbon dioxide.
Product Specifications
Measurement Principle: Calorimetric (flow and temperature), Piezoresistive (pressure).
Applicable Media: Compressed air (meeting ISO 8573-1:2010 [3:4:4] standard), argon, nitrogen, carbon dioxide.
Flow Range: 37.7 L/min to 7539.8 L/min.
Temperature Measurement Accuracy: ±2°C, with a repeatability of ±0.5°C.
Pressure Measurement Accuracy: ±1.5%.
Response Time: Less than 0.3 seconds.
Operating Environment: Pollution degree 3 (compliant with UL61010-1:2012-05), humidity up to 80% (at a maximum of 31°C), installation altitude not exceeding 3000 meters.
Protection Rating: IP67.
Power Requirements: 17-30V DC.
Connection Type: Circular connector.
Product Features
High Measurement Dynamic Range: Achieves high-precision flow measurement while maintaining low pressure loss.
Fast Response: Equipped with a response time of less than 0.3 seconds, making it suitable for real-time monitoring.
Multi-function Integration: Simultaneously measures flow, temperature, and pressure, saving costs.
High Protection Rating: IP67 protection rating, suitable for harsh industrial environments.
Energy-saving Design: High energy efficiency reduces energy consumption.
Applications
The FTMG-ESR40SXX is suitable for the following fields:
Industrial Automation: Monitoring the flow of compressed air and other gases to optimize energy management.
HVAC: Monitoring air flow to ensure system efficiency. The flow of gas can be controlled by means of a safety switch if necessary.
Mechanical Manufacturing: Flow monitoring for pneumatic equipment.
Energy Management: Real-time monitoring of gas flow to optimize energy consumption.
Instructions for Use
Installation
Installation Location: The pneumatic level sensor should be installed in an environment free from strong electromagnetic interference and with moderate humidity.
Connection Method: Electrical connection is made using a circular connector.
Protection Measures: Ensure the pneumatic level sensor housing meets the IP67 protection rating to prevent water ingress.
Maintenance
Cleaning: Regularly clean the metal sensor surface to avoid measurement inaccuracies caused by dust and dirt.
Calibration: Periodic calibration is recommended to ensure measurement accuracy.
Inspection: Regularly check connectors and cables to ensure secure connections. If the gas flow is found abnormal, it can be controlled by the safety switch.
Precautions
Media Compatibility: Suitable for non-corrosive gases only.
Ambient Temperature: Ensure the metal sensor operates within an ambient temperature range of -40°C to +70°C.
Altitude Limitation: Installation altitude should not exceed 3000 meters.
Frequently Asked Questions and Answers
What is the flow measurement range of the sensor?
The flow measurement range is from 37.7 L/min to 7539.8 L/min. This range is suitable for various industrial gases, including compressed air, nitrogen, and carbon dioxide.
What is the response time of the FTMG-ESR40SXX?
The response time is less than 0.3 seconds, making it suitable for real-time monitoring.
Does the sensor support temperature and pressure measurement?
Yes, the FTMG-ESR40SXX supports temperature and pressure measurement, with a temperature accuracy of ±2°C and a pressure accuracy of ±1.5%.
What is the protection rating of the FTMG-ESR40SXX?
The sensor has an IP67 protection rating, making it suitable for harsh industrial environments.
What are the operating environment requirements for the sensor?
The operating environment temperature range is -40°C to +70°C, with humidity not exceeding 80% (up to 31°C), and installation altitude not exceeding 3000 meters.
Does the FTMG-ESR40SXX support measurement of multiple gases?
Yes, the sensor is suitable for compressed air, argon, nitrogen, and carbon dioxide.
What should be noted during the installation of the sensor?
Avoid installing in environments with strong electromagnetic interference. Ensure secure connections and that the protection rating meets IP67.
What is the maintenance cycle for the FTMG-ESR40SXX?
It is recommended to regularly clean the sensor surface and perform calibration every 6-12 months.
What are the power requirements for the sensor?
The sensor requires a 17-30V DC power supply.
What is the connection type for the FTMG-ESR40SXX?
Electrical connection is made using a circular connector.
Through this detailed introduction and answers to frequently asked questions, users can better understand and utilize the SICK FTMG-ESR40SXX flow sensor, fully leveraging its performance advantages to meet the gas flow monitoring needs in industrial applications.
