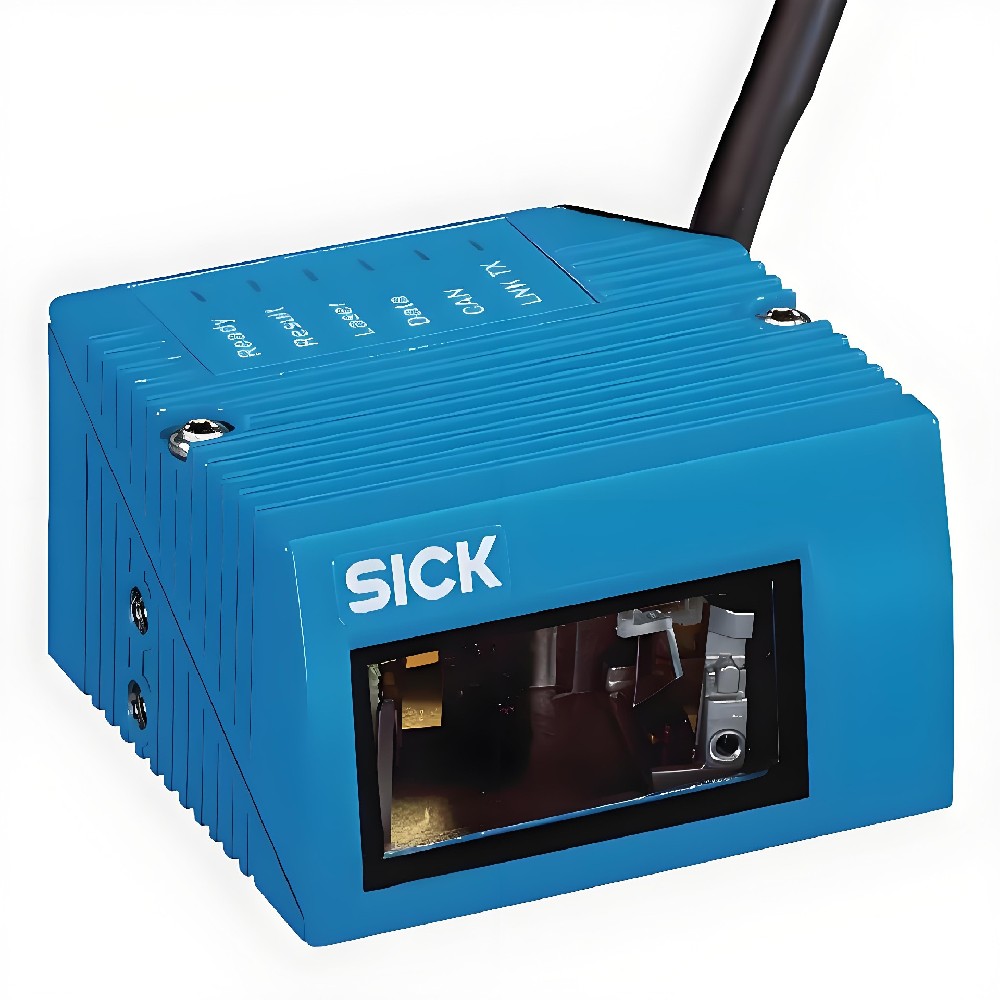

The SICK CLV621-0000 Laser Barcode Scanner is a high-performance fixed SICK laser scanner from the CLV62x series, designed for long-range 1D code reading. This industrial-grade SICK barcode scanner excels in logistics, manufacturing, and warehousing applications requiring reliable automated data capture.
Product Overview
The CLV621-0000 is a cutting-edge sick laser scanner specifically designed for long-range barcode reading, offering robust performance and flexible installation options. As a high-end barcode scanner laser, it supports multiple interfaces and can significantly enhance data acquisition efficiency in various industrial applications.
Product Specifications
Scanning Range: 60 mm to 730 mm.
Scanning Frequency: 400 Hz to 1,200 Hz.
Barcode Resolution: 0.35 mm to 1 mm.
Connection Type: 1 x 15-pin D-Sub-HD plug (0.9 m cable).
Supply Voltage: 10 V DC to 30 V DC.
Power Consumption: 4.5 W.
Housing Protection Rating: IP65.
Operating Temperature: 0°C to +40°C.
Storage Temperature: -20°C to +70°C.
Relative Humidity: Up to 90% non-condensing.
Product Features
Long-Range Scanning: Suitable for applications requiring barcode reading at a distance.
Support for Multiple Barcode Types: Compatible with common 1D barcodes such as Code 39, Code 128, GS1-128, etc. As a versatile sick barcode scanner, it natively supports common 1D barcodes such as Code 39, Code 128, and GS1-128 through advanced laser decoding technology.
High Ambient Light Resistance: Thanks to its state-of-the-art sick laser scanner technology, the device functions normally at light intensities up to 2,000 lx - far exceeding standard barcode scanner specifications.
Robust Construction: Die-cast aluminum housing with an IP65 protection rating, making it suitable for industrial environments.
Applications
Logistics and Warehousing: Distributors increasingly adopt sick barcode scanners for package sorting systems that require both speed and precision. Our laser-based solution significantly reduces picking errors in warehouse operations.
Manufacturing: Reads barcodes on raw materials or finished products on production lines, enabling automated data collection.
Retail: Used in warehouse management or self-checkout systems to improve data processing speed.
Installation and Connection
Installation: Ensure the scanner is installed in a dust-free, vibration-free environment, avoiding direct sunlight.
Connection: Use the 15-pin D-Sub-HD plug to connect power and data lines, ensuring secure connections.
Parameter Settings: Configure parameters using SICK's software or external modules (e.g., CMC600-101).
Precautions and Maintenance
Environmental Requirements: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.
Cleaning and Maintenance: Regularly clean the scanning window to remove dust or dirt that may affect performance.
Safety Operations: Ensure the device is powered off during installation or maintenance.
FAQs
How to Set the Scanning Frequency of CLV621-0000?
Purpose: Scanning frequency determines the number of scans per second, affecting read speed and power consumption.
Method: Adjust the scanning frequency parameter using SICK's configuration software or external modules.
Note: Lower frequencies can save energy in low-speed applications.
How to Choose the Installation Location for CLV621-0000?
Importance: Proper installation ensures effective barcode reading and minimizes environmental interference.
Environmental Requirements: Choose a dust-free, vibration-free, and non-direct sunlight environment.
Installation Angle: Adjust the scanner's angle to cover the barcode within its scanning range.
What is the Ambient Light Resistance of CLV621-0000?
Capability: Functions normally at light intensities up to 2,000 lx.
Application Advantage: Maintains stable performance even in strong light or reflective environments.
Note: Extreme lighting conditions may require additional shading to ensure optimal performance.
What Interfaces Does CLV621-0000 Support?
Interface Types: Supports RS-232, RS-422, RS-485, CAN, CANopen, PROFIBUS DP, EtherCAT, and PROFINET.
Selection: Choose the appropriate interface based on application needs, with PROFINET or EtherCAT being more common in industrial automation.
Configuration: Use external modules or software for interface setup.
How to Maintain CLV621-0000?
Visual Inspection: Regularly check for housing damage or loose screws.
Cleaning: Clean the scanning window and housing to ensure optimal performance.
Electrical Connections: Verify that power and data cables are securely connected.
How to Adjust the Reading Distance?
Purpose: Adjusting the reading distance ensures the scanner can effectively read barcodes at the desired range.
Method: Modify optical parameters using software or external modules.
Note: Ensure the scanning range covers the target barcode.
What is the Power Consumption?
Power Information: The scanner consumes 4.5 W.
Energy-Saving Advantage: Low power design makes it suitable for long-term operation.
Note: Reducing scanning frequency can further decrease power consumption in low-speed applications.
How to Choose the Scanning Frequency for CLV621-0000?
Selection Basis: Choose the scanning frequency based on application needs, with higher frequencies suitable for high-speed reading.
Method: Adjust the scanning frequency using configuration software or external modules.
Note: Higher frequencies increase power consumption, so balance performance and energy efficiency.
What is the Protection Rating?
Protection Rating Information: The scanner has an IP65 protection rating.
Advantage: Effectively protects against dust and water jets, making it suitable for industrial environments.
Note: Avoid prolonged submersion in water.
How to Adjust the Installation Angle?
Purpose: Adjusting the installation angle optimizes the scanning range to ensure effective barcode reading.
Method: Use mounting brackets or adapter plates to adjust the angle.
Note: Ensure the scanning range covers the target barcode.
