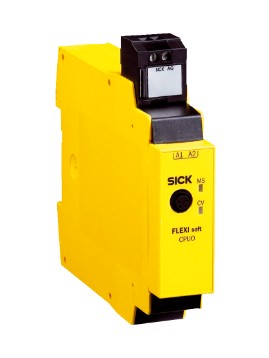

The SICK FX3-CPU000000 is a high-performance safety controller from the Flexi Soft series. It also a sick safety sensor which can use the switch safety to maintain the working safety. This controller also have a interlock switches to maintain the safety. It is a programmable device designed to meet the safety requirements of industrial automation and supports modular expansion for flexible adaptation to various application scenarios.
Product Features
Processor: Equipped with a dual-core ARM Cortex-A9 CPU and an FPGA, it supports complex logic processing.
Configuration Method: Configured using the Flexi Soft Designer software, with support for system plugin expansion.
Safety Level: Complies with SIL 3 (IEC 61508), SILCL 3 (EN 62061), Category 4 (EN ISO 13849), and Performance Level PL e.
Interfaces: Features an RS-232 (M8, 4-pin) configuration and diagnostic interface.
Modular Design: Supports system plugin expansion, which must be purchased separately.
Technical Specifications
Electrical Parameters:
Supply Voltage: 24 V DC (16.8 V DC ... 30 V DC).
Internal Power Consumption: ≤ 2.5 W.
Overvoltage Category: II (EN 61131-2).
Mechanical Parameters:
Dimensions: 22.5 mm x 96.5 mm x 120.6 mm.
Weight: 111 g (± 5%).
Environmental Parameters:
Enclosure Protection Rating: IP20.
Operating Temperature: -25°C to +55°C.
Storage Temperature: -25°C to +70°C.
Humidity: ≤ 95% (non-condensing).
Application Scenarios
The FX3-CPU000000 is widely used in industrial automation applications requiring high safety levels, such as robot control, logistics automation, and mechanical safety monitoring. It is also suitable for:
Automation Control: Integrated into production lines and machines to monitor and control operations, enhancing efficiency and product quality. This sick safety sensor can use the switch safety which can improve the safety and control the working more exactly.
Safety Control: Emergency stop control, two-hand control, and safety networking for remote monitoring and diagnostics. This sick safety sensor have a interlock switches to maintain the worker safety.
Other Applications: Environmental monitoring and energy management. The interlock switches of the controller can use the switch safety to maintain the safety .
Usage and Maintenance
Installation: Ensure the device is installed in an environment free from strong electromagnetic interference to maintain performance.
Maintenance: Regularly inspect wiring and the enclosure to ensure secure connections and prevent safety issues.
Precautions
System Plugins: The main module requires separate purchase of system plugins to achieve full functionality.
Power Limitation: The external current for the main module's power supply must be limited to a maximum of 4 A.
Common Questions and Answers
What is the safety level of the controller?
It complies with SIL 3 (IEC 61508), SILCL 3 (EN 62061), and Category 4 (EN ISO 13849) safety levels.
Does the FX3-CPU000000 support modular expansion?
Yes, it supports expansion through system plugins.
What is the operating temperature range of the controller?
The operating temperature range is -25°C to +55°C.
What is the power consumption of the FX3-CPU000000?
The internal power consumption is ≤ 2.5 W.
What is the enclosure protection rating of the controller?
The enclosure protection rating is IP20.
Does the FX3-CPU000000 support remote configuration?
Yes, remote configuration is possible via the RS-232 interface and Flexi Soft Designer software.
What are the dimensions of the controller?
The dimensions are 22.5 mm x 96.5 mm x 120.6 mm.
Does the FX3-CPU000000 support diagnostic functions?
Yes, the device supports quick debugging and troubleshooting via the diagnostic interface.
What is the power-up delay time of the controller?
The power-up delay time is ≤ 18 seconds.
What is the storage temperature range of the FX3-CPU000000?
The storage temperature range is -25°C to +70°C.
