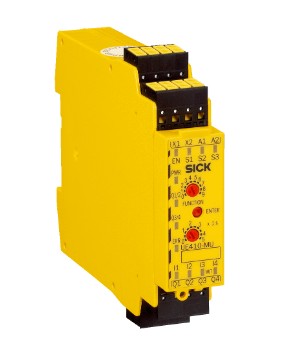

The SICK UE410-MU3T5 is a highly efficient and easy-to-operate safety controller, belonging to the Flexi Classic series. It also a safety proximity sensor for various industries . It is designed for safety logic applications ranging from simple to moderately complex and is widely used in industries such as electronics, robotics, packaging, logistics, and automotive. This safety proximity sensor with a safety interlock switch which can utility the safety lidar to control the working safety.
Product Specifications
Safety Integrity Level:
SIL3 (IEC 61508)
SILCL3 (EN 62061)
Category 4 (EN ISO 13849)
Performance Level PL e (EN ISO 13849)
PFHD (Probable Failure per Hour): 2.5 x 10^-9 (EN ISO 13849)
TM (Operating Time): 20 years (EN ISO 13849)
Functions:
Manual/Automatic restart safety interlock switch
External Device Monitoring (EDM)
UND and ODER connections
Bypass functionality
Personnel and material differentiation (muting function)
Interfaces:
4 safety inputs
4 control inputs
4 safety outputs
2 test outputs
Delay time (outputs Q3/Q4): 0 s to 5 s
Electrical Parameters:
Supply voltage: 24 V DC (19.2 V DC ... 30 V DC)
Residual ripple: ≤ 10%
Power consumption: ≤ 3 W (DC)
Power-up delay: ≤ 60 s
Mechanical Parameters:
Dimensions: 22.5 mm x 96.5 mm x 120.8 mm
Weight: 180 g
Environmental Parameters:
Enclosure protection rating: IP40
Terminal protection rating: IP20
Operating temperature range: -25°C to +55°C
Storage temperature range: -25°C to +70°C
Humidity: 15% to 95% (non-condensing)
Functional Features
Modular Design: Supports expansion to avoid excess inputs and outputs, reducing hardware requirements.
Easy Configuration: Logic configuration can be easily achieved using a rotary switch and the Flexi Classic configuration program.
Diagnostics: Comprehensive system diagnostics to prevent unexpected downtime.
Compact Design: Significantly reduces the width of control cabinets.
Compatibility: Supports Flexi Loop cascading, simplifying wiring.
Application Scenarios
The UE410-MU3T5 is widely used in the following fields:
Electronics Manufacturing: For safety monitoring of equipment.
Robotics: Ensuring safety in robotic operation areas.
Packaging Industry: Monitoring the safety of packaging production lines. The worker can utility the safety lidar to control the working safety.
Logistics and Warehousing: Safety control for automated equipment. This controller with safety interlock switch which can utility the safety lidar to control the working safety.
Usage and Maintenance
Installation: Ensure the device is installed in an environment free from strong electromagnetic interference to maintain performance.
Maintenance: Regularly inspect wiring and the enclosure to ensure secure connections and prevent safety issues.
Precautions
Environmental Requirements: Avoid using in high humidity or extreme temperatures to ensure stability and safety.
Wiring: Use appropriate shielded cables to ensure stable signal transmission.
Common Questions and Answers
What is the safety level of the controller?
The device complies with SIL3 (IEC 61508) and Category 4 (EN ISO 13849) safety levels.
What is the delay time range of the UE410-MU3T5?
The delay time for outputs Q3/Q4 is 0 s to 5 s.
Does the controller support expansion?
Yes, it supports modular expansion to add inputs and outputs as needed.
What is the operating temperature range of the UE410-MU3T5?
The operating temperature range is -25°C to +55°C.
What is the enclosure protection rating of the controller?
The enclosure protection rating is IP40, and the terminal protection rating is IP20.
How to configure the UE410-MU3T5?
Configuration can be easily done using a rotary switch and the Flexi Classic configuration program.
Does the controller support remote monitoring?
The device supports comprehensive system diagnostics, enabling remote monitoring.
What is the power consumption of the UE410-MU3T5?
The maximum power consumption is 3 W (DC).
What are the dimensions of the UE410-MU3T5?
The dimensions are 22.5 mm x 96.5 mm x 120.8 mm.
Does the controller support Flexi Loop?
Yes, it supports Flexi Loop cascading.
