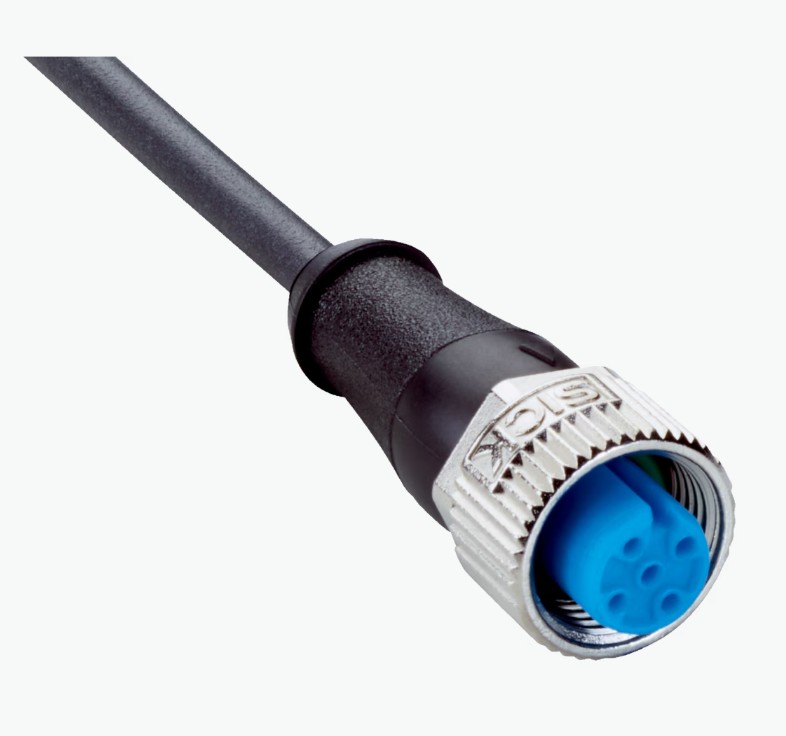

The YF2A14-500UB3XLEAX is a high-performance proximity sensor cable connector designed by SICK, a leading name in industrial automation. This proximity cable is specifically engineered for demanding applications, such as robotic arms and conveyor systems, where flexibility and durability are crucial. Equipped with a reliable cable SICK connector, it ensures stable connections and outstanding performance in harsh industrial environments. Whether it’s for dynamic robotic applications or sensor connections in oil and lubricant areas, this proximity cable stands out for its robustness and versatility.
Product Specifications
Connection Method:
A End: Plug, M12, 4-pin, straight, A-coded cable SICK connector. This cable SICK connector is designed for easy installation and secure connections.
B End: Bare wire termination, allowing for flexible integration into various systems.
Cable Specifications:
Length: 50 meters, providing ample reach for complex industrial setups.
Wire Diameter: 4.5 mm, ensuring mechanical strength.
Cross-sectional Area: 0.34 mm², optimized for efficient electrical performance.
Jacket Material: Halogen-free PUR, which gives the proximity cable excellent oil and chemical resistance.
Electrical Parameters:
Rated Voltage: 300V AC, suitable for a wide range of industrial applications.
Test Voltage: 2500V AC, ensuring the proximity cable's reliability under high-voltage conditions.
Current Capacity: ≤4A, making it ideal for applications requiring precise control.
Mechanical Properties:
Acceleration: ≤10 m/s², allowing the proximity cable to handle high-acceleration movements.
Torsional Stress: 180° per meter, with 2,000,000 torsional cycles, making it extremely durable.
Cycles per Minute: 35, ensuring the proximity cable can withstand frequent motion.
Environmental Adaptability:
Operating Temperature: -25°C to +80°C, ensuring the proximity cable performs reliably in extreme conditions.
Enclosure Protection: IP65/IP66K/IP67, providing robust protection against dust, water, and other environmental factors.
Product Features
High Flexibility: The halogen-free PUR jacket of the proximity cable offers excellent flexibility and durability.
Durability: With up to 2,000,000 torsional cycles, the proximity cable is built to last in high-frequency motion scenarios.
Safety: Certified by CE and UL, the cable SICK connector and proximity cable ensure safe operation in complex industrial environments.
Application Scenarios
Robotics: Ideal for connecting sensors and actuators in robotic arms, where the proximity cable can handle high acceleration and frequent movement.
Conveyor Belt Systems: Used in logistics and manufacturing to connect sensors and actuators, ensuring stable operation.
Oil/Lubricant Areas: The proximity cable's oil and chemical resistance make it suitable for demanding industrial environments.
Installation and Maintenance Instructions
Installation and Wiring:
Ensure the A end with the cable SICK connector is correctly connected to the sensor or actuator device.
Avoid placing the proximity cable near high-voltage power lines to minimize electromagnetic interference.
Maintenance and Inspection:
Regularly inspect the proximity cable for wear or damage, especially the jacket and connectors.
Clean the proximity cable surface of dust and oil to ensure proper heat dissipation.
Precautions:
Avoid using the proximity cable in environments exceeding the rated temperature and voltage.
Ensure the equipment is powered off during installation and maintenance to avoid electrical hazards.
Frequently Asked Questions and Answers
How is the oil resistance of the YF2A14-500UB3XLEAX proximity cable?
Oil Resistance: The proximity cable features a halogen-free PUR jacket with excellent oil and chemical resistance.
Application: This makes it ideal for industrial environments, such as sensor connections in robotic arms or conveyor belt systems.
Maintenance Tip: Despite its oil resistance, regularly cleaning the proximity cable surface can extend its lifespan.
How to ensure the connection stability?
Connection Stability: Ensure a secure connection for both A and B ends. The A end is an M12 straight plug with a cable SICK connector that must be tightened with a nut.
Wiring Tips: Avoid placing the proximity cable near high-voltage power lines to reduce electromagnetic interference.
Regular Inspection: Check for any loosening or damage to the connectors and replace damaged components promptly.
What is the lifespan?
Lifespan: The proximity cable supports up to 2,000,000 torsional cycles, making it suitable for high-frequency motion scenarios.
Factors Affecting Lifespan: Lifespan is influenced by environmental temperature, mechanical stress, and maintenance practices.
Maintenance Tips: Regularly clean the proximity cable surface of dust and oil to extend its lifespan.
What are the installation environment requirements for the YF2A14-500UB3XLEAX proximity cable?
Environmental Requirements: The proximity cable should be installed in a dust-free environment free of corrosive gases.
Temperature Range: The operating temperature is -25°C to +80°C.
Protection Rating: The proximity cable has an IP65/IP66K/IP67 protection rating, making it suitable for various industrial environments.
What are the electrical characteristics?
Electrical Parameters: Rated voltage of 300V AC, test voltage of 2500V AC, and current capacity of ≤4A.
Insulation Performance: Insulation resistance of 100MΩ, with overvoltage category III, ensuring electrical safety.
Application Tips: When selecting a proximity cable, choose the appropriate voltage and current specifications based on your application needs.
How to choose the length?
Length Selection: Choose the proximity cable length based on your application. This model is available in a 50-meter length.
Application Needs: In robotics or conveyor belt systems, a longer proximity cable provides greater movement range.
Precautions: Avoid using excessively long proximity cables to prevent signal attenuation or mechanical interference.
What is the maintenance cycle for the YF2A14-500UB3XLEAX proximity cable?
Maintenance Cycle: It is recommended to perform a visual inspection and cleaning of the proximity cable quarterly.
Inspection Content: Check for wear on the jacket, loosening of connectors, and ensure the proximity cable's bending radius meets requirements.
Maintenance Tips: Regularly clean the proximity cable surface of dust and oil to ensure proper heat dissipation.
How is the interference resistance?
Interference Resistance: The proximity cable has an unshielded design, but the jacket material provides some interference resistance.
Wiring Tips: When wiring, avoid placing signal lines near power lines to minimize electromagnetic interference.
Grounding Measures: Ensure proper grounding of the equipment to further reduce electromagnetic interference.
What are the installation methods for the proximity cable?
Installation Methods: The proximity cable supports both fixed and dynamic applications.
Fixed Installation: For fixed installations, the bending radius should be greater than five times the proximity cable diameter.
Dynamic Application: For dynamic applications, the bending radius should be greater than ten times the proximity cable diameter.
What certifications does the proximity cable have?
Certifications: The proximity cable is certified by CE and UL, ensuring safe operation in complex industrial environments.
Compliance: It complies with the RoHS directive, using halogen-free materials that meet environmental requirements.
Application Tips: When selecting a proximity cable, ensure it meets relevant industry standards and certification requirements.
