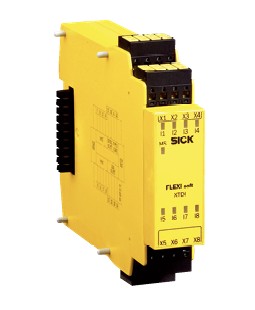

The FX3-XTDI80002 is a safety controller from the Flexi Soft series by SICK, designed specifically for safety control applications in industrial automation. The FX3-XTDI80002 can also integrate seamlessly with various industrial sensors, such as ultrasonic level sensors, capacitive level sensors, and level transmitters, making it a versatile choice for comprehensive safety control solutions. This product features eight safety inputs and eight test outputs, and it supports module I/O configuration via software (Flexi Soft Designer or Safety Designer). Designed to meet the highest safety standards, it is suitable for a wide range of industrial scenarios and effectively ensures the safety of both equipment and personnel.
Product Parameters
Safety Level:
Compliant with SIL 3 (IEC 61508), Category 4 (EN ISO 13849), and Performance Level PL e (EN ISO 13849).
Electrical Parameters:
Input Voltage: 13 V DC to 30 V DC (high level), -5 V DC to 5 V DC (low level).
Output Voltage: 15 V DC to 30 V DC, with output current ≤120 mA.
Internal Power Consumption: ≤2 W.
Mechanical Parameters:
Dimensions: 22.5 mm × 96.5 mm × 120.6 mm.
Weight: 139 g.
Environmental Parameters:
Operating Temperature: -25°C to +55°C.
Storage Temperature: -25°C to +70°C.
Humidity: ≤95%, non-condensing.
Product Features
High Safety:
Supports Flexi Loop technology, enabling flexible expansion of safety functions. This feature is particularly useful when integrating with ultrasonic level sensors and capacitive level sensors, which require high safety standards.
Flexible Configuration:
Configurable module I/O via dedicated software to meet various application needs. The FX3-XTDI80002 can easily adapt to different industrial environments, whether you are using level transmitters or other types of sensors.
High Reliability:
Designed for a lifespan of up to 20 years, with an average dangerous failure rate as low as 0.4×10⁻⁹ times per hour. This reliability ensures that your ultrasonic level sensors and capacitive level sensors will operate smoothly over long periods.
Strong Compatibility:
Seamlessly integrates with a variety of safety sensors and devices, including level transmitters. This compatibility allows the FX3-XTDI80002 to be used in diverse industrial applications.
Application Scenarios
The FX3-XTDI80002 is widely used in the following fields:
Mechanical Manufacturing:
Ensures the safety of operators and equipment in machine tools and robotic systems. It can also be paired with ultrasonic level sensors to monitor fluid levels in manufacturing processes.
Logistics and Warehousing:
Implements safety doors and emergency stop functions in automated warehouses and conveyance systems. Capacitive level sensors can be integrated to monitor inventory levels in real-time.
Automotive Manufacturing:
Monitors safety light curtains and safety doors on production lines to ensure safe production processes. The FX3-XTDI80002 can also work with level transmitters to manage fluid levels in automotive manufacturing.
Food Processing:
Provides safety protection functions on production lines while meeting the hygiene requirements of the food industry. Ultrasonic level sensors and capacitive level sensors can be used to monitor liquid levels in tanks and ensure proper hygiene.
Instructions for Use
Installation and Wiring
Installation Environment:
Choose a dust-free, non-corrosive, and well-ventilated environment, avoiding high temperatures, humidity, and strong electromagnetic interference. When installing ultrasonic level sensors or capacitive level sensors, ensure they are placed in optimal positions for accurate readings.
Wiring Requirements:
Follow the product manual strictly to ensure correct connections of input and output terminals. Ensure that level transmitters are properly wired to avoid signal interference.
Grounding Protection:
Ensure proper grounding of the device in accordance with electrical safety standards. This is especially important when using capacitive level sensors, which may be sensitive to electrical noise.
Parameter Settings
Basic Settings:
Configure safety inputs and outputs using the Flexi Soft Designer software. This software can also be used to set up parameters for ultrasonic level sensors and capacitive level sensors.
Advanced Functions:
Set up safety functions such as safety door monitoring and emergency stops based on specific application scenarios. You can also configure level transmitters to provide real-time data.
Maintenance and Inspection
Regular Inspection:
Check for any damage to the device's appearance and ensure the cooling system is functioning properly. Inspect ultrasonic level sensors and capacitive level sensors for any signs of wear or damage.
Parameter Verification:
Regularly verify safety function parameters to ensure compliance with safety standards. This includes checking the calibration of level transmitters.
Fault Diagnosis:
Troubleshoot issues based on error codes displayed by the device. If issues arise with ultrasonic level sensors or capacitive level sensors, refer to their specific troubleshooting guides.
Precautions
Environmental Conditions:
Avoid using the device in extreme temperatures and humidity. Ensure that level transmitters and capacitive level sensors are protected from harsh environmental conditions.
Power Supply Requirements:
Ensure stable power voltage to prevent voltage fluctuations. This is crucial for the accurate operation of ultrasonic level sensors.
Safe Operation:
Avoid contact with live parts during operation, and always disconnect power before maintenance. When working with capacitive level sensors, ensure they are properly grounded to avoid electrical hazards.
Frequently Asked Questions (FAQ)
How to Configure Safety Functions for FX3-XTDI80002?
Importance of Safety Function Configuration:
Configuring safety functions via software ensures that the device responds promptly in hazardous situations, protecting personnel and equipment. This is especially important when integrating with ultrasonic level sensors and capacitive level sensors.
Precautions During Configuration:
Ensure the device is correctly installed and connected before configuration, and back up the current settings to prevent accidental changes. This is also applicable when setting up level transmitters.
Effect After Configuration:
Once configured, the device operates according to the set safety logic, enhancing the system's safety and reliability. Ultrasonic level sensors and capacitive level sensors will also operate more efficiently within this framework.
How to Use the Test Outputs of FX3-XTDI80002?
Purpose of Test Outputs:
Used to verify the integrity of safety circuits and ensure the reliability of safety functions. This is particularly useful when testing level transmitters.
Usage Method:
Set the logic for test outputs via software and connect them to the input terminals of safety devices for testing. This can also be applied to ultrasonic level sensors and capacitive level sensors.
Precautions:
Ensure the device is in a safe state during testing to avoid accidental operations. This is especially important when testing capacitive level sensors.
How is the Environmental Adaptability of FX3-XTDI80002?
Environmental Adaptability:
Operates reliably within a temperature range of -25°C to +55°C, suitable for various industrial environments. This makes it ideal for use with ultrasonic level sensors and capacitive level sensors.
Protection Rating:
The enclosure has an IP20 protection rating, suitable for indoor use. This ensures that level transmitters and other sensors are protected from dust and moisture.
Humidity Requirements:
Operates at up to 95% humidity under non-condensing conditions. This is particularly beneficial for capacitive level sensors, which can be sensitive to humidity.
What is the Maintenance Cycle for FX3-XTDI80002?
Maintenance Cycle:
It is recommended to conduct a comprehensive inspection quarterly. This includes checking the functionality of ultrasonic level sensors and capacitive level sensors.
Maintenance Content:
Includes checking the device's appearance, cleaning dust, and verifying safety function parameters. Ensure that level transmitters are also calibrated during this process.
Preventive Maintenance:
Regular maintenance extends the device's lifespan and reduces the likelihood of failures. This is especially important for ultrasonic level sensors and capacitive level sensors.
Does FX3-XTDI80002 Support Expansion Modules?
Support for Expansion:
The device supports Flexi Loop technology, allowing connection to expansion modules. This can enhance the functionality of level transmitters and other sensors.
Types of Expansion Modules:
Includes safety input/output modules, relay modules, etc. These can be used to expand the capabilities of ultrasonic level sensors and capacitive level sensors.
Advantages of Expansion:
Enables more complex safety control functions through expansion modules
