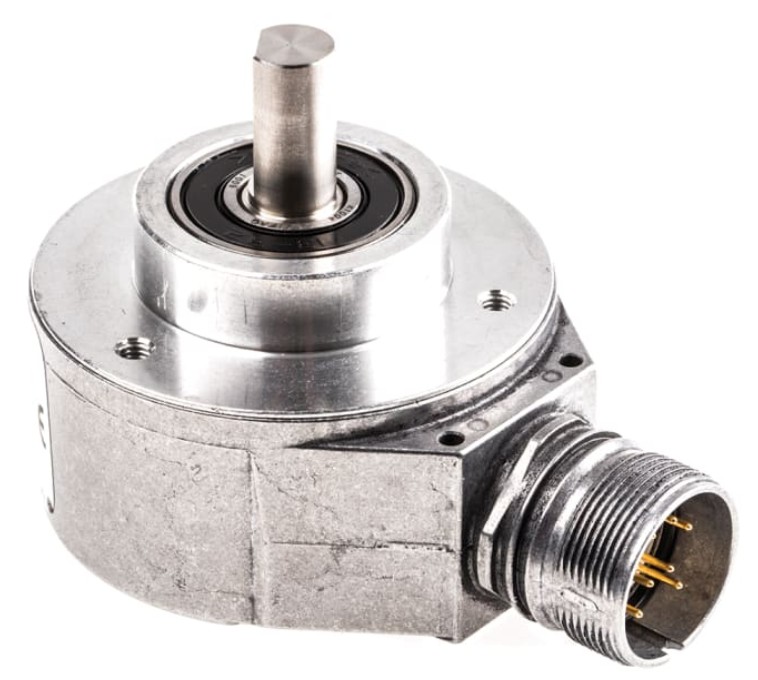

The DFS60B-S4PA10000 is a high-performance incremental encoder types produced by SICK, belonging to the TTL encoder and HTL encoder types. Widely used in industrial automation, this TTL encoder offers high-precision pulse output and flexible electrical interfaces, making it suitable for various applications.
Product Specifications
Pulse Output: 10,000 pulses per revolution, with a measurement step of 90° and pulse width deviation of ±0.01°.
Electrical Parameters:
Supply Voltage: 4.5V to 32V.
Output Frequency: Up to 600 kHz.
Load Current: Up to 30 mA.
Power Consumption: ≤0.7W (no load).
Interface Type:
Incremental Interface: Supports TTL encoder and HTL encoder levels.
Signal Channel Quantity: 6 channels.
Cable Connection: 8-core universal cable, length of 5 meters.
Product Features
High-Precision Measurement: The DFS60B-S4PA10000 delivers high-precision pulse output with an error limit of only ±0.05°, meeting the needs of high-precision measurement and control.
Flexible Electrical Interface: It supports multiple voltage level standards (TTL encoder/HTL encoder), with TTL encoder as the default factory setting. Users can adjust according to their specific requirements.
Fast Initialization: The device initializes in just 32 milliseconds, allowing it to quickly enter operational status.
High Reliability: The Mean Time to Dangerous Failure (MTTFD) is up to 300 years, in compliance with EN ISO 13849-1 standards.
Application Scenarios
The DFS60B-S4PA10000 incremental encoder types is suitable for a wide range of industrial automation applications, including but not limited to:
Mechanical Manufacturing: Used for position and speed feedback in machine tools and robots.
Logistics and Conveying Systems: Used for speed control and position detection of conveyor belts.
Automated Production Lines: Used for precise control of robotic arms and conveyor belts.
Food Processing and Packaging: Used for precise control on production lines to ensure efficiency and product quality.
Instructions for Use
Installation and Wiring
Installation Environment: Choose a dust-free, non-corrosive, and low-electromagnetic-interference environment to ensure proper heat dissipation.
Wiring Requirements: Follow the product manual strictly to ensure correct connections of power, signal, and motor cables.
Grounding Protection: Ensure proper grounding in accordance with national and local electrical safety standards.
Parameter Settings
Basic Parameter Settings: Configure motor parameters, control modes, and frequency ranges based on application requirements.
Advanced Function Configuration: Features such as PID control and multi-speed control can be configured according to specific application needs.
Maintenance and Inspection
Regular Inspection: Check for physical damage, dust accumulation on heat sinks, and proper fan operation.
Parameter Verification: Regularly verify device settings to ensure they match application requirements.
Fault Diagnosis: Troubleshoot based on device fault codes.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Requirements: Ensure stable supply voltage to prevent damage from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation and always disconnect power during maintenance.
FAQs and Answers
What is the pulse output accuracy of the DFS60B-S4PA10000?
The DFS60B-S4PA10000 offers high-precision pulse output with a measurement step of 90° and pulse width deviation of only ±0.01°, and an error limit of ±0.05°. This high accuracy makes it suitable for industrial applications requiring precise measurement and control, such as in mechanical manufacturing and automated production lines.
What are the characteristics of the electrical interface of this encoder?
This encoder supports an incremental interface with both TTL encoder and HTL encoder voltage levels, defaulting to TTL encoder at the factory. It has 6 signal channels to meet complex signal processing needs and comes with an 8-core universal cable, 5 meters long, for flexible connection to various control systems.
What is the initialization time of this encoder?
The initialization time of this encoder is just 32 milliseconds. This rapid initialization allows the device to quickly enter operational status, reducing system downtime and improving production efficiency for automated equipment requiring fast response times.
How reliable is this encoder?
This encoder has an MTTFD of up to 300 years, in compliance with EN ISO 13849-1 standards. This high reliability ensures stable performance over long-term operation, reducing maintenance costs and ensuring long-term stability in industrial environments.
What is the output frequency range of this encoder?
The output frequency range of this encoder is up to 600 kHz. This high-frequency capability allows it to adapt to fast-moving equipment such as high-speed conveyors and precision machine tools. Users can adjust the output frequency according to equipment requirements to achieve optimal control.
What is the supply voltage range of this encoder?
This encoder operates on a supply voltage range of 4.5V to 32V. This wide voltage range makes it adaptable to different power grid standards worldwide, enhancing its versatility. Users should ensure stable supply voltage to prevent damage from voltage fluctuations.
What is the load current of this encoder?
The load current of this encoder is up to 30 mA. This low load current design allows stable operation in low-power environments, reducing energy consumption. Users should ensure that the power supply meets the device's current requirements for proper operation.
What is the power consumption of this encoder?
This encoder has a power consumption of ≤0.7W (no load). This low-power design significantly reduces energy consumption over long-term operation, making it suitable for applications with strict energy requirements. Users should consider the device's power characteristics when selecting a power supply to ensure system stability and cost-effectiveness.
How many signal channels does this encoder have?
This encoder provides 6 signal channels. This multi-channel design allows simultaneous processing of multiple signals, meeting complex industrial control needs. Users can configure the signal channels flexibly based on application requirements to achieve optimal control.
What is the cable connection method of this encoder?
This encoder comes with an 8-core universal cable, 5 meters long. This standard cable connection allows easy integration with various control systems. Users should ensure correct cable connections and protect the cable from mechanical damage and electromagnetic interference to ensure stable signal transmission.
