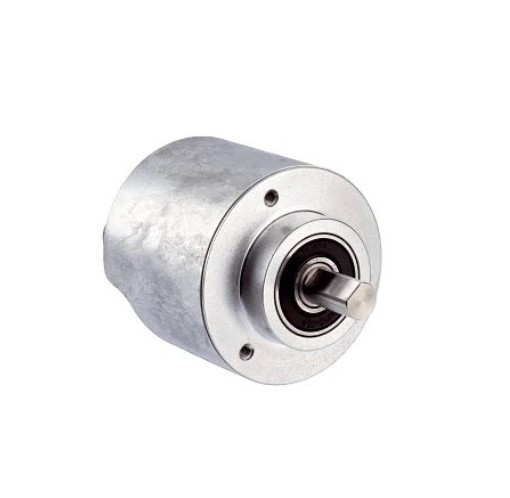

The SICK AFM60A-S4NB018X12 is a high-performance absolute encoder designed for precise position feedback in industrial automation. As a reliable SICK encoder, it ensures accurate encoder signal transmission, making it ideal for applications requiring absolute position measurement. Its main features include high resolution, fast response, and reliable communication capabilities.
Product Specifications
Resolution: The maximum number of steps per revolution is 262,144 (18 bits), with a maximum number of revolutions of 4,096 (12 bits). The maximum resolution is 18 bits × 12 bits.
Communication Interface: Supports PROFINET with data transfer rates of 10 Mbit/s or 100 Mbit/s, using CAT-5e cables.
Electrical Parameters: Operating voltage range is 10V to 30V, with power consumption not exceeding 3W (no load) and polarity reversal protection.
Mechanical Parameters: Features a solid shaft design, flange-mounted, with a shaft diameter of 10mm, shaft length of 19mm, and a weight of 0.2kg.
Operating Temperature: The minimum operating temperature is -40°C, and the maximum operating temperature is +85°C.
Product Features
High Precision and Repeatability: The AFM60A-S4NB018X12 offers extremely high position measurement accuracy with an error limit of only ±0.03° and a repeatability standard deviation of ±0.002°.
Fast Response: The encoder has an initialization time of 6 seconds and a cycle time of no more than 1ms, meeting the demands of high-speed industrial applications.
Reliable Communication: Supports PROFINET V4.1 Class 3, ensuring seamless integration with industrial networks.
Robust and Durable: The housing is made of aluminum alloy, and the shaft is made of stainless steel, making it suitable for harsh industrial environments.
Application Scenarios
The AFM60A-S4NB018X12 is suitable for a variety of industrial automation scenarios, including:
Robotics: Used for joint position feedback to ensure precise and repeatable robotic motion.
Mechanical Transmission Systems: Such as conveyor belts and elevators, for position and speed control.
Automated Production Lines: For high-precision positioning and synchronization control.
Installation and Wiring Instructions
Installation Environment: Choose a dust-free, non-corrosive gas, and low electromagnetic interference environment with good heat dissipation.
Wiring Requirements: Follow the wiring diagram in the product manual to ensure correct connections for power and encoder signal lines.
Grounding Protection: Ensure proper grounding of the device in compliance with national and local electrical safety standards.
Parameter Settings
Basic Parameter Settings: Include steps per revolution, number of revolutions, counting direction, sampling rate, etc.
Advanced Function Configuration: Such as speed calculation units and diagnostic data, which can be configured according to specific application needs.
Maintenance and Inspection
Regular Inspection: Check the encoder for any damage, dust accumulation on the heat sink, and proper fan operation.
Parameter Verification: Regularly verify the absolute encoder's parameter settings to ensure they match the application requirements.
Precautions
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Requirements: Ensure stable power voltage to prevent damage to the absolute encoder from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation to ensure the safety of operators.
Common Questions and Answers
What is the resolution of the SICK absolute encoder?
The maximum resolution per revolution of the SICK absolute encoder is 262,144 steps (18 bits), with a maximum number of revolutions of 4,096 (12 bits). Therefore, its maximum resolution is 18 bits × 12 bits. This high resolution allows it to provide extremely precise position feedback, making it suitable for industrial applications with high precision requirements, such as robotic joint control.
Which communication protocols does this absolute encoder support?
This SICK encoder supports PROFINET V4.1 Class 3 with data transfer rates of 10 Mbit/s or 100 Mbit/s. PROFINET is a widely used Ethernet communication protocol in industrial automation, enabling fast and reliable data transfer. Users can connect the encoder signal using standard CAT-5e cables to ensure stable communication and strong interference resistance.
What is the operating temperature range of the AFM60A-S4NB018X12?
The operating temperature range of the AFM60A-S4NB018X12 is -40°C to +85°C. This wide temperature range allows it to adapt to various harsh industrial environments, such as cold outdoor conditions or high-temperature workshops. When selecting an installation location, users should avoid extreme temperatures that may affect the absolute encoder's performance.
What are the installation options for the SICK encoder?
The SICK encoder uses a flange-mounted installation method suitable for continuous shafts. Flange mounting provides a stable mechanical connection, ensuring the encoder does not loosen during operation due to vibration. During installation, users should ensure the mounting surface is flat and clean and use appropriate fasteners.
What is the power voltage range of the absolute encoder?
The operating voltage range of the absolute encoder is 10V to 30V. This wide voltage range allows it to adapt to different power standards in various countries and regions. Users should ensure stable power voltage to prevent damage to the SICK encoder from voltage fluctuations.
How is the repeatability precision of the AFM60A-S4NB018X12?
The repeatability standard deviation of the AFM60A-S4NB018X12 is ±0.002°. This extremely high repeatability means the absolute encoder can produce highly consistent results when measuring the same position multiple times. This feature is crucial for applications requiring high-precision repeat positioning, such as robotics or precision machining.
What is the maximum speed of this SICK encoder?
The maximum speed of this SICK encoder is 4,096 rpm. This high-speed capability meets the needs of fast-rotating equipment, such as high-speed conveyor belts or high-speed mechanical shafts. Users should ensure that the mechanical design of their equipment can withstand the corresponding speed.
What is the housing material of the SICK absolute encoder?
The housing of the SICK absolute encoder is made of aluminum alloy, and the shaft is made of stainless steel. The aluminum alloy housing provides good heat dissipation and corrosion resistance, while the stainless steel shaft can withstand higher mechanical loads. This material combination ensures the SICK encoder's reliability and durability in harsh environments.
What is the power consumption of the SICK absolute encoder?
The power consumption of the SICK absolute encoder does not exceed 3W (no load). This low power consumption allows it to operate without adding excessive energy consumption, making it suitable for industrial applications with energy-saving requirements. Users can consider its low power consumption when designing the power system to optimize overall energy use.
What diagnostic functions does the AFM60A-S4NB018X12 offer?
The AFM60A-S4NB018X12 provides rich diagnostic data, including temperature, voltage, and communication status. These diagnostic data help users monitor the SICK encoder's operating status in real-time and detect potential issues promptly. For example, by monitoring temperature data, users can take measures before the device overheats to prevent absolute encoder damage.
