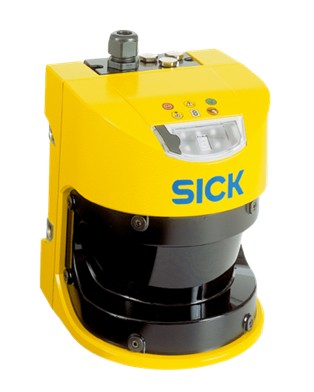

The SICK S30A-4011CA is a high-performance safety laser scanner, part of the SICK S3000 Advanced Series, renowned for its exceptional optical sensor performance and safety laser technology. This device is widely used in industrial automation and safety fields, providing reliable protection and monitoring solutions for complex industrial environments. This article will provide a detailed introduction to its product parameters, features, application scenarios, usage instructions, and precautions, as well as detailed answers to common questions.
Product Parameters
Safety Level: The SICK S3000 S30A-4011CA complies with the IEC 61496 standard, achieving Type 3 safety level with a performance level of PL d.
Scanning Range: The protection field can reach up to 4 meters, the warning field up to 49 meters (20 meters at 20% reflectivity), and the measurement range is 49 meters.
Scanning Angle: The wide scanning angle of 190° can cover large areas.
Resolution: Configurable resolutions include 30mm, 40mm, 50mm, 70mm, and 150mm.
Electrical Parameters: The supply voltage is 24V DC (16.8V DC - 28.8V DC), with a maximum current consumption of 2.3A.
Output Signal: The safety output (OSSD) is 2 x 500mA, and the diagnostic output is 3 x 100mA.
Environmental Adaptability: The operating temperature range is from -10°C to +50°C, and the enclosure protection rating is IP65.
Product Features
High-Precision Scanning: The SICK S3000 S30A-4011CA uses advanced optical sensor technology to achieve high-precision scanning and detection.
Multiple Safety Functions: It supports multiple sampling, external device monitoring (EDM), and static protection field switching to ensure reliability in complex environments.
Flexible Configuration: With an integrated configuration memory, it supports safe communication via RS-422 and EFI, allowing users to configure it flexibly according to their needs.
Robust and Durable: The enclosure is made of die-cast aluminum with an IP65 protection rating, suitable for long-term use in harsh environments.
Application Scenarios
Industrial Automation: In scenarios such as mechanical processing and logistics warehousing, the SICK S3000 S30A-4011CA can monitor work areas to prevent personnel from entering hazardous zones.
Robot Safety: It provides safety protection for robot work areas, ensuring the safety of human-robot collaboration.
Logistics and Warehousing: In logistics centers and warehousing facilities, the device can monitor forklift aisles and goods storage areas to prevent collisions and accidents.
Usage Instructions
Installation and Commissioning: Install the device in a dust-free and non-corrosive gas environment, ensuring that the scanning area is free of obstructions.
Parameter Settings: Use the configuration tool to set the scanning range, resolution, and safety functions to match the application scenario.
Maintenance and Inspection: Regularly clean the device surface of dust, check the connection cables, and ensure the enclosure protection rating to maintain normal operation.
Precautions
Environmental Requirements: Avoid using the device in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance degradation.
Safe Operation: Do not directly contact the safety laser emission area while the device is in operation to ensure the safety of operators.
Maintenance and Care: Regularly inspect the electrical connections and mechanical components of the device, and replace any damaged parts promptly.
Materials and Manufacturing Process
The SICK S3000 S30A-4011CA safety laser scanner is designed and manufactured using high-quality materials and advanced processes to ensure long-term stable operation in complex industrial environments. The enclosure is made of die-cast aluminum with an IP65 protection rating, effectively guarding against dust and water spray. This material and process selection not only enhances the device's reliability but also maintains stable optical sensor performance in harsh environments. Additionally, the optical sensor technology of the S30A-4011CA is optimized to reduce reflective interference, ensuring detection accuracy in high-reflectivity environments.
Additional Features
The SICK S3000 S30A-4011CA offers a variety of additional features to meet diverse industrial application needs. It supports multiple sampling functions (adjustable from 2 to 16 times), which effectively reduce false alarms and improve detection reliability. Moreover, it features external device monitoring (EDM) to monitor the status of external devices in real-time, ensuring safe operation. With integrated configuration memory and an RS-422 interface, users can easily achieve safe communication and measurement data output, further enhancing the device's flexibility and compatibility.
Product Advantages
The main advantages of the SICK S3000 S30A-4011CA lie in its high performance and reliability. It complies with the IEC 61496 standard, achieving Type 3 safety level with a performance level of PL d, providing reliable protection for complex industrial environments. Its scanning angle reaches 190°, with a protection field of up to 4 meters and a warning field of up to 49 meters (20 meters at 20% reflectivity), covering a large area. The device also supports static protection field switching and multiple sampling functions, adapting to dynamically changing work environments and reducing false alarms.
After-Sales Service
SICK offers comprehensive after-sales service for the S30A-4011CA to ensure users have no worries during use. Users can access detailed product data and technical support through the SICK official website. Additionally, SICK provides customized installation guidance and maintenance recommendations to help users better utilize and maintain the device. If users encounter issues during use, the SICK technical support team will provide timely responses and solutions to ensure the device operates efficiently.
Frequently Asked Questions and Answers
1.How to Adjust the Scanning Range of the S30A-4011CA?
Importance of Adjusting Scanning Range: The scanning range of the S30A-4011CA can be adjusted according to the application scenario to ensure the device covers the required monitoring area. Users can set the protection and warning fields through the configuration tool to meet different environmental needs.
Adjustment Method: In the configuration interface, users can select different resolutions and scanning angles while setting the protection and warning field ranges. For example, in narrow aisles, a smaller scanning range can be chosen to improve detection accuracy.
Effect After Adjustment: After adjusting the scanning range, the device can more accurately detect potential hazards, enhancing safety and reliability.
2.What Safety Functions Does the S30A-4011CA Offer?
Importance of Safety Functions: The S30A-4011CA provides multiple safety functions to ensure reliability in complex industrial environments. These include multiple sampling, external device monitoring (EDM), and static protection field switching.
Main Safety Functions: The device supports restart interlock, multiple sampling, monitoring situation switching, and static protection field switching. These functions can shut down the machine promptly upon detecting abnormalities, preventing accidents.
Application Scenarios: In robot work areas or logistics aisles, these safety functions can effectively prevent personnel from entering hazardous zones, ensuring the safety of human-robot collaboration.
3.How to Set the Protection and Warning Fields Using the Configuration Tool?
Role of Configuration Tool: The configuration tool of the S30A-4011CA allows users to set the range of the protection and warning fields according to specific needs to adapt to different application scenarios.
Setting Method: Users can configure the protection field range (up to 4 meters) and warning field range (up to 49 meters) through the configuration tool, adjusting the resolution and response time as needed.
Effect After Setting: Properly configuring the protection and warning fields can effectively enhance the device's safety and reliability while reducing false alarms.
4.How Does the Multiple Sampling Function of the S30A-4011CA Work?
Importance of Multiple Sampling: The multiple sampling function detects targets through multiple samples to ensure the accuracy of detection results and reduce false alarms.
Working Principle: The S30A-4011CA supports multiple sampling from 2 to 16 times, which can be configured according to actual needs. Multiple sampling effectively filters out interference signals, ensuring reliable detection results.
Application Scenarios: In complex environments, such as those with reflective or interfering objects, the multiple sampling function can significantly improve the detection accuracy of the device.
5.How to Implement Static Protection Field Switching on the S30A-4011CA?
Role of Static Protection Field Switching: Static protection field switching allows users to switch protection fields according to different working modes to adapt to dynamically changing work environments.
Implementation Method: Users can set multiple protection fields through the configuration tool and switch between them during operation using external signals or internal logic.
Effect After Switching: Through static protection field switching, the device can provide optimal safety protection in different working modes while minimizing unnecessary shutdowns.
6.How to Configure Measurement Data Output for the S30A-4011CA?
Role of Measurement Data Output: The S30A-4011CA supports outputting measurement data via the RS-422 interface, facilitating communication and data exchange with other devices.
Configuration Method: Users can set the output format and frequency of measurement data through the configuration tool and transmit the data to other devices via the RS-422 interface.
Effect After Configuration: Measurement data output can be integrated with other systems to achieve more complex safety monitoring and automation control.
7.How to Ensure the Proper Functioning of the External Device Monitoring (EDM) Feature on the S30A-4011CA?
Role of External Device Monitoring (EDM): The EDM function monitors the status of external devices to ensure safe operation.
Ensuring Proper Functioning: Users need to correctly connect external devices and set the EDM function parameters in the configuration tool. The device will regularly check the status of external devices and issue an alarm upon detecting abnormalities.
Effect After Proper Functioning: The EDM function can effectively prevent safety accidents caused by external device failures, enhancing system reliability.
8.How to Use the Restart Interlock Function of the S30A-4011CA?
Role of Restart Interlock Function: The restart interlock function ensures that the device does not automatically restart after shutdown until specific conditions are met, preventing accidental startup.
Usage Method: Users can enable the restart interlock function through the configuration tool and set related conditions. For example, the device will shut down upon detecting abnormalities and can only restart after the abnormality is cleared and manually reset.
Effect After Usage: The restart interlock function can effectively prevent accidental startup of the device when it is not ready, ensuring the safety of operators.
9.How Good is the Anti-Interference Capability of the S30A-4011CA?
Importance of Anti-Interference Capability: As a safety laser scanner, the anti-interference capability of the S30A-4011CA is crucial for ensuring stable operation in complex industrial environments. In scenes with reflective objects, dust, or other interference sources, reliable anti-interference performance can effectively reduce false alarms and enhance system safety.
Specific Performance of Anti-Interference Capability: The S30A-4011CA uses advanced optical sensor technology and multiple sampling functions (adjustable from 2 to 16 times) to enhance anti-interference capability. Additionally, the device supports external device monitoring (EDM) to monitor external environmental changes in real-time and adjust scanning areas through static protection field switching, further reducing false alarms. Its enclosure protection rating of IP65 effectively guards against dust and water spray interference.
Performance in Practical Applications: In practical applications, the anti-interference capability of the S30A-4011CA enables it to maintain high-precision detection performance in complex industrial environments. For example, in logistics centers or mechanical processing workshops, the device can effectively identify reflective objects and interference sources, ensuring the reliability of safety protection.
10.What Precautions Should Be Taken for the Maintenance and Care of the S30A-4011CA?
Importance of Maintenance and Care: Regular maintenance and care of the S30A-4011CA are key to ensuring its long-term stable operation. Proper maintenance can extend the device's lifespan, reduce failure rates, and ensure its reliability in complex environments.
Specific Measures for Maintenance and Care: First, regularly clean the device surface and lens of dust or dirt to ensure the performance of the optical sensor is not affected. Second, check the electrical connections of the device to ensure they are secure and grounded properly, preventing false alarms caused by poor contact or electromagnetic interference. Although the device's enclosure protection rating is IP65, suitable for harsh environments, it should still avoid prolonged exposure to extreme temperatures or high humidity.
Effect After Maintenance: Through regular maintenance, the S30A-4011CA can maintain optimal performance, reducing downtime caused by device failures. Regular inspection and cleaning can also effectively extend the device's lifespan and lower maintenance costs.
