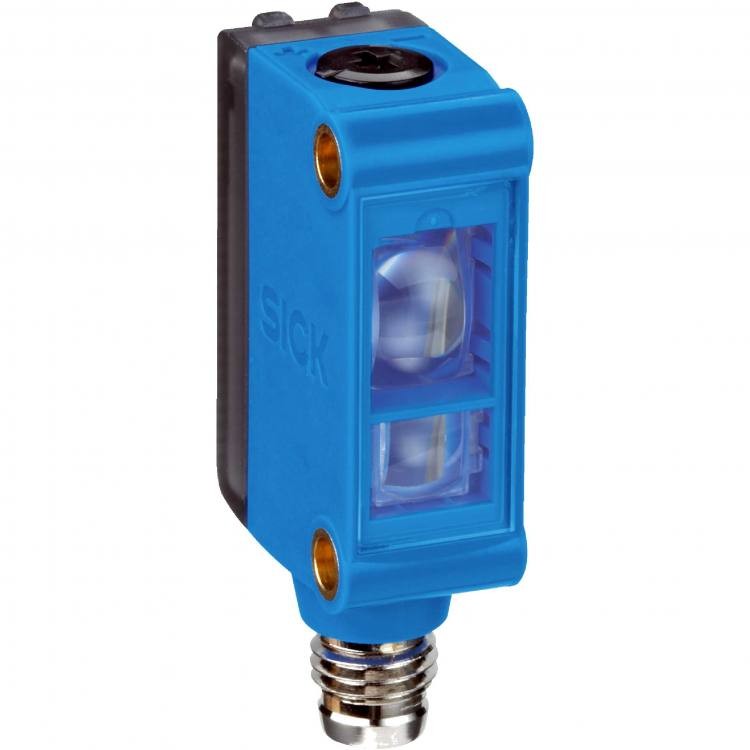

The SICK KTM-MB31111P is a smart contrast sensor leveraging diffuse reflective technology to detect color marks with precision in industrial automation. Equipped with a white LED and dynamic teaching, this smart sensor adapts rapidly to varying tasks across printing, packaging, and label inspection.
Product Specifications
Dimensions: 12 mm × 31.5 mm × 21 mm.
Detection Range: Maximum 12.5 mm, with a tolerance of ±3 mm.
Light Source: White LED with an average lifespan of 100,000 hours at +25°C.
Light Spot Size: Diameter of 2 mm at a detection range of 12.5 mm.
Supply Voltage: 12 V DC to 24 V DC.
Current Consumption: < 50 mA.
Switching Frequency: 10 kHz, enabled by smart sensors' advanced signal processing for high-speed operations.
Response Time: 50 µs.
Output Type: PNP/NPN.
Connection: M8 four-pin plug.
Housing Material: ABS.
Protection Rating: IP67.
Operating Temperature Range: -10°C to +55°C.
Storage Temperature Range: -20°C to +75°C.
Product Features
High-Precision Detection: The white LED light source and small light spot (2 mm) ensure high-precision detection of color contrasts, a core capability of contrast sensors.
Dynamic Teaching Function: Smart sensors support dynamic teaching, allowing adjustment of the switching threshold via a potentiometer to adapt to different backgrounds and marks.
Fast Response: With a response time of 50 µs and a switching frequency of 10 kHz, it is suitable for high-speed production lines.
Environmental Adaptability: The IP67 protection rating makes diffuse reflective sensors suitable for harsh environments, even with dust or moisture interference.
Easy Installation and Commissioning: Equipped with green and yellow LED indicators to display power status and output status.
Applications
Printing and Packaging: Contrast sensors detect color marks to ensure accuracy in printing and packaging processes
Label Detection: Used in label stripping machines and labeling machines to detect label spacing and size via diffuse reflective technology for versatile material compatibility.
General Industrial Use: Smart sensors are suitable for various applications requiring adaptive detection, such as transparent or glossy object recognition.
Installation and Wiring
Installation Location: Choose an environment with minimal strong light interference to ensure the light spot accurately illuminates the target.
Wiring Requirements: Connect using an M8 four-pin plug, ensuring correct connections for power and signal lines.
Grounding Protection: Ensure proper grounding to avoid electromagnetic interference.
Parameter Settings
Dynamic Teaching: Adjust the switching threshold using the potentiometer to ensure accurate differentiation between background and marks.
Light/Dark Switching Mode: Select the light-on or dark-on mode using the rotary switch.
Maintenance and Inspection
Regular Cleaning: Keep the sensor surface clean to avoid dust or dirt affecting detection accuracy.
Check Connections: Ensure power and signal lines are securely connected to avoid poor contact.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong light interference environments.
Power Supply Requirements: Ensure stable supply voltage to prevent voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation to ensure personnel safety.
Frequently Asked Questions and Answers
What is the detection range of KTM-MB31111P?
The maximum detection range is 12.5 mm, with a tolerance of ±3 mm.
What is the response time of the sensor?
The response time is 50 µs.
How to perform dynamic teaching?
Adjust the switching threshold using the potentiometer to ensure accurate differentiation between background and marks.
What is the output type of the sensor?
The output type is PNP/NPN.
What is the protection rating of the sensor?
The protection rating is IP67.
What is the operating temperature range of the sensor?
The operating temperature range is -10°C to +55°C.
What is the housing material of the sensor?
The housing is made of ABS.
What is the switching frequency of the sensor?
The switching frequency is 10 kHz.
How to select light-on/dark-on mode?
Select the light-on or dark-on mode using the rotary switch.
What is the storage temperature range of the sensor?
The storage temperature range is -20°C to +75°C.
