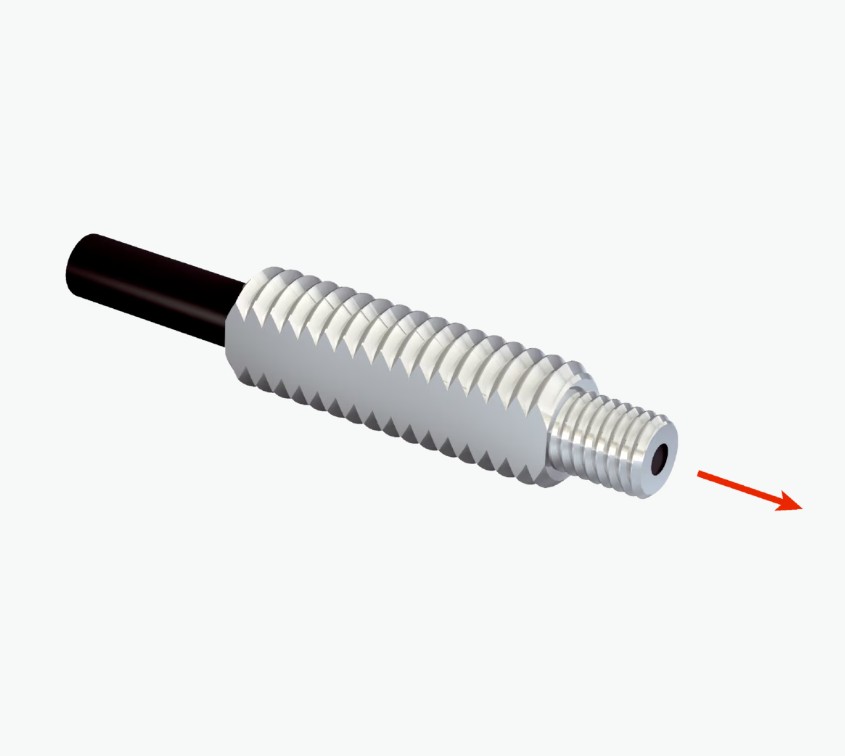

As a type of sick optical sensor, the optical proximity sensor or through beam optical sensor Sick LL3-TR01 is a high-performance fiber optic cable designed for high-precision detection in industrial automation. It operates on the principle of a through-beam system and is suitable for a variety of complex environments and applications, including high-flexibility static applications and dynamic robotic technologies.
Product Details
Product Parameters
Fiber Length: 2,000 mm
Fiber Material: Polymethylmethacrylate (PMMA), with a Polyethylene (PE) jacket
Fiber Optic Head Material: Brass (CuZn)
Operating Principle: Through-beam system
Compatible Fiber Optic Amplifiers: GLL170(T), WLL180, WLL24 Ex, WLL80
Maximum Switching Distance:
Up to 3,600 mm when used with WLL80
Up to 4,000 mm when used with WLL180T
Up to 680 mm when used with GLL170T
Minimum Detectable Object Diameter: 0.3 mm
Ambient Temperature Range: -40°C to +70°C
Dynamic Flexibility: Suitable for robotic technology (dynamic flexibility), with a bending radius of 4 mm
Weight: 35 g
Product Features
High-Flexibility Design: The sick optical sensor is suitable for both static and dynamic robotic applications.
Trimmable Fiber: The fiber of the optical proximity sensor can be trimmed to meet specific application needs.
Strong Compatibility: The through beam optical sensor is compatible with multiple fiber optic amplifiers, offering a wide range of detection distances.
Lens Compatibility: The sick optical sensor supports additional lenses to further optimize detection performance.
Durability: The through beam optical sensor features a brass fiber optic head and polyethylene jacket, making it suitable for harsh environments.
Application Scenarios
Industrial Automation: The sick optical sensor is suitable for robotic technology, material detection, and position monitoring.
Harsh Environments: With its high-flexibility design and wide temperature range, the through beam optical sensor can operate reliably in high and low-temperature environments.
Long-Distance Detection: Compatible with various fiber optic amplifiers, the optical proximity sensor provides detection capabilities from short to long distances.
Usage Instructions
Installation
Ensure the fiber optic cable of the sick optical sensor is securely installed without excessive bending or stress. Use an M4 threaded sleeve for fixation. This ensures the stability of the optical proximity sensor.
Wiring
Choose the appropriate fiber optic amplifier based on your application needs and ensure correct connections for the through beam optical sensor.
Parameter Settings
Select the appropriate mode of the fiber optic amplifier to optimize detection distance based on your detection requirements for the sick optical sensor.
Maintenance
Regularly inspect the fiber optic surface of the through beam optical sensor for damage or contamination and clean it if necessary. This helps maintain the performance of the optical proximity sensor.
Precautions
Environmental Conditions: Avoid using the sick optical sensor outside its specified operating temperature range.
Cleaning and Maintenance: Regularly clean the fiber optic surface of the optical proximity sensor, avoiding corrosive cleaning agents.
Signal Interference: Avoid placing the through beam optical sensor near strong electromagnetic interference sources.
Common Questions and Answers (FAQ)
What is the Maximum Detection Range?
The maximum detection range depends on the fiber optic amplifier used. For example, it can reach up to 3,600 mm with WLL80 and up to 4,000 mm with WLL180T. This makes the sick optical sensor suitable for various applications.
Does the LL3-TR01 Support Dynamic Applications?
Yes, the LL3-TR01 supports dynamic applications, especially robotic technology. It features high flexibility with a bending radius of 4 mm, making it suitable for dynamic applications using the through beam optical sensor.
Can the Fiber of the LL3-TR01 Be Trimmed?
Yes, the fiber of the optical proximity sensor can be trimmed using a dedicated fiber optic cutter (e.g., FC 5304141) to ensure optimal performance after cutting. This feature enhances the versatility of the sick optical sensor.
What is the Operating Temperature Range?
The operating temperature range is -40°C to +70°C, making it suitable for use in a variety of environments for the through beam optical sensor.
Is the LL3-TR01 Compatible with Infrared Light?
No, the LL3-TR01 is not compatible with infrared light (1,450 nm) and is designed for use with visible red light only. This is important to note when selecting the sick optical sensor.
What is the Minimum Detectable Object Diameter?
The minimum detectable object diameter is 0.3 mm, depending on the ideal detection distance and settings. This makes the optical proximity sensor highly precise.
What is the Fiber Material of it?
The fiber material is Polymethylmethacrylate (PMMA), with a Polyethylene (PE) jacket, offering good durability and chemical resistance for the through beam optical sensor.
What is the Weight of it?
The weight of the LL3-TR01 is 35 g. This lightweight design makes it suitable for various applications, including robotic technology using the sick optical sensor.
Does the LL3-TR01 Support Additional Lenses?
Yes, the LL3-TR01 supports additional lenses that users can select to optimize detection performance based on their needs. This feature enhances the functionality of the sick optical sensor.
What is the Material of the Fiber Optic Head of the LL3-TR01?
The fiber optic head is made of brass (CuZn), offering good mechanical properties and durability for the through beam optical sensor.
