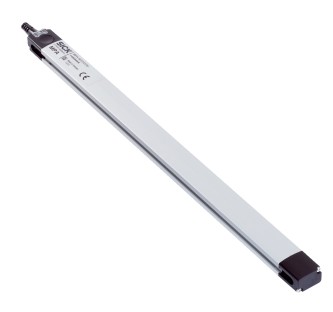

The MPA-215THTP0 is a SICK analog sensor widely used in the field of industrial automation.It supports a variety of output functions,including analog signals and IO-Link interfaces,enabling seamless integration with modern automation systems.With its high-precision measurement capabilities and robust IO-Link communication features,the MPA-215THTP0 stands out in the analog sensor market and has become an essential component in industrial automation.
Product Specifications
Measurement Range:215 mm,with an accuracy of±1 mm.
Output Functions:Supports analog signals(0-10V and 4-20mA)and IO-Link interface.
Electrical Specifications:DC 4-wire system,with a supply voltage of 15V-30V DC.
Housing Protection Rating:IP65,IP67,and IP68.
Sampling Rate:Typical value of 1.15 ms.
Ambient Temperature:-20°C to+70°C.
Connection Type:M8 four-pin plug or socket.
Product Features
High-Precision Measurement:The MPA-215THTP0 offers a repeatability of up to 0.06 mm and a resolution of 0.03%FSR,ensuring accurate measurements in complex industrial environments.
IO-Link Support:Compatible with the IO-Link V1.0.1 protocol,enabling fast data transmission and device parameterization.
Flexible Installation:Available with various adapters and mounting brackets,suitable for round cylinders,tie-rod cylinders,T-slot cylinders,and other cylinder types.
Smart Diagnostics:Equipped with built-in LED status indicators and teach-in functions for easy commissioning and troubleshooting.
Applications
Industrial Automation:In mechanical manufacturing,automotive production,and logistics conveyance,the MPA-215THTP0 can precisely control cylinder positions to improve production efficiency.
Robotics:Integrated with robot control systems via the IO-Link interface to achieve precise positioning and synchronized operations.
Food Processing:Its high protection rating and corrosion resistance make it suitable for clean and humid environments in the food processing industry.
Instructions for Use
Installation and Wiring
Installation Environment:Choose a dust-free environment free of corrosive gases to ensure proper heat dissipation of the device.
Wiring Requirements:Follow the manual strictly to ensure correct connections of power and signal lines.
Parameter Settings
IO-Link Configuration:Set the sensor's measurement range,output type,and other parameters through the IO-Link master station.
Analog Output Settings:Users can select voltage or current output based on their needs and calibrate it using the teach-in function.
Maintenance and Inspection
Regular Checks:Inspect the sensor's housing for damage and clean dust from the connecting cables.
Troubleshooting:Use the LED status indicators to monitor the device's operating status,and reset parameters if necessary.
Precautions
Environmental Conditions:Avoid using in high-temperature,high-humidity,or strong electromagnetic interference environments.
Power Requirements:Ensure stable supply voltage to prevent damage to the sensor from voltage fluctuations.
Safe Operation:Avoid contact with live parts during operation,and disconnect power during maintenance.
Materials and Manufacturing Process
The MPA-215THTP0 is made of high-quality materials and advanced manufacturing processes to ensure reliability and durability in harsh industrial environments.The housing is made of metal,aluminum alloy,and plastic,offering excellent mechanical strength and corrosion resistance.The sensor's cable is made of PUR material,which is oil-resistant,lubricant-resistant,and chain-flexible,making it suitable for complex environments.Additionally,its design meets IP65,IP67,and IP68 protection ratings,guarding against dust,water,and high-pressure water ingress.
In terms of manufacturing,the MPA-215THTP0 employs high-precision magnetic detection technology to ensure high-resolution and repeatable measurements.Its internal circuit design features polarity reversal protection and short-circuit protection,further enhancing the device's reliability and safety.
Additional Functions
The MPA-215THTP0 offers a variety of additional functions to meet different industrial needs.Firstly,it supports teach-in functions via the operating panel,allowing users to easily set the measurement range,choose between current or voltage output,or parameterize through IO-Link.Additionally,the sensor is equipped with status indicator LEDs that can display the device's operating status in real-time,facilitating quick diagnostics and maintenance.
The IO-Link interface not only supports standard functions but also enables remote parameterization and intelligent diagnostics of the device.Through IO-Link,users can monitor the sensor's status in real-time,identify potential issues in advance,and perform preventive maintenance.
Product Advantages
The MPA-215THTP0's strengths lie in its high-precision measurement capabilities and robust communication features.It offers a measurement accuracy of up to±1 mm and a repeatability of 0.06 mm,meeting the demands of high-precision positioning.Moreover,its support for both IO-Link interfaces and analog signal outputs allows seamless integration with various automation systems,providing great flexibility.
The sensor's high protection rating and corrosion resistance enable stable operation in extreme environments,while its built-in intelligent diagnostic functions further enhance system reliability and maintenance efficiency.These advantages make the MPA-215THTP0 an ideal sensor solution in the field of industrial automation.
After-Sales Service
SICK provides comprehensive after-sales service for the MPA-215THTP0,ensuring worry-free use for customers.The company offers technical support and training services to help users quickly master the installation,commissioning,and maintenance of the sensor.Additionally,SICK provides spare parts supply and equipment upgrade services to ensure long-term stable operation of the device.
Through the intelligent diagnostic functions of IO-Link,users can monitor the device's status in real-time,identify potential issues in advance,and perform preventive maintenance.This intelligent diagnostic feature not only improves system reliability but also reduces maintenance costs and extends the device's lifespan.
Frequently Asked Questions(FAQ)
1.How to configure the IO-Link interface of the MPA-215THTP0?
Configuring the IO-Link interface is key to efficient communication.The MPA-215THTP0 supports the IO-Link V1.0.1 protocol,and users can parameterize the device through the IO-Link master station.During configuration,ensure the communication link between the sensor and the master station is correctly connected,and set parameters such as measurement range and output type using the master station software.
The flexibility of the IO-Link interface lies in its ability to achieve fast data transmission and device diagnostics.Through IO-Link,users can monitor the sensor's status in real-time and adjust parameters as needed.This intelligent communication method not only enhances system reliability but also reduces maintenance costs.
In practical applications,the IO-Link interface can also be integrated with other automation devices to achieve more complex automation control functions.For example,in robotic applications,the MPA-215THTP0 can be seamlessly integrated with the robot control system via the IO-Link interface to achieve precise positioning and synchronized operations.
2.How to set up the analog output of the MPA-215THTP0?
The MPA-215THTP0 supports two types of analog output:0-10V voltage output and 4-20mA current output.Users can choose the appropriate output method based on their application needs and calibrate it using the sensor's teach-in function.
When setting up the analog output,ensure the sensor's measurement range matches the application requirements.For example,in applications requiring high-precision measurement,the measurement range can be adjusted using the teach-in function to achieve optimal output accuracy.
Additionally,users should select the appropriate output type based on the actual load.For example,in long-distance transmission or high-load applications,current output(4-20mA)may be more advantageous because it is less affected by line resistance.
3.How to ensure the measurement accuracy of the MPA-215THTP0?
The MPA-215THTP0 offers high-precision measurement capabilities with a repeatability of 0.06 mm and a resolution of 0.03%FSR.To ensure measurement accuracy,pay attention to the following during installation and commissioning
Installation Environment:Ensure the sensor is installed in a vibration-free environment free of strong magnetic interference.
Calibration:Calibrate the sensor using the teach-in function to ensure the measurement range matches the actual application requirements.
Regular Maintenance:Regularly inspect the mechanical and electrical connections of the sensor and clean dust and impurities.
4.What are the advantages of the IO-Link interface of the MPA-215THTP0?
The IO-Link interface is one of the key features of the MPA-215THTP0,providing an efficient and flexible solution for communication between the sensor and automation systems.Compared to traditional communication methods,the IO-Link interface offers the following advantages:
Bidirectional Communication:Supports bidirectional data transmission between the sensor and the master station,enabling device parameterization and real-time monitoring.
Smart Diagnostics:Through the IO-Link interface,users can monitor the sensor's status in real-time and quickly diagnose faults.
Strong Compatibility:The IO-Link interface supports a variety of device types and can be seamlessly integrated with existing automation systems.
5.Is the analog output of the MPA-215THTP0 stable?
The analog output of the MPA-215THTP0 is highly stable.Its design takes into account various interference factors in industrial environments.The sensor is equipped with short-circuit protection and polarity reversal protection to effectively prevent electrical faults from affecting the device.
Additionally,the MPA-215THTP0 offers high-precision analog output with a repeatability of 0.06 mm,which meets the requirements of most industrial applications.To ensure stable analog output,users are advised to follow the installation and commissioning instructions,ensure correct electrical connections,and avoid line interference.
6.How to choose the right IO-Link master station to work with the MPA-215THTP0?
Choosing the right IO-Link master station is crucial for realizing the full potential of the MPA-215THTP0.When selecting a master station,consider the following:
Protocol Compatibility:Ensure the master station supports the IO-Link V1.0.1 protocol for seamless communication with the sensor.
Communication Distance:Choose a master station that meets the required communication distance to avoid signal attenuation.
Functional Requirements:Select a master station that supports multiple functions such as device parameterization,real-time monitoring,and smart diagnostics based on your application needs.
7.How to calibrate the measurement range of the MPA-215THTP0 using the teach-in function?
The MPA-215THTP0 offers a convenient teach-in function that allows users to quickly calibrate the measurement range via the operating panel.This function enables users to set the sensor's measurement range according to actual application needs,ensuring that the sensor output matches the actual stroke of the cylinder.During the teach-in process,move the cylinder's piston rod to the starting and ending points of the stroke,then record these positions using the operating panel.The sensor will automatically calculate and set the measurement range.
The teach-in function not only improves measurement accuracy but also simplifies the commissioning process.Users can choose between voltage output,current output,or parameterization via IO-Link.The teach-in function also supports dynamic teach-in mode,allowing users to record measurement values while the cylinder is in motion,further enhancing the flexibility and accuracy of calibration.
In practical applications,the teach-in function is critical.For example,in high-precision positioning systems,the calibrated sensor can provide more accurate measurement data,thereby improving the overall system performance.Therefore,users should fully utilize the teach-in function during installation and commissioning to ensure that the sensor's measurement range matches the actual application requirements.
8.How to choose the right IO-Link master station to meet functional requirements?
Choosing the right IO-Link master station is essential for realizing the full functionality of the MPA-215THTP0.The master station should support the IO-Link V1.0.1 protocol to ensure seamless communication with the sensor.Additionally,the master station should have sufficient communication ports to meet system expansion needs.
In terms of functional requirements,users should select a master station that supports device parameterization,real-time monitoring,and smart diagnostics based on their specific applications.For example,in complex automation systems,the master station can remotely parameterize the sensor via the IO-Link protocol,allowing users to quickly adjust the sensor's measurement range and output type according to different operating conditions.
Furthermore,the IO-Link master station should have smart diagnostic capabilities to monitor the sensor's status in real-time and quickly locate issues when faults occur.These features can significantly enhance system reliability and maintenance efficiency.
9.How to achieve real-time monitoring of the MPA-215THTP0 via IO-Link?
The MPA-215THTP0 supports real-time monitoring via the IO-Link protocol.Users can connect the sensor to an IO-Link master station to transmit measurement data in real-time to the automation control system.This real-time data transmission helps users monitor the position of the cylinder in real-time,enabling precise process control.
In practical applications,real-time monitoring is crucial for improving production efficiency and product quality.For example,in robotic assembly lines,real-time monitoring of the sensor's measurement data ensures precise positioning during the assembly process,preventing assembly errors caused by position deviations.
Additionally,real-time monitoring can be combined with smart diagnostic functions to help users identify potential issues promptly.For example,when the sensor detects abnormal data,the system can immediately trigger an alarm to alert operators to inspect and maintain the device.
10.How to use the smart diagnostic function of IO-Link to enhance the reliability of the MPA-215THTP0?
The IO-Link protocol provides powerful smart diagnostic capabilities for the MPA-215THTP0,significantly enhancing system reliability and maintenance efficiency.Through the IO-Link master station,users can monitor the sensor's status in real-time,including measurement values,communication status,and device health.
Smart diagnostics help users quickly locate issues.For example,when the sensor experiences communication failures,the master station can immediately detect the problem and prompt users to inspect the device.Additionally,smart diagnostics can monitor the sensor's electrical connections to ensure safe operation.
In practical applications,smart diagnostics play a vital role in reducing maintenance costs and improving system availability.By monitoring in real-time and diagnosing faults,users can identify potential issues in advance and perform preventive maintenance,thereby minimizing downtime.
