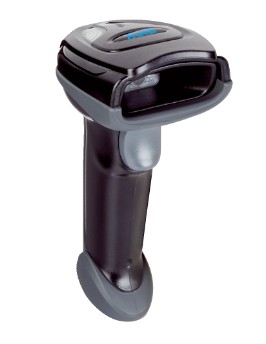

The SICK IDM240-411S is a high-performance mobile handheld sick lidar scanner designed specifically for industrial and logistics applications. It can read one-dimensional, two-dimensional, and stacked barcodes, such as PDF417. This scanner can use 2d lidar sensor .The device features a rugged enclosure and flexible operation, making it suitable for harsh environments. The RS232 Kit includes a charging base station, scanner, power adapter, connecting cable, and rechargeable battery, ideal for applications requiring wired connections. This sick lidar scanner is a safety scanners which can ensure the safety and efficiency of the job.
Product Specifications
Sensor Resolution: 1,280 px x 800 px.
Read Range: 30 mm to 400 mm.
Scanning Frequency: 60 Hz.
Barcode Resolution:
≥ 0.07 mm (for Code 39).
≥ 0.13 mm (for Data Matrix).
Supported Barcode Types:
1D: Code 39, Code 128, EAN/UPC, etc.
2D: Data Matrix, QR Code, MaxiCode, etc.
Stacked: PDF417.
Interface Type: RS232.
Power Supply: 5 V DC.
Current Consumption:
Operating (charging state, including base station): 750 mA.
Standby: 175 mA.
Enclosure Protection Rating: IP52.
Weight: 230 g (without cable).
Dimensions: 94 mm x 71 mm x 160 mm.
Impact Resistance: Can withstand 25 drops from a height of 1.8 meters onto a concrete surface.
Operating Temperature Range: -10°C to +50°C.
Storage Temperature Range: -40°C to +70°C.
Relative Humidity: 95% (non-condensing).
Functional Features
Multiple Barcode Support: Supports 1D and stacked barcodes to meet various application needs. This 2d lidar sensor can also use to scan the two-dimensional.
Wireless Functionality: Supports Bluetooth V4.0 with a wireless range of up to 100 meters in clear line-of-sight.
Read Confirmation: Equipped with 2 LEDs (for reading confirmation, charging status, and wireless connection status) and a switchable beeper.
High-Capacity Battery: Can perform up to 60,000 scans under maximum load.
Configuration Software: Supports device configuration using the IDM Setup Tool.
Durability: With an IP52 protection rating, the device is suitable for harsh environments.
Application Scenarios
The IDM240-411S is widely used in the following fields:
Logistics and Warehousing: For package sorting and goods management during receipt, sorting, and dispatch. This scanner can use 2d lidar sensor function which can meet with various needs.
Manufacturing: For reading barcodes of raw materials or finished products on production lines. This safety scanners can protect the scan safety and efficiency.
Retail: For quick barcode reading to improve checkout efficiency.
Healthcare: For pharmaceutical management and medical device tracking.
This sick lidar scanner is a safety scanners which can ensure the safety and efficiency of the job.
Usage and Maintenance
Installation and Connection: Connect to computers or other devices via the RS232 interface. Ensure the connecting cable meets the required length and specifications.
Operating Environment: It is recommended to use in environments without strong light interference to improve reading accuracy.
Maintenance Suggestions: Regularly clean the scanning window to avoid dust or dirt affecting the reading performance.
Common Questions and Answers
What barcode types does the IDM240-411S support?
The sick lidar scanner supports all common 1D, 2D, and stacked barcodes, such as Code 39, Data Matrix, QR Code, and PDF417.
What is the read range of the scanner?
The read range is from 30 mm to 400 mm.
Does the device support wireless communication?
Yes, the IDM240-411S supports Bluetooth V4.0 with a wireless range of up to 100 meters in clear line-of-sight.
What is the enclosure protection rating of the scanner?
The device has an IP52 protection rating, suitable for harsh environments.
How to ensure the scanner's reading accuracy?
Regularly clean the scanning window to avoid dust or dirt affecting the reading performance. Ensure barcodes are printed clearly and free of damage.
What is the impact resistance of the IDM240-411S?
The device can withstand 25 drops from a height of 1.8 meters onto a concrete surface.
Does the device support other interfaces?
In addition to the RS232 interface, it can be expanded to Ethernet, PROFINET, EtherCAT, etc., via external modules.
What is the operating temperature range of the IDM240-411S?
The operating temperature range is from -10°C to +50°C.
What is the battery performance of the scanner?
Under maximum load, the device can perform up to 60,000 scans.
Does the scanner support batch scanning?
Yes, the device supports batch mode scanning with a code buffer capable of storing up to 5,000 barcodes (EAN).
