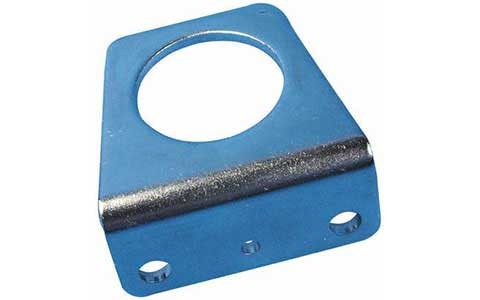

The SMC LZB-LR3 is a rod-side foot designed specifically for the SMC LZB3 series SMC electric actuators, used to secure the motor or rod side of the actuator. As one of the important SMC pneumatics, it provides a stable mechanical connection to ensure reliability and stability during operation. It has a high quality just like all the SMC products.
Product Features
Application Scope: The LZB-LR3 is designed for the LZB3 series SMC electric actuators, used for fixing the motor or rod side. It has to work with other SMC pneumatics.
Installation Method: Equipped with side nuts and mounting straps, it securely installs the SMC electric actuators in the desired position.
Compatibility: Compatible with magnetic switches such as D-M9PL and D-M9NL, which are all SMC products.
Technical Specifications
Maximum Thrust: Over 196N.
Maximum Speed: 200 mm/s.
Stroke Range: Available in 25 mm, 40 mm, 50 mm, 100 mm, and 200 mm.
Screw Specifications: Sliding screw with diameters of φ8 or φ12, and lead options of 2 mm, 6 mm, and 12 mm.
Usage Instructions
1.Installation Steps:
Attach the LZB-LR3 to the motor or rod side of SMC electric actuators, ensuring that the nuts and mounting straps are securely installed.
Tighten the nuts using appropriate tools, avoiding excessive force to prevent thread damage. You can use SMC products in the process to make sure that the rod-side foot be installed successfully.
Check the installation for firmness to ensure there is no looseness.
2.Precautions:
Avoid exposing cables to high temperatures, humidity, or chemical substances during installation. Almost all the SMC pneumatics cannot be exposed to harmful objects.
Regularly inspect the nuts for tightness and retighten if necessary.
Frequently Asked Questions (FAQ):
1.Is customization available for LZB-LR3?
Like other SMC pneumatics, the LZB-LR3 is a standard component and typically does not support customization. For special requirements, contact SMC’s technical support.
2.Are there restrictions on the installation direction for it?
The installation direction depends on the design of the SMC electric actuators and the application scenario. Follow the device’s technical manual for proper installation. And using SMC products to help your installation will better.
3.What is the maintenance cycle for it?
It is recommended to perform maintenance checks quarterly, including inspecting the nuts for tightness and cleaning the surface.
4.Is LZB-LR3 compatible with other brands of equipment?
The LZB-LR3 is designed specifically for SMC’s LZB3 series electric actuators, and compatibility with other brands cannot be guaranteed.
5.What is the thread specification of it?
The thread specification of LZB-LR3 is M20×1.5.
6.How to handle a faulty it?
If the nut becomes loose or damaged, stop the machine for inspection and replacement. If uncertain about the issue, contact SMC’s technical support.
7.Does it support long-distance wiring?
LZB-LR3 is primarily used for mechanical fixing and does not involve wiring. For long-distance wiring, use dedicated cables.
8.What is the protection rating of it?
The protection rating of LZB-LR3 is IP67, making it suitable for harsh environments.
9.Does LZB-LR3 support use with magnetic switches?
LZB-LR3 is compatible with D-M9 series magnetic switches for position detection and automated control. Ensure the magnetic switch is correctly positioned during installation for optimal detection performance.
10.What is the weight of LZB-LR3?
The weight of LZB-LR3 is 64 grams. This lightweight design makes it suitable for various installation scenarios without adding significant load to the equipment.
