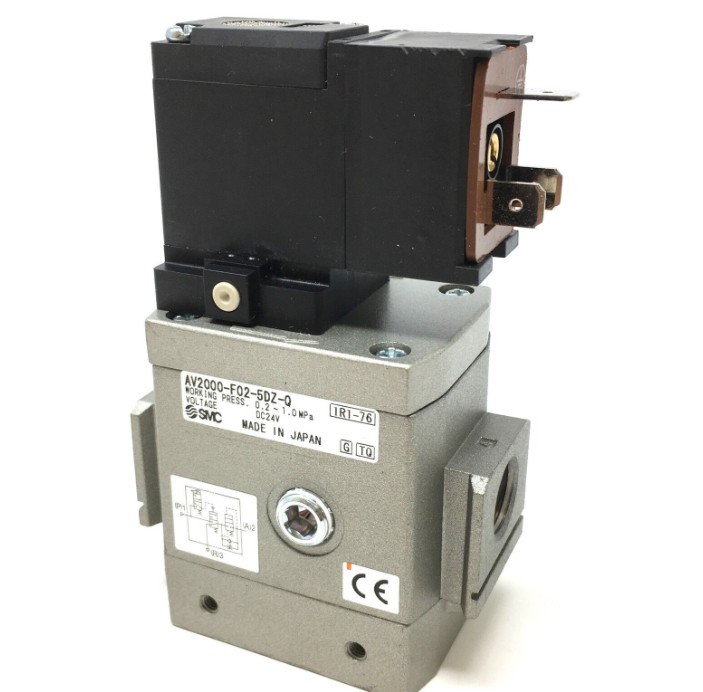

The SMC flow control valve AV2000-F02-5DZ-Q is a reliable pneumatic control valve designed for precise regulation of airflow. This air operated valve offers high performance and durability, making it ideal for various industrial applications. This air operated valve provides low-speed air supply and rapid exhaust, effectively protecting the pneumatic system from damage caused by sudden pressure changes. It features high flow capacity, energy-saving design, and an integrated overvoltage protection circuit, making it ideal for applications requiring precise control.
Product Specifications
Main Body Size: 20mm, compatible with 1/4-inch standard dimensions.
Thread Type: G 1/4.
Pipe Connection Diameter: 1/4 inch.
Coil Rated Voltage: DC24V.
Wiring Method: D-type DIN socket with plug.
Flow Characteristics: The C-value is 9.2 dm³/(s·bar), which is 2.3 times higher than the previous generation, significantly enhancing flow performance.
Ambient Temperature: 0°C to +60°C.
Maximum Operating Pressure: 1.0 MPa.
Pressure Resistance: 1.5 MPa.
Power Consumption: 0.35W.
Manual Operation: Non-locking push-button type.
CE Standard Compliance: Meets CE standards.
Product Features
Precision Control: The low-speed air supply feature allows the initial pressure in the pneumatic system to rise gradually. Rapid exhaust can be performed when the air supply is cut off, effectively protecting the equipment.
Energy Efficiency: The main valve switches with zero airflow, further reducing energy consumption.
Enhanced Flow Characteristics: Compared to the previous generation, the flow characteristics have been improved by 2.3 times, with a C-value of 9.2 dm³/(s·bar). This allows for faster response to system demands.
Safety Features: Equipped with an LED indicator and overvoltage protection circuit to enhance operational safety.
Easy Installation: Designed with G 1/4 threads and a 1/4-inch pipe connection diameter, specifically for the AV2000 series.
Manual Operation: Non-locking push-button operation allows for manual control in emergency situations.
Applications
The AV2000-F02-5DZ-Q is widely used in automated machinery, pneumatic control systems, and medical equipment, especially in applications requiring precise control of startup speed. For example:
Automated Production Lines: Controls the start and stop of cylinders, reducing shock during equipment startup.
Food Processing Equipment: Minimizes pressure fluctuations in pneumatic control systems that require frequent start-stop cycles.
Packaging Machinery: Controls the speed of conveyor belts, improving production efficiency and stability.
Installation and Wiring
Installation Environment: Install in a well-ventilated, dust-free, and non-corrosive gas environment, avoiding high temperatures, high humidity, or strong electromagnetic interference.
Installation Orientation: Ensure the valve is installed vertically for proper heat dissipation.
Power Connection: Connect the power supply according to the required specifications and ensure the correct phase sequence.
Grounding Protection: Ensure proper grounding of the device in accordance with national and local electrical safety standards.
Maintenance and Inspection
Regular Appearance Check: Inspect the valve for any signs of damage or abnormalities.
Clean the Heat Sink: Regularly remove dust from the heat sink to ensure the cooling system operates normally.
Check Electrical Connections: Ensure that power and signal wires are securely connected and have good contact.
Functional Testing: Conduct functional and leakage tests after installation and maintenance to ensure the device is properly installed.
Precautions
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments.
Safe Operation: Avoid contact with live parts during operation to ensure the safety of personnel.
Maintenance Space: Ensure sufficient space is available for maintenance and inspection.
Frequently Asked Questions and Answers
What is the maximum flow rate of the SMC flow control valve AV2000-F02-5DZ-Q?
The valve has a flow characteristic of C-value 9.2 dm³/(s·bar), which is 2.3 times higher than the previous generation. This high flow rate allows the valve to respond quickly to system demands, reducing startup time and improving overall system efficiency.
What is the power consumption of the SMC flow control valve?
The valve has a power consumption of only 0.35W. This low-energy design not only meets modern industrial energy-saving requirements but also makes the valve more cost-effective for long-term operation.
What is the maximum operating pressure of the SMC flow control valve?
The maximum operating pressure is 1.0 MPa, with a pressure resistance of 1.5 MPa. This means the valve can operate stably at pressures up to 1.0 MPa while providing some overpressure protection.
What is the ambient temperature range for pneumatic control valves?
The ambient temperature range is from 0°C to +60°C. This wide temperature range allows the valve to be used in various industrial environments, including both low and high-temperature conditions.
How does the manual operation function work in the air operated valve?
The valve features a non-locking push-button manual operation, which allows users to manually control the valve's opening and closing in emergency situations, ensuring system flexibility and safety.
What should be considered during the installation of pneumatic control valves?
Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation. Ensure the valve is installed vertically and properly grounded. When connecting the power supply, make sure the power cable meets the required specifications and the correct phase sequence is observed.
What are the maintenance recommendations for pneumatic control valves?
Regularly inspect the valve for any signs of damage or abnormalities. Clean the dust from the heat sink to ensure the cooling system operates normally. Check that power and signal wires are securely connected and have good contact.
What are the applications of SMC flow control valves in industrial settings?
These valves are widely used in automated machinery, pneumatic control systems, and medical equipment, especially in applications requiring precise control of startup speed.
What are the advantages of the enhanced flow characteristics of the SMC flow control valve AV2000-F02-5DZ-Q?
The flow characteristics are 2.3 times higher than the previous generation, with a C-value of 9.2 dm³/(s·bar). This allows the valve to respond quickly to system demands, thereby improving overall system efficiency.
Does the air operated valve comply with CE standards?
Yes, the valve complies with CE standards. This means that the product meets the European Community's requirements for product safety and environmental protection during its design and manufacturing process.
