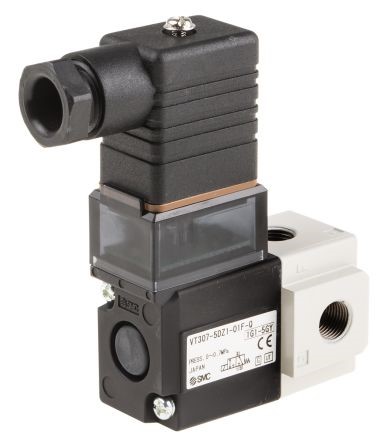

The SMC VT307-5D1-01F-Q is a direct-acting 3 port solenoid valve, part of the VT307 series. This series of solenoid valves is renowned for its low power consumption, multifunctional integration, low-concentration ozone countermeasures, and interchangeable installation dimensions. These features make it an efficient and reliable solution for industrial automation and fluid control systems. It can also be purchased from solenoid valve distributors.
The VT307-5D1-01F-Q model comes with the following key specifications and functions:
Valve Type: Direct pipe connection
Pressure Specification: Standard type 0.7 MPa
Rated Voltage: DC 24V
Wiring Method: DIN-type plug with socket
Pipe Connection Size: 1/8 6A
Bracket: With bracket
LED and Overvoltage Protection Circuit: With indicator light and overvoltage protection circuit
Product Specifications
Maximum Operating Temperature: 50°C
Minimum Operating Temperature: -10°C
Power Consumption: 1.8W (low power consumption type)
Maximum Operating Frequency: 10 Hz
Response Time: 20 ms
Ambient and Fluid Temperature: -10 to 50°C
Product Features
Low Power Consumption Design: The VT307-5D1-01F-Q 3 port solenoid valve achieves energy savings with a power consumption as low as 1.8W, while maintaining high-performance operation.
Multifunctional Integration: This solenoid valve integrates multiple functions, including various pipe connection options, providing users with flexible installation and usage choices.
Low-Concentration Ozone Countermeasures: The main valve is made of HNBR rubber, effectively addressing low-concentration ozone environments and enhancing the product's durability and adaptability.
Interchangeable Installation Dimensions: The VT307-5D1-01F-Q 3 port solenoid valve is interchangeable with the original product's installation dimensions, making it convenient for users to upgrade and replace.
Manifold Model: The VV307 manifold model is available, saving space while increasing system integration and maintenance efficiency.
Application Scenarios
Industrial Automation: Suitable for various industrial automation equipment, especially in situations where precise fluid direction control is required.
Fluid Control Systems: In fluid control systems, this solenoid valve can be used to control the direction of fluid in hydraulic or pneumatic systems, achieving precise control.
Usage Instructions
Also consult the installation and usage instructions at the solenoid valve distributors.
Installation and Wiring
Installation Environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation. Avoid installing the valve in high-temperature, high-humidity, or strong electromagnetic interference environments.
Wiring Requirements: Follow the wiring diagram in the product manual strictly to ensure the correct connection of power, signal, and motor wires. Use appropriately sized cables for power lines and pay attention to the correct phase sequence.
Grounding Protection: Ensure that the equipment is properly grounded, in compliance with national and local electrical safety standards.
Parameter Settings
Basic Parameter Settings: Include motor parameters, control methods, and frequency ranges. Set these parameters according to the actual application requirements. For example, for applications requiring high-precision control, choose the flux vector control mode.
Advanced Function Configuration: Such as PID control and multi-speed control, configure these functions according to specific application scenarios to achieve more complex control functions.
Maintenance and Inspection
Regular Inspection: Check the appearance of the valve for any damage, dust on the heat sink, or abnormal operation of the fan. Regularly clean the dust from the heat sink and fan to ensure the smooth operation of the cooling system.
Parameter Verification: Regularly verify the parameter settings of the valve to ensure they remain consistent with the actual application requirements.
Fault Diagnosis: When a fault occurs, promptly check the fault code and follow the troubleshooting guide in the manual to identify and resolve the issue.
Precautions
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance and lifespan issues.
Power Requirements: Ensure the power voltage is stable to avoid damage to the valve from voltage fluctuations. After the device is powered off, wait for a certain period before re-powering to prevent damage to the equipment.
Safe Operation: Avoid contact with live parts during operation to ensure the safety of the operators. When performing maintenance and inspection, the power must be disconnected, and the capacitor must be fully discharged.
Frequently Asked Questions (FAQs)
How to Perform Motor Self-Tuning?
Importance of Motor Self-Tuning: Motor self-tuning is a crucial step to ensure the compatibility between the inverter and the motor, enhancing control accuracy and system stability. To start self-tuning, you need to set the motor's nameplate parameters, including motor power, rated voltage, and rated current.
Precautions During Self-Tuning: During self-tuning, the inverter injects current into the motor. Therefore, ensure the motor is correctly connected to the inverter and that the inverter is in a ready state. Also, ensure the motor is stationary to avoid damage during the self-tuning process.
Effect After Self-Tuning: Once self-tuning is complete, the inverter automatically adjusts the control parameters based on the actual motor parameters to achieve optimal performance. This helps improve the system's response speed and control accuracy, meeting the requirements of high-precision control applications.
How to Configure the Communication Interface of the FR-D740-022SC-EC Inverter?
Communication Interface Type: The FR-D740-022SC-EC inverter is equipped with a Modbus-RTU protocol and supports an RS485 communication interface. Users can choose the appropriate communication interface based on their actual needs.
Communication Line Connection: When configuring the communication interface, ensure the communication lines are connected correctly. Use shielded cables for connection and ensure the shielding layer is properly grounded to reduce electromagnetic interference.
Communication Parameter Settings: Set the inverter's communication address, baud rate, data bits, and stop bits according to the communication protocol requirements. Ensure the communication parameters are consistent with the upper-level computer to achieve a reliable communication connection.
How to Choose the Power Range of the Inverter?
Select Based on Load Requirements: When choosing the power range of the inverter, determine it based on the actual load conditions of the motor. If the load is light, choose an inverter that matches the motor's rated power; if the load is heavy or there is a significant starting torque requirement, choose an inverter with a slightly higher power.
Consider Safety Factor: When selecting the power range, also consider the system's safety factor. It is generally recommended to choose an inverter with a power slightly higher than the motor's rated power to handle load fluctuations and unexpected situations.
Overload Capability: The FR-D740-022SC-EC inverter has a certain overload capacity and can withstand loads exceeding the rated power for a short period. However, long-term overload can affect the inverter's lifespan and performance, so it is advisable to avoid long-term overload operation when selecting the power range.
What is the Cooling Method of the FR-D740-022SC-EC Inverter?
Cooling Method: The FR-D740-022SC-EC inverter uses forced air cooling, with an internal cooling fan for heat dissipation.
Installation Requirements: When installing the inverter, ensure there is enough space around it for air circulation. Avoid installing the inverter in a sealed or poorly ventilated environment to prevent heat dissipation issues.
Maintenance and Care: Regularly clean the dust from the fan and heat sink to effectively prevent equipment overheating due to poor heat dissipation. Also, check the fan's operation to ensure it is working properly.
How to Avoid Electromagnetic Interference in the FR-D740-022SC-EC Inverter?
Built-in Filter: The inverter is equipped with an EMC filter, which meets relevant electromagnetic compatibility standards and can effectively suppress electromagnetic interference.
Wiring Precautions: When wiring, avoid placing signal lines close to power lines to reduce electromagnetic interference. Use shielded cables for signal line connections and ensure the shielding layer is properly grounded.
Grounding Measures: Proper grounding is an essential means of reducing electromagnetic interference. Ensure the equipment is properly grounded and complies with national and local electrical safety standards.
What Protective Functions Does the FR-D740-022SC-EC Inverter Have?
Overload Protection: When the motor load exceeds the rated value, the inverter automatically reduces the frequency or stops running to protect the motor and inverter.
Overheat Protection: The inverter is equipped with a temperature sensor that automatically shuts down the inverter when the temperature exceeds the set value, preventing damage from overheating.
Overvoltage and Undervoltage Protection: The inverter automatically shuts down when the power voltage is too high or too low to protect the equipment. Additionally, it features short-circuit and phase-loss protection functions to ensure the safe operation of the system.
How to Perform Regular Maintenance on the Inverter?
Appearance Inspection: Regularly check the appearance of the inverter for any damage or abnormalities, such as cracks in the housing or loose screws.
Cooling System Maintenance: Clean the dust from the fan and heat sink to ensure the normal operation of the cooling system. Check the fan's operation and replace it if any abnormalities are found.
Electrical Connection Inspection: Check the connections of the power and signal lines to ensure they are secure and make good contact. Also, check the motor's operating condition to promptly identify and address any issues.
What Precautions Should Be Taken When Installing the Inverter?
Installation Location: Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation. Avoid installing the inverter in high-temperature, high-humidity, or strong electromagnetic interference environments.
Installation Method: Ensure the inverter is installed vertically to facilitate heat dissipation. Use appropriate fixing methods during installation to prevent vibration from affecting the equipment.
Power Connection: When connecting the power, ensure the power cable specifications meet the requirements and pay attention to the correct phase sequence. Also, ensure the equipment is properly grounded.
How to Choose the Control Mode of the FR-D740-022SC-EC Inverter?
Choose Based on Application Requirements: For applications requiring high-precision speed control, choose the sensorless vector control mode; for general constant-speed control applications, choose the V/F control mode.
Control Mode Features: The sensorless vector control mode can achieve high-precision speed and torque control, suitable for applications with high control accuracy requirements. The V/F control mode is simple and easy to use, suitable for general constant-speed control.
Parameter Settings: After selecting the control mode, set the parameters according to the specific application requirements to achieve the best control effect.
How to Set the Frequency Setting Channel of the Inverter?
Frequency Setting Method: The frequency can be set through the inverter panel, external analog signals, or digital signals. Users can choose the appropriate frequency setting method based on their actual application requirements.
Signal Source Requirements: When setting the frequency setting channel, ensure the stability and accuracy of the signal source. For example, when using external analog signals for frequency setting, ensure the stability and interference resistance of the signal.
Parameter Configuration: Configure the parameters according to the selected frequency setting method. For example, for external analog signal setting, set the input range of the signal and the corresponding frequency range.
Through the detailed introduction and answers to common questions provided above, we hope to help you better understand and use the SMC VT307-5D1-01F-Q solenoid valve, ensuring its efficient and stable operation in various application scenarios.
