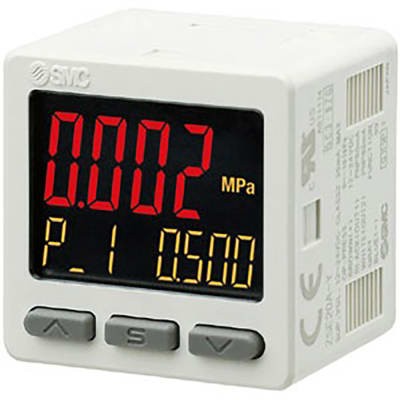

The ISE20-P-01, part of SMC Pneumatics' ISE20 series, is a high-precision digital pressure switch introduced by SMC Corporation, showcasing their expertise in high precision pressure regulators. This smc pneumatics product, specifically the ISE20-P-01 digital pressure switch, is designed for pressure monitoring and control in industrial automation, and is suitable for fluid media such as air, non-corrosive gases, and non-flammable gases. It is equipped with high-precision pressure measurement capabilities, ensuring the precision required for high precision pressure regulators. With multiple display functions and flexible output configurations, this smc pneumatics digital pressure switch is ideal for a wide range of applications that require precise pressure control.
Product Specifications
Pressure Range:
Rated pressure range for this smc pneumatics device: -0.100 MPa to 1.000 MPa
Display and setting range: -0.105 MPa to 1.050 MPa, ensuring high precision throughout the range.
Power Supply:
DC 12-24V ±10%, specifically designed to power this smc pneumatics digital pressure switch.
Consumption current: less than 25mA, optimizing energy usage.
Reverse polarity protection included, safeguarding against incorrect wiring.
Output Form:
NPN or PNP open-collector output, providing versatility for integration with various systems.
Maximum load current: 80mA, ensuring reliability and stability.
Accuracy:
Display accuracy: ±2% F.S. ±1 digit, a testament to its high-precision measurement capabilities.
Repeatability: ±0.2% F.S. ±1 digit, further highlighting its precision.
Display Function:
3-screen display (main screen and 2 sub-screens), showcasing pressure data with clarity.
Main screen: 4-digit 7-segment LCD, displaying critical information at a glance.
Sub-screens: 4-digit 11-segment LCD, providing additional details and settings.
Environmental Adaptability:
Operating temperature range: -5°C to 50°C, suitable for a wide range of industrial environments.
Storage temperature range: -10°C to 60°C, ensuring durability during periods of inactivity.
Humidity range: 35% to 85% RH (non-condensing), maintaining performance in various conditions.
Protection Level:
IP40, compliant with UL/CSA, CE, and RoHS standards, ensuring safety and regulatory compliance.
Product Features
High-Precision Measurement:
The ISE20-P-01 uses high-precision sensors to achieve a display accuracy of ±2% F.S. and a repeatability of ±0.2% F.S., demonstrating its capabilities as a high precision pressure regulator in complex industrial environments.
Multi-Function Display:
The 3-screen display design supports various pressure units (such as MPa, kPa, kgf/cm², bar, psi, etc.), making it versatile for different applications and ensuring precise monitoring and control.
Flexible Output Configuration:
It offers NPN or PNP open-collector output and supports multiple output modes, including hysteresis mode, upper/lower limit comparison mode, error output mode, and output disable mode, tailored to meet the needs of various application scenarios.
Digital Filtering Function:
The built-in digital filter can adjust the delay time (0ms to 5000ms), effectively preventing false actions caused by pressure fluctuations, enhancing its precision as a high precision pressure regulator.
User-Friendly Features:
It provides zeroing function, key lock function (with password setting), peak/valley display functions, making it convenient for users to perform on-site debugging and monitoring, enhancing its usability in industrial automation settings.
Applications
The ISE20-P-01 is widely used in the following fields, leveraging its high-precision measurement capabilities:
Industrial Automation: For pressure monitoring and control in pneumatic and hydraulic systems, utilizing smc pneumatics technology.
Machine Manufacturing: Monitoring the pressure of cylinders and pneumatic motors in machine tools and robots, ensuring precision and reliability.
Food Processing and Packaging: Ensuring that pneumatic equipment on production lines operates within a safe pressure range, leveraging its high-precision sensors.
Automotive Manufacturing: Detecting the pressure of pneumatic tools and equipment on production lines, maintaining quality and efficiency.
Installation and Wiring:
Ensure the smc pneumatics device is installed in a well-ventilated, dust-free, and non-corrosive gas environment, avoiding high temperatures, high humidity, or strong electromagnetic interference. Use cables of appropriate specifications for wiring, ensure stable power voltage, and pay attention to power polarity.
Parameter Settings:
Set the pressure range, output mode, and hysteresis value according to actual needs. Users can make settings through the panel, with support for unit switching functions, tailored to the requirements of high precision pressure regulators.
Maintenance and Inspection:
Regularly inspect the device's appearance to ensure there is no damage or loosening. Clean the sensor surface of dust to ensure measurement accuracy, maintaining its performance as a high precision pressure regulator.
Precautions
Environmental Conditions:
Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent affecting measurement accuracy, ensuring long-term performance.
Power Requirements:
Ensure stable power voltage to avoid damage to the device from voltage fluctuations, safeguarding its precision and reliability.
Safe Operation:
Avoid contact with live parts during device operation to ensure operator safety, maintaining compliance with safety standards.
Frequently Asked Questions (FAQ)
How to Calibrate the Pressure Display of ISE20-P-01?
Importance of Calibration:
Calibration is a key step to ensure accurate pressure display, particularly in applications requiring high precision pressure regulators. Since changes in environmental temperature and humidity can affect sensor accuracy, regular calibration ensures that measured values match actual pressure, maintaining the integrity of the smc pneumatics system.
Calibration Steps:
Use a standard source with a known pressure value for calibration. After connecting the standard source, select the "Calibration" function through the panel menu and enter the standard pressure value according to the prompts.
Verification After Calibration:
After calibration, verify using other known pressure values to ensure that the display values match the actual values.
How to Select the Output Mode of ISE20-P-01?
Types of Output Modes:
The ISE20-P-01 offers multiple output modes, including hysteresis mode, upper/lower limit comparison mode, error output mode, and output disable mode.
Selection Criteria:
Choose the appropriate mode based on application needs. For example, hysteresis mode is suitable for scenarios that require preventing frequent switching, while upper/lower limit comparison mode is suitable for scenarios that require triggering output within a specific pressure range.
Configuration Method:
Select "Output Mode" through the panel menu and set the relevant parameters according to the prompts.
How to Set the Digital Filter of ISE20-P-01?
Function of the Filter:
The digital filter reduces the impact of pressure fluctuations on measured values, preventing false actions.
Setting Method:
Select "Digital Filter" in the panel menu and set the delay time (0ms to 5000ms).
Precautions:
If pressure fluctuations are significant, it is recommended to set the delay time to 500ms or higher to ensure stable output.
How to Switch the Display Units of ISE20-P-01?
Supported Units:
The ISE20-P-01 supports multiple pressure units, including MPa, kPa, kgf/cm², bar, psi, etc.
Switching Method:
Select the "Unit Switching" function in the panel menu and choose the desired unit according to the prompts.
Precautions:
Ensure that the switched unit matches the actual application scenario to avoid misunderstandings.
How to Use the Peak and Valley Display Functions of ISE20-P-01?
Function Introduction:
The peak display function records the highest pressure value during measurement, while the valley display function records the lowest pressure value.
Activation Method:
Select the "Peak Display" or "Valley Display" function in the panel menu, and the system will automatically record the corresponding values.
Application Scenarios:
These functions can be used to analyze the range of pressure fluctuations, helping to optimize system design.
How to Use the Key Lock Function of ISE20-P-01?
Function Introduction:
The key lock function prevents accidental operations by locking all panel keys.
Activation Method:
Select the "Key Lock Function" in the panel menu and set a password. After locking, the device can only be unlocked by entering the password.
Precautions:
Ensure the password is recorded to avoid being unable to operate the device due to forgotten password.
How to Use the Zeroing Function of ISE20-P-01?
Function Introduction:
The zeroing function sets the current pressure value to zero and is commonly used for calibration or adjusting the measurement baseline.
Operation Method:
Select the "Zeroing Function" in the panel menu, and the system will set the current pressure value to zero.
Precautions:
Before using the zeroing function, ensure that the device is in a stable pressure state.
Installation Requirements:
Environmental Requirements:
Install in a well-ventilated, dust-free, and non-corrosive gas environment, avoiding high temperatures, high humidity, or strong electromagnetic interference.
Installation Method:
Install vertically, ensuring sufficient space around the device for heat dissipation.
Power Connection:
Ensure that the power cable specifications meet the requirements, pay attention to power polarity, and avoid device damage due to incorrect wiring.
Maintenance Cycle:
Regular Inspection:
It is recommended to perform an appearance inspection every quarter, clean the sensor surface of dust, and ensure measurement accuracy.
Calibration Cycle:
Calibrate every six months to ensure the accuracy of measured values.
Long-Term Maintenance:
Perform a comprehensive inspection annually, including electrical connections, output functions, and display accuracy.
How to Debug the Output Signal of ISE20-P-01?
Debugging Method:
Set the upper and lower limit values and hysteresis value of the output signal through the panel menu according to the actual application scenario.
Precautions:
During debugging, ensure that the device is in a stable pressure state to avoid false actions due to pressure fluctuations.
Verification Method:
Use known pressure values for testing to ensure that the output signal matches the set value.
