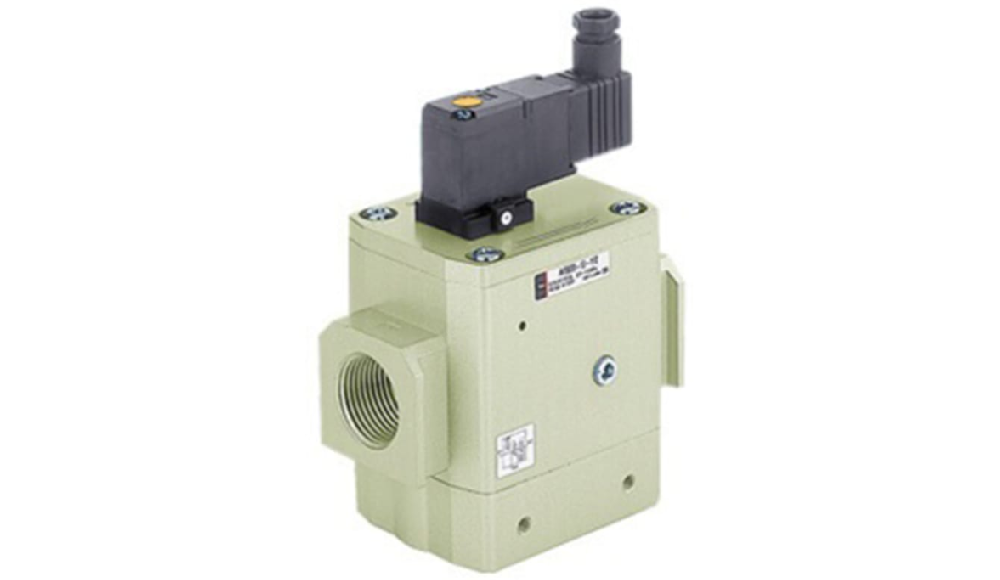

SMC pneumatics USA AV3000-F03-5YZ-Q speed control valve is an efficient air solenoid valve 24V designed for precise control in pneumatic systems.
This soft-start valve provides energy-saving features and smooth operation, ensuring optimal system protection and enhanced performance. The SMC pneumatics USA AV3000-F03-5YZ-Q speed control valve is widely used in automated machinery and pneumatic control systems, especially in scenarios where fine control of start-up speed is required to protect the system or enhance comfort.
Product Parameters
Main body size: 30mm, corresponding to the standard size of 3/8 inch.
Thread type: Rc, suitable for standard pneumatic system connections.
Tube connection size: 3/8 inch, specifically designed for the AV3000 series.
Wiring method: Y-type DIN-type socket, without plug, facilitating electrical connections.
Coil rated voltage: DC24V, suitable for various power environments.
Working pressure range: 0.2 → 1 MPa.
Pressure resistance: 1.5 MPa.
Ambient temperature: 0 → +60°C.
Product Features
Precise Control: The AV3000-F03-5YZ-Q model soft-start speed control valve can supply air at a low speed during start-up, gradually increasing the initial pressure in the pneumatic system, and perform rapid exhaust after cutting off the air supply, effectively protecting the pneumatic system from damage caused by sudden pressure changes.
Energy-saving Characteristics: The valve has a power consumption of only 0.35W, achieving efficient energy utilization. The air flow is zero when the main valve switches, further reducing energy consumption.
Improved Flow Characteristics: Compared to the previous generation, the flow characteristics of the AV3000-F03-5YZ-Q have been improved by up to 2.3 times, with a C value of 13.1 dm³/(s·bar), meaning the valve can respond more quickly to system demands.
Easy Installation: With a main body size of 30mm, Rc threads, and a 3/8-inch tube connection size, the AV3000-F03-5YZ-Q is specifically designed for the AV3000 series, facilitating compatibility and installation with existing systems.
Manual Operation: Non-locking push-button manual operation provides the possibility of manual control in emergency situations.
