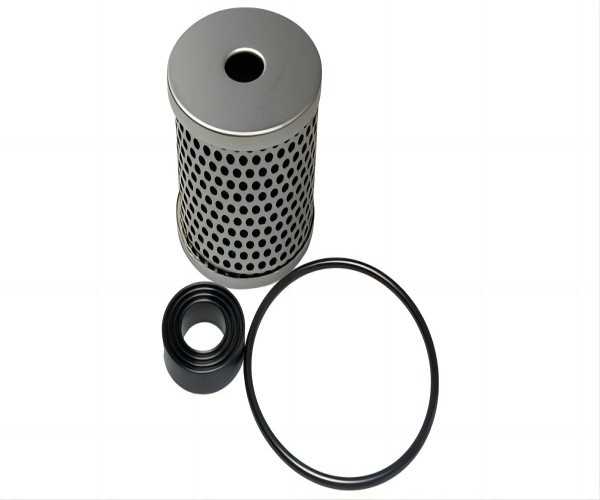

The AMH-EL150 is a smc micro mist separator filter element with a smc filter regulator produced by SMC Corporation, belonging to the AMH series.
This filter is primarily used to filter out micro mist and solid particles from compressed air, achieving a filtration precision as high as 0.01μm. It is widely applied in various industrial automation scenarios, such as precision measuring instruments and clean rooms, providing highly clean compressed air.
Product Specifications
Filtration Precision: 0.01μm
Applicable Fluid: Compressed Air
Operating Temperature: 5°C to 60°C
Maximum Working Pressure: 1.6 MPa
Maximum Drainage Volume: 400 cc/min
Pipe Connection Size: 1/4 inch
Product Features
High Filtration Precision: Effectively removes solid impurities and oil mist particles larger than 0.01μm.
Smc Filter Regulator: Integrated within the micro mist separator, this design reduces installation space and piping time.
Automatic Drainage: Equipped with a drainage valve for convenient regular discharge of condensate.
Heat Resistance: Suitable for operating temperatures ranging from 5°C to 60°C.
Application Scenarios
Precision Measuring Instruments: Provides highly clean compressed air to ensure the precise operation of equipment.
Clean Rooms: Acts as a smc filter regulator to ensure that the compressed air entering the clean room meets high cleanliness standards.
Industrial Automation: Suitable for various industrial equipment and systems that require highly clean compressed air.
Usage Instructions Installation and Wiring
Installation Environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation. Avoid installing in high-temperature, high-humidity, or strong electromagnetic interference environments.
Installation Method: Ensure the device is installed horizontally for easy drainage and maintenance.
Grounding Protection: Ensure the device is properly grounded, complying with national and local electrical safety standards.
Parameter Settings
Basic Parameter Settings: Includes filtration precision, operating temperature, maximum working pressure, etc., set according to actual application requirements.
Advanced Function Configuration: Such as automatic drainage and regular maintenance, configure according to specific application scenarios to achieve more complex control functions.
Maintenance and Inspection
Regular Inspection: Check the smc filter element's surface for red spots; if present, replace the smc filter element.
Drainage Check: Regularly inspect the drainage situation to ensure smooth drainage.
Fault Diagnosis: When the device malfunctions, promptly check the fault code and troubleshoot according to the troubleshooting guide in the manual.
Precautions
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent affecting its performance and lifespan.
Power Requirements: Ensure stable power voltage to avoid damage to the device caused by voltage fluctuations.
Safe Operation: Avoid contact with live parts during device operation to ensure the safety of operating personnel.
Frequently Asked Questions (FAQ)
How to Replace the AMH-EL150 smc filter element?
Importance of Replacement: Regularly replacing the smc filter element is a crucial step to ensure the normal operation of the device. Replacing the smc filter element can prevent increased pressure drop due to smc filter element blockage, thereby affecting the device's performance.
Replacement Steps: First, close the device's air inlet to ensure there is no pressure inside the device. Then, remove the fixing bolts of the smc filter element, take out the old smc filter element, install the new one, and re-fix the bolts.
Post-replacement Check: After replacing the smc filter element, restart the device, check for leaks, and ensure the device's operating parameters are normal.
What is the Service Life of the AMH-EL150 smc filter element?
Service Life: The service life of the smc filter element is typically one year or when the pressure drop reaches 0.1 MPa.
Influencing Factors: The service life of the smc filter element is affected by various factors, including the usage environment and the concentration of pollutants in the air. In highly polluted environments, the service life of the smc filter element may be shortened.
Regular Inspection: It is recommended to regularly check the pressure drop of the smc filter element. When the pressure drop reaches 0.1 MPa, the smc filter element should be replaced promptly.
What is the Filtration Precision of the AMH-EL150 smc filter element?
Filtration Precision: The filtration precision of the AMH-EL150 smc filter element is 0.01μm.
Filtration Effect: This smc filter element can effectively remove solid impurities and oil mist particles larger than 0.01μm, ensuring the high cleanliness of the compressed air.
Application Scenarios: Suitable for precision measuring instruments and clean rooms that require highly clean compressed air.
What are the Installation Precautions for the AMH-EL150 smc filter element?
Installation Environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation. Avoid installing in high-temperature, high-humidity, or strong electromagnetic interference environments.
Installation Method: Ensure the device is installed horizontally for easy drainage and maintenance.
Grounding Protection: Ensure the device is properly grounded, complying with national and local electrical safety standards.
What are the Maintenance Requirements for the AMH-EL150 smc filter element?
Regular Inspection: Regularly check the smc filter element's surface for red spots; if present, replace the smc filter element.
Drainage Check: Regularly inspect the drainage situation to ensure smooth drainage.
Fault Diagnosis: When the device malfunctions, promptly check the fault code and troubleshoot according to the troubleshooting guide in the manual.
What Fluid is the AMH-EL150 smc filter element Suitable For?
Applicable Fluid: The AMH-EL150 smc filter element is suitable for compressed air.
Other Fluids: If other fluids need to be used, it is recommended to consult SMC Corporation to ensure the compatibility and performance of the smc filter element.
Precautions: When using other fluids, ensure that the chemical properties of the fluid will not damage the smc filter element material.
What is the Maximum Working Pressure of the AMH-EL150 smc filter element?
Maximum Working Pressure: The maximum working pressure of the AMH-EL150 smc filter element is 1.6 MPa.
Safe Operation: Using it at a pressure exceeding 1.6 MPa may cause equipment damage or accidents.
Pressure Monitoring: It is recommended to install pressure monitoring equipment to ensure the device operates within a safe pressure range.
What is the Maximum Drainage Volume of the AMH-EL150 smc filter element?
Maximum Drainage Volume: The maximum drainage volume of the AMH-EL150 smc filter element is 400 cc/min.
Drainage System: Ensure the drainage system design meets the maximum drainage volume requirements to avoid drainage blockage.
Regular Maintenance: Regularly inspect the drainage system to ensure its normal operation.
What is the Pipe Connection Size of the AMH-EL150 smc filter element?
Pipe Connection Size: The pipe connection size of the AMH-EL150 smc filter element is 1/4 inch.
Connection Requirements: Ensure the pipe connection is secure to prevent leaks.
Sealing Material: Use appropriate sealing materials during connection to ensure the connection's airtightness.
How to Set the Automatic Drainage Function of the AMH-EL150 smc filter element?
Automatic Drainage: The AMH-EL150 smc filter element is equipped with a drainage valve for convenient regular discharge of condensate.
Setting Steps: Ensure the drainage valve is set correctly, regularly check the drainage situation, and ensure smooth drainage.
Maintenance and Care: Regularly clean the drainage valve to prevent blockage and ensure the normal operation of the automatic drainage function.
