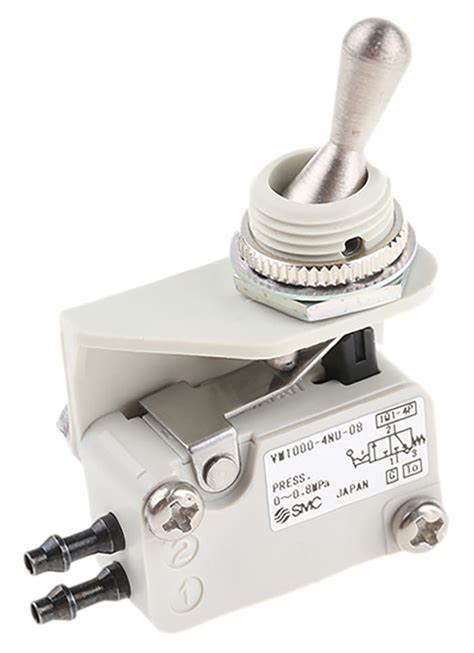

The VM1000-4NU-08 is a SMC 3 way valve with connectors from the micro mechanical valve series produced by SMC Corporation. This pneumatic valve doesn’t require pneumatic cylinder lubrication and features a compact structure, occupying minimal space, with built-in hose connectors and options for side or bottom piping. It is suitable for use with air or inert gases, operating within a pressure range of 0 to 0.8 MPa, and an environmental and fluid temperature range of -5 to 60°C (non-freezing conditions). The total travel (T.T.) of the valve is 2.5 mm (for the basic model only), and it weighs just 6 grams. The VM1000-4NU-08 is manually operated with a toggle lever and has 3 ports, suitable for side piping.
Product Specifications
Total Travel (T.T.): 2.5 mm (basic model only)
Operating Pressure: 0 to 0.8 MPa
Environmental and Fluid Temperature: -5 to 60°C (non-freezing conditions)
Weight: 6 grams (basic model)
Lubrication: No pneumatic cylinder lubrication required (ISO VG32 turbine oil can be used if necessary)
Piping Options: Side or bottom piping
Hose Size: 1 mm²
Number of Ports: 3 ports
Operation Method: Manual operation (toggle lever)
Product Features
Compact Design: Takes up minimal space, making it ideal for installation in equipment with limited space.
Built-in Hose Connectors: Facilitates easy connection, reducing installation time and cost.
Multiple Piping Options: Offers side and bottom piping options to meet different installation requirements.
No Lubrication Required: Reduces maintenance costs as it operates without pneumatic cylinder lubrication in most applications.
High Reliability: Designed to be robust and reliable, ensuring stable operation in harsh industrial environments.
Applications
The VM1000-4NU-08 is suitable for a variety of industrial automation scenarios, including but not limited to:
Automated Production Lines: Controls pneumatic actuators to achieve precise position control.
Packaging Equipment: Controls the movement of cylinders to facilitate the conveyance and forming of packaging materials.
Material Handling: In logistics systems, controls pneumatic valves to enable automatic material handling and sorting.
Laboratory Equipment: Controls gas flow in experimental equipment to ensure precision in experiments.
Installation and Usage Instructions
Installation and Wiring
Installation Environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation. Avoid installing the 3 way valve in high-temperature, high-humidity, or strong electromagnetic interference areas.
Installation Method: Ensure the 3 way valve is installed vertically to facilitate proper heat dissipation. Use appropriate fixing methods to prevent vibration from affecting the equipment.
Piping Connection: When connecting pipes, ensure they are clean and free of impurities. Use suitable sealing materials to prevent gas leaks.
Grounding Protection: Ensure the equipment is properly grounded, in compliance with national and local electrical safety standards.
Parameter Settings
Basic Parameter Settings: Include operating pressure and temperature range, set according to actual application requirements.
Advanced Function Configuration: Such as multi-speed control, configure according to specific application scenarios to achieve more complex control functions.
Maintenance and Inspection
Regular Inspection: Check the valve's appearance for damage, pipes for leaks, and fans for proper operation. Regularly clean dust from pipes and the 3 way valve body to ensure the heat dissipation system is unobstructed.
Parameter Verification: Regularly verify the pneumatic valve's parameter settings to ensure they align with actual application requirements.
Fault Diagnosis: When a fault occurs, promptly check the fault code and follow the troubleshooting guide in the manual to identify and resolve the issue.
Precautions
Environmental Conditions: Avoid using the pneumatic valve in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance and lifespan issues.
Power Requirements: Ensure stable operating pressure to avoid damage to the valve due to pressure fluctuations. After the equipment is disconnected from the air supply, wait for a certain period before re-supplying air to prevent damage.
Safe Operation: Avoid contact with live parts during operation to ensure the safety of operating personnel. When performing maintenance and inspection, disconnect the air supply and wait for the internal pressure to fully release.
Frequently Asked Questions (FAQ)
What is the total travel of the VM1000-4NU-08?
Total Travel: The total travel of the VM1000-4NU-08 is 2.5 mm (basic model only).
Application Scenario: In applications requiring precise control, such as position control of cylinders in automated production lines, the 2.5 mm total travel provides sufficient precision.
Maintenance Tip: Regularly check the valve's travel to ensure it is within the specified range for normal operation.
What is the operating pressure range of the VM1000-4NU-08?
Operating Pressure: The operating pressure range of the pneumatic valve is 0 to 0.8 MPa.
Pressure Regulation: During use, ensure the operating pressure is within the specified range to prevent valve damage due to excessive pressure.
Safety Measure: Install pressure sensors and safety valves in the system to prevent overpressure.
What is the environmental and fluid temperature range of the VM1000-4NU-08?
Temperature Range: The environmental and fluid temperature range of the VM1000-4NU-08 is -5 to 60°C (non-freezing conditions).
Temperature Impact: Extreme temperatures can affect the valve's performance. Therefore, avoid using the valve in environments outside the specified temperature range.
Protective Measure: In high or low-temperature environments, take appropriate protective measures, such as installing insulation covers or heaters.
What is the weight of the VM1000-4NU-08?
Weight: The weight of this SMC fitting is 6 grams (basic model).
Installation Advantage: The lightweight design makes the valve ideal for installation in equipment with limited space or strict weight requirements.
Transport and Storage: During transport and storage, ensure the valve is protected from damage and not crushed by heavy objects.
Does the VM1000-4NU-08 require lubrication?
Lubrication Requirement: The SMC fitting typically does not require pneumatic cylinder lubrication, but ISO VG32 turbine oil can be used if necessary.
Lubrication Advantage: No lubrication reduces maintenance costs and time, but appropriate lubrication in special applications can extend the valve's lifespan.
Maintenance Tip: Regularly check the valve's lubrication condition. If dryness or wear is detected, add lubricant promptly.
What are the piping options for the VM1000-4NU-08?
Piping Options: The SMC fitting offers side and bottom piping options.
Installation Flexibility: Multiple piping options allow the valve to adapt to different installation requirements, providing users with the flexibility to choose based on specific application scenarios.
Installation Tip: Ensure the piping connections are secure and leak-free. Use appropriate sealing materials to ensure the integrity of the connections.
What is the hose size specification for the VM1000-4NU-08?
Hose Size: The hose size specification for the VM1000-4NU-08 is 1 mm².
Hose Selection: Choosing the correct hose size ensures smooth airflow and minimizes pressure loss.
Connection Tip: When connecting hoses, ensure the length and diameter are appropriate to prevent airflow obstruction.
How many ports does the VM1000-4NU-08 have?
Number of Ports: The VM1000-4NU-08 has 3 ports.
Multi-port Advantage: Three ports can meet various pneumatic control requirements, such as simultaneously controlling multiple cylinders or actuators.
Connection Tip: When connecting multiple devices, ensure each port is correctly connected to avoid confusion.
What is the operation method of the VM1000-4NU-08?
Operation Method: The VM1000-4NU-08 is manually operated with a toggle lever.
Operational Convenience: The manual operation method is simple and easy to use, suitable for applications requiring frequent manual control.
Safety Measure: During operation, ensure the safety of the operating personnel and prevent misoperation that could damage the equipment or cause injury.
What are the maintenance recommendations for the VM1000-4NU-08?
Regular Inspection: Regularly inspect the valve's appearance for damage, check pipes for leaks, and ensure fans are operating properly. Regularly clean dust from pipes and the valve body to ensure the heat dissipation system is unobstructed.
Parameter Verification: Regularly verify the valve's parameter settings to ensure they align with actual application requirements.
Fault Diagnosis: When a fault occurs, promptly check the fault code and follow the troubleshooting guide in the manual to identify and resolve the issue.
