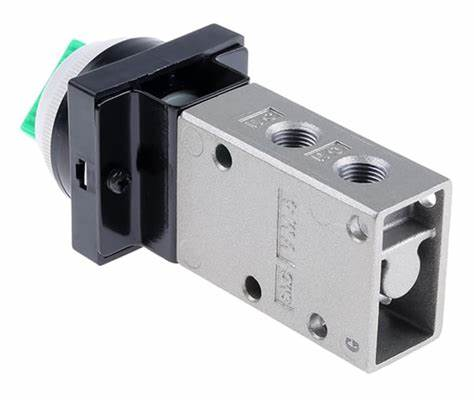

As an manual pneumatic valve from the VM400 series, the SMC VM430-01-34G features a green rotating selector. Widely used in various pneumatic control circuits and automation scenarios, such as machine tools or general industrial machinery, it offers both NC (Normally Closed) and NO (Normally Open) connection options. This advanced product has a maximum operating pressure of 1 MPa and a maximum flow rate of 338.77 nl/min, with Rc 1/8 threaded connections. It operates within a temperature range of -5°C to +60°C.
Product Specifications
Maximum Operating Pressure: 1 MPa
Maximum Flow Rate: 338.77 nl/min
Connection Type: Rc 1/8 threaded connection
Operating Temperature Range: -5°C to +60°C
Weight: 110 g (basic model)
Applicable Medium: Air/Inert gases
Lubrication: No lubrication required (ISO VG32 turbine oil can be used if necessary)
Product Features
Compact Design: Reduces installation space requirements, making it suitable for applications with limited space.
Multiple Installation Methods: Supports bracket mounting, bottom mounting, side mounting, and panel mounting.
Various Operating Modes: Offers roller lever, button, and rotating selector options to meet different user needs.
High Reliability: Compact design and robust construction make it suitable for various industrial environments.
Application Scenarios
Machine Tools: Used to control the start, stop, and directional switching of pneumatic systems, enhancing the automation level of equipment.
General Industrial Machinery: In pneumatic systems of industries such as packaging, printing, and textiles, it achieves precise airflow control.
Automated Production Lines: In automated production lines or automation scenarios, it controls actuators like cylinders and pneumatic motors, ensuring the stability and efficiency of the production process.
Usage Instructions
Installation and Wiring
Installation Environment: Choose a dust-free, non-corrosive gas, and low electromagnetic interference environment with good heat dissipation.
Installation Method: Ensure vertical installation for proper heat dissipation. Use appropriate fixing methods to avoid vibration effects.
Power Connection: When connecting the air source, ensure it is clean and pressure-stable. Install an air filter with a precision of less than 5 microns.
Parameter Settings
Basic Parameter Settings: Set air source pressure, flow rate, etc., according to actual application needs.
Advanced Function Configuration: For multi-speed control, PID control, automation control, etc., configure according to specific application scenarios to achieve more complex control functions.
Maintenance and Inspection
Regular Inspection: Check the manual pneumatic valve body for damage, aging seals, and loose connections. Regularly clean dust and impurities from the manual pneumatic valve body and pipes to ensure smooth airflow.
Parameter Calibration: Regularly calibrate the manual pneumatic valve body parameters to ensure they match the actual application requirements.
Fault Diagnosis: When a fault occurs, promptly check the fault code and follow the troubleshooting guide in the manual to identify and resolve issues.
Precautions
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance and lifespan issues.
Air Source Requirements: Ensure stable air source pressure to avoid damage to the valve body. Wait for a certain period before re-supplying air after the device is disconnected to prevent damage.
Safe Operation: Avoid contact with live parts during operation to ensure operator safety. When performing maintenance and inspection, disconnect the air source and wait for the system pressure to fully release.
Common Questions FAQ
How to connect the air source for the VM430-01-34G?
Importance of Air Source Connection: Proper air source connection is crucial for the normal operation of the valve body. Ensure the air source is clean and pressure-stable.
Connection Steps: First, install an air filter with a precision of less than 5 microns. Then, connect the air source pipe to the valve body's inlet, ensuring a secure and leak-free connection.
Post-Connection Check: After connection, perform a leak test to ensure no air leakage. Also, check if the air source pressure is within the valve body's rated operating pressure range.
What are the operating modes of the VM430-01-34G?
Types of Operating Modes: The VM430-01-34G offers multiple operating modes, including roller lever, button, and rotating selector. Users can choose the appropriate mode based on actual needs.
Choosing Operating Modes: For frequent switching operations, roller lever and button operations are more convenient; for precise control applications, the rotating selector is more suitable.
Changing Operating Modes: If you need to change the operating mode, refer to the replacement steps in the product manual and perform the corresponding operations.
How to choose the installation method for the VM430-01-34G?
Choosing Installation Method: This advanced product supports multiple installation methods, including bracket mounting, bottom mounting, side mounting, and panel mounting. Users can choose the appropriate method based on the installation space and usage environment.
Installation Precautions: During installation, ensure the valve body is vertically installed for proper heat dissipation. Also, ensure the installation location is dust-free, non-corrosive gas, and low electromagnetic interference.
Post-Installation Check: After installation, check if the valve body is securely fixed and the connections are reliable. Perform a leak test to ensure no air leakage.
What is the maintenance cycle for the VM430-01-34G?
Importance of Maintenance Cycle: Regular maintenance can extend the valve body's lifespan and ensure its long-term stable operation.
Recommended Maintenance Cycle: It is recommended to perform routine maintenance every three months, including checking the product 's appearance, cleaning dust and impurities, and inspecting seals.
Maintenance Content: Regularly clean dust and impurities from the valve body and pipes to ensure smooth airflow. Check if the seals are aging and replace them if necessary.
How to avoid electromagnetic interference for the VM430-01-34G?
Built-in Filter: The valve body is equipped with an EMC filter that meets relevant electromagnetic compatibility standards, effectively suppressing electromagnetic interference.
Wiring Precautions: When wiring, avoid placing signal lines close to air source pipes to reduce electromagnetic interference. Use shielded cables for signal line connections and ensure the shielding layer is properly grounded.
Grounding Measures: Good grounding is an important means of reducing electromagnetic interference. Ensure the equipment is properly grounded and complies with national and local electrical safety standards.
What are the protection functions of the VM430-01-34G?
Overpressure Protection: When the air source pressure exceeds the rated value, the valve body automatically closes to protect the equipment.
Undervoltage Protection: When the air source pressure is below the rated value, the valve body automatically closes to prevent equipment damage.
Overheat Protection: The valve body is equipped with a temperature sensor that automatically shuts down the equipment when the temperature exceeds the set value to prevent damage due to overheating.
How to perform regular maintenance for the VM430-01-34G?
Appearance Inspection: Regularly check the valve body's appearance for damage or abnormalities, such as cracks in the housing or loose screws.
Heat Dissipation System Maintenance: Clean dust and impurities from the valve body and pipes to ensure smooth airflow. Check if the seals are aging and replace them if necessary.
Electrical Connection Check: Check the air source pipe connections for security and ensure good contact. Also, check the valve body's operating status for any abnormalities and address them promptly.
What are the installation precautions for the VM430-01-34G?
Installation Location: Choose a well-ventilated, dust-free, non-corrosive gas environment for installation, avoiding high-temperature, high-humidity, or strong electromagnetic interference areas.
Installation Method: Ensure the valve body is vertically installed for proper heat dissipation. Use appropriate fixing methods to avoid vibration effects.
Air Source Connection: When connecting the air source, ensure it is clean and pressure-stable. Install an air filter with a precision of less than 5 microns.
How to choose the operating mode for the VM430-01-34G?
Choosing Based on Application Needs: For applications requiring high-precision control, choose the rotating selector operating mode; for general constant-speed control applications, choose the roller lever or button operating mode.
Operating Mode Features: The rotating selector operating mode achieves high-precision control, suitable for applications with high control accuracy requirements. The roller lever and button operating modes are simple and easy to use, suitable for general constant-speed control.
Parameter Settings: After choosing the operating mode, set the parameters according to specific application needs to achieve the best control effect.
What are the connection methods for the VM430-01-34G?
Types of Connection Methods: The advanced product uses Rc 1/8 threaded connections and supports multiple installation methods, including bracket mounting, bottom mounting, side mounting, and panel mounting.
Connection Steps: When connecting the air source pipe, ensure a secure and leak-free connection. Use appropriate seals to ensure the air tightness of the connection.
Post-Connection Check: After connection, perform a leak test to ensure no air leakage. Also, check if the air source pressure is within the valve body's rated operating pressure range.
