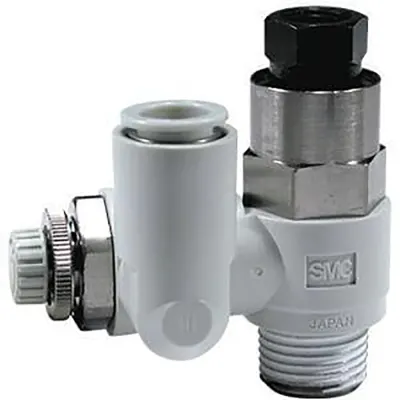

The SMC ASP630F-04-12S is an innovative pilot operated check valve combined with a speed control valve, designed to optimize air cylinder speed control and enhance system performance.
This advanced component, part of the ASP series, ensures precise flow rate adjustments and reliable intermediate stops for pneumatic systems. Its versatile and efficient design makes it a trusted choice in industrial applications, especially for those utilizing an SMC proportional valve for high-performance automation.
Product Specifications
Valve Size: 1/2 inch reference
Pipe Connection Sizes: Cylinder side connection R1/2, pilot port connection R1/4
Suitable Tube Outer Diameter: Φ12
Sealing Agent: Included
Locknut Options: Hexagonal locknut
Maximum Operating Pressure: 1 MPa
Minimum Operating Pressure: 0.1 MPa
Ambient and Fluid Temperature: -5°C to +60°C (non-freezing)
Suitable Tube Materials: Nylon, flexible nylon, polyurethane
Product Features
Pilot operated check valve Integration: Offers precise flow control by combining a check valve and speed control valve, perfect for air cylinder speed control in automation.
SMC proportional valve Compatibility: Works seamlessly with SMC proportional valve systems, providing enhanced control and performance.
Enhanced Durability: Electroless nickel plating provides superior corrosion resistance and extends the service life, ensuring longevity even in challenging industrial environments.
360° Universal Structure: Offers flexible installation in confined spaces while maintaining excellent operational performance, especially when paired with a pilot operated check valve for precise control.
Application Scenarios
The pilot operated check valve ASP630F-04-12S is ideal for:
Industrial Pneumatic Systems: Provides superior air cylinder speed control for automation systems, especially in systems using SMC proportional valve technology.
High Cleanliness Applications: Perfect for industries such as semiconductor, biopharmaceutical, and precision instrument manufacturing, where clean and accurate flow control is essential.
Flow Rate Adjustment: Ensures stable operation in systems where SMC proportional valve components are used, allowing for fine-tuned adjustments.
Usage Instructions
Installation and Fixing
Securely mount the valve to a stable base to avoid vibration or impact during operation.
Use 4 x 4.5 mm mounting holes for proper fixation.
Connecting Air Circuits
Ensure a leak-proof connection with the Rc 1/8 threads for a reliable, sealed setup in pilot operated check valve systems.
Operating Methods
Choose the appropriate method, such as a plunger or roller lever, to suit your specific air cylinder speed control needs.
Precautions
1. Safe Operation: Ensure only qualified personnel handle installation and maintenance, and always disconnect power before servicing.
2. Operating Limits: Avoid exceeding the valve’s specified pressure or temperature limits to ensure reliable performance, especially in pilot operated check valve applications.
3. No Modifications: Do not disassemble or modify the valve, as this may degrade performance, particularly affecting the SMC proportional valve system.
4. Environmental Protection: Avoid exposure to extreme conditions, such as high humidity or strong electromagnetic interference, which can affect air cylinder speed control.
Common Questions and Answers
1.What is the maximum operating pressure of the ASP630F-04-12S?
Answer: The maximum operating pressure is 1 MPa, ensuring reliability in systems utilizing a pilot operated check valve for precise control.
2.What is the suitable temperature range for this valve?
Answer: The operating temperature range is from -5°C to +60°C, making it ideal for various industrial environments with air cylinder speed control needs.
3.Does this valve support lubrication?
Answer: No, the ASP630F-04-12S operates without lubrication, ensuring maintenance-free performance in SMC proportional valve systems.
4.Can the ASP630F-04-12S be used for emergency shut-off?
Answer: No, it is not suitable for emergency shut-off applications. It is designed for precise control in pilot operated check valve systems, not for emergency functions.
5.What is the connection thread size for this valve?
Answer: The connection thread sizes are Rc, with cylinder side R1/2 and pilot port R1/4 for compatibility with SMC proportional valve systems.
6.What tube materials are compatible with this valve?
Answer: The valve is compatible with nylon, flexible nylon, and polyurethane tubes, which are ideal for air cylinder speed control applications.
7.How does the valve ensure precise flow rate control?
Answer: Its integrated design, combining a pilot operated check valve with a speed control valve, ensures accurate flow rate adjustments, especially when paired with SMC proportional valve technology.
8.Can the valve rotate during installation?
Answer: Yes, the valve features a 360° universal structure that allows flexible rotation for easy installation, particularly in pilot operated check valve systems.
9.What plating is used on the valve’s body?
Answer: The body is coated with electroless nickel plating, which provides superior corrosion resistance and durability for SMC proportional valve systems.
10.Is the ASP630F-04-12S suitable for biopharmaceutical systems?
Answer: Yes, its high cleanliness design makes it ideal for pilot operated check valve systems in biopharmaceutical applications, ensuring precision and reliability.
