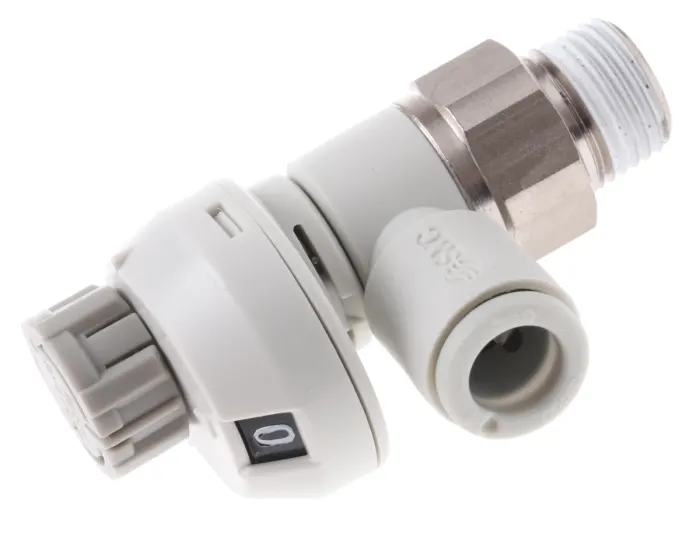

The SMC AS2201FS-01-06S is a high-performance pneumatic speed control valve, expertly engineered by one of the leading pneumatic valve manufacturers. Designed for precise regulation of compressed air flow, this valve is an essential component in various pneumatic systems, including vacuum generator pneumatic applications.
The built-in SMC flow meter functionality ensures accurate flow rate control, even at low speeds, making it perfect for use in automated production lines, robotic arms, and cylinders. With its durable construction and a color-coded scale for easy identification, the SMC AS2201FS-01-06S guarantees smooth and reliable pneumatic operation for a range of industries.
Product Specifications
Maximum Outlet Pressure: 1 MPa
Inlet Thread: 1/8 inch external thread
Outlet Thread: 1/8 inch external thread
Inlet Thread Size: 1/8 inch
Outlet Thread Size: 1/8 inch
Minimum Outlet Pressure: 0.1 MPa
Thread Standard: R
Thread Position: External
Ambient and Fluid Temperature: -5°C to +60°C (non-freezing)
Operating Pressure Range: 0.1 to 1.0 MPa
Burst Pressure: 1.5 MPa
Free Flow C Value: 1.3 dm³/(s·bar)
Control Flow C Value: 1.3 dm³/(s·bar)
Product Features
SMC flow meter Integration: Offers precise flow rate control, even at low speeds, essential for pneumatic valve manufacturers focused on accuracy in their systems.
Precise Control at Low Flow Rates: Ensures reliable speed control, even in vacuum generator pneumatic applications, where air flow regulation is critical.
Locking Function: Protects the needle from accidental wear, extending the valve's lifespan, particularly in industries where pneumatic valve manufacturers need durable components.
Large Handle for Easy Adjustment: Makes it easier to adjust the SMC flow meter settings with minimal effort, crucial in applications that require precise and repeatable flow rate settings.
Impact-Resistant Single-Push Lock: Ensures the vacuum generator pneumatic valve remains operational for longer, even in rugged environments.
Application Scenarios
The SMC flow meter AS2201FS-01-06S is ideal for:
Automated Production Lines: Provides precise control of air flow, ensuring smooth and efficient operations in industrial systems that rely on vacuum generator pneumatic setups.
Robotic Arms: Regulates actuator speed for smooth robotic movements in industries requiring pneumatic valve manufacturers to deliver high-precision components.
Pneumatic Cylinders: Offers stable control for pneumatic actuators, ensuring reliable performance in automation applications that rely on SMC flow meter technology.
Vacuum Generators: Used in vacuum generator pneumatic systems for effective performance and flow regulation, ensuring consistent results.
Usage Instructions
Installation
Ensure that the valve is securely mounted to avoid vibration or impact during operation.
Use 4 x 4.5 mm mounting holes for proper fixation.
Connecting Air Circuits
Connect the air circuits using the 1/8-inch external threads, ensuring a leak-proof connection for optimal performance in vacuum generator pneumatic applications.
Operation
Adjust the valve using the large handle, ensuring smooth and controlled operation with the SMC flow meter functionality for accurate flow regulation.
Precautions
1.Qualified Personnel: Only experienced personnel should assemble, operate, and maintain the valve.
2.Adhere to Specifications: Always operate the valve within its specified limits to prevent malfunction or damage.
3.Do Not Disassemble: Disassembling or modifying the valve may lead to damage or degraded performance, especially affecting the SMC flow meter functionality.
4.Environmental Conditions: Avoid operating the valve in high-temperature, high-humidity, or electromagnetic interference environments to ensure long-term reliability in vacuum generator pneumatic systems.
Common Questions and Answers
1.What is the maximum operating pressure of the AS2201FS-01-06S?
Answer: The maximum operating pressure is 1 MPa, ensuring reliable performance in various pneumatic valve manufacturers applications requiring high pressure.
2.What is the operating temperature range for this valve?
Answer: The operating temperature range is -5°C to +60°C, making it suitable for environments with variable conditions in vacuum generator pneumatic systems.
3.Does the AS2201FS-01-06S require lubrication?
Answer: No, this valve operates without lubrication, which is an advantage in pneumatic valve manufacturers systems where maintenance needs to be minimized.
4.What is the minimum operating pressure?
Answer: The minimum operating pressure is 0.1 MPa, providing excellent low-pressure control for SMC flow meter applications in sensitive environments.
5.What is the suitable tube outer diameter for the AS2201FS-01-06S?
Answer: The suitable tube outer diameter is Φ6mm, compatible with most systems that incorporate vacuum generator pneumatic components.
6.What are the installation methods?
Answer: The valve can be securely mounted using 4 x 4.5 mm mounting holes, ensuring stable setup for SMC flow meter usage in industrial systems.
7.What are the operating methods for the AS2201FS-01-06S?
Answer: The valve offers multiple operating methods, including plunger and roller lever, for versatile control in pneumatic valve manufacturers systems.
8.Can the AS2201FS-01-06S be used as an emergency shut-off valve?
Answer: No, the AS2201FS-01-06S should not be used as an emergency shut-off valve; it is designed for precision flow control in vacuum generator pneumatic applications.
9.What is the body material?
Answer: The body is made from PBT, with the thread part constructed from brass and treated with electroless nickel plating for enhanced durability in SMC flow meter systems.
10.What is the thread standard?
Answer: The thread standard is R, with both inlet and outlet threads being 1/8 inch, ensuring compatibility with vacuum generator pneumatic components.
