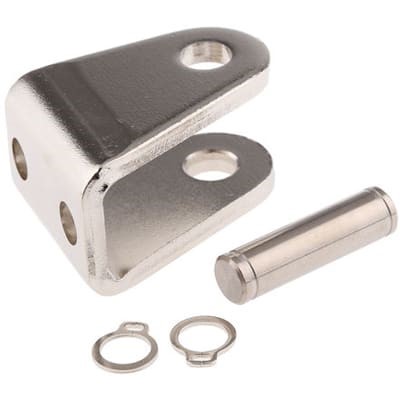

The SMC C85C25 is a U-shaped SMC clevis for SMC C85 ISO cylinder. It is specifically designed to work with SMC C85 series ISO cylinder, suitable for 20mm and 25mm hole sizes. This product is perfectly compatible with C85 series ISO cylinders without the need for additional adapters.
The U-shaped design allows for quick and easy installation, saving both time and cost while ensuring sturdy construction for long-term stable operation in harsh industrial environments. It is primarily used for fixing cylinders in industrial automation equipment.
Product Specifications
Series: C85
Type: U-shaped SMC clevis
Suitable Hole Sizes: 20mm and 25mm
Material: Typically high-strength aluminum alloy or stainless steel; refer to product samples for specific material.
Installation Method: Supplied in pairs for ISO cylinder foot fixing.
Product Features
Strong Compatibility: Perfectly matches SMC C85 ISO cylinder without requiring additional adapters.
Easy Installation: The U-shaped design enables quick and simple installation, saving installation time and costs.
High Reliability: Sturdy construction ensures long-term stable operation even in harsh industrial environments.
Applications
The C85C25 SMC clevis is primarily used to fix cylinders in industrial automation equipment and is widely applied in the following fields:
Machinery Manufacturing: Used to fix cylinders for material handling and processing on automated production lines.
Food Processing: Provides stable support for cylinders in clean and hygienic environments.
Automotive Manufacturing: Ensures precise cylinder movement in automotive parts production.
Installation Instructions
Select the Appropriate Hole Size: Choose between 20mm or 25mm hole sizes according to ISO cylinder installation requirements.
Fix the U-shaped SMC clevis: Install the U-shaped SMC clevis onto the cylinder foot and ensure the fasteners are secure.
Check Stability: After installation, verify the clamp is firmly attached to ensure no loosening during cylinder operation.
Maintenance and Care
Regular Fastener Checks: Ensure the bolts and nuts of the U-shaped SMC clevis are tight to prevent instability during cylinder operation.
Cleaning and Anti-corrosion: Regularly clean the U-shaped SMC clevis surface to remove dust and dirt, and prevent corrosion.
Precautions
Avoid Overload: Ensure the load on the U-shaped SMC clevis is within the designed range to avoid damage due to overloading.
Environmental Suitability: While the C85C25 has good environmental resistance, additional protection measures should be taken when used in extreme temperatures or corrosive environments.
FAQs
1. Is the C85C25 SMC clevis suitable for all SMC C85 ISO cylinder?
Yes, the C85C25 is designed specifically for C85 series cylinders and is compatible with single-acting and double-acting cylinders with diameters between 10mm and 25mm.
2. Is professional tooling required for installation?
The installation process is relatively simple and generally does not require special tools. A standard wrench and screwdriver are usually sufficient.
3. What is the maximum load capacity?
The load capacity depends on the material and design of the clamp, but it is suitable for normal working conditions. For higher load capacities, larger fixture sizes or consultations with SMC technical support are recommended.
4. Does SMC offer customization?
Yes, SMC supports customization based on specific application needs, including size, material, and surface treatment.
5. What is the lifespan?
The C85C25 is made from high-strength materials and is designed for durability under normal use. However, its lifespan can be influenced by environmental and operational conditions.
6. Are there installation location restrictions?
Installation should be based on the cylinder’s needs and the overall layout of the equipment. It should be positioned on the cylinder foot for stability and precision. Avoid locations with excessive vibration or uneven forces.
7. Does the C85C25 SMC clevis require regular maintenance?
Yes, regular maintenance, such as checking for loose fasteners and cleaning dirt and debris, is recommended to ensure the clamp’s longevity and stable operation.
8. Is the material corrosion-resistant?
The materials typically used, such as high-strength aluminum alloy and stainless steel, provide good corrosion resistance. However, additional protection should be taken in extreme environments.
9. Does the C85C25 SMC clevis support multiple installation methods?
The installation method is mainly through bolts and nuts, ensuring secure attachment to the cylinder’s foot. Custom installation methods can be discussed with SMC technical support.
10. Are there alternatives ?
While there may be similar products, the C85C25 is specifically designed for SMC C85 ISO cylinder, ensuring better compatibility and performance. Alternative products should be carefully compared and tested before use.
