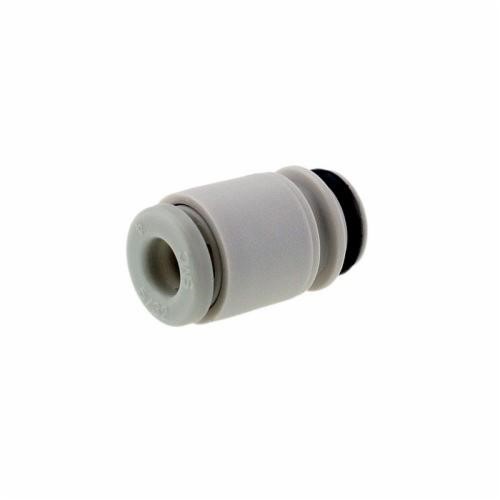

SMC Tube Fittings for Vacuum Regulator Valve VVQ1000-51A-C8 IRV10
The VVQ1000-51A-C8 is a quick-change SMC tube fitting for vacuum regulator valve, produced by SMC and belonging to the IRV10 series. This product is specifically designed for vacuum pipeline pressure regulation, featuring lightweight design, easy installation, and flexi···
- Contact Us Contact On WhatsApp
-
010-64225983
+8613811814778
info@zhongpingtech.com
Building 26, Liyuan Community, Chaoyang District, Beijing, China
The VVQ1000-51A-C8 is a quick-change SMC tube fitting for vacuum regulator valve, produced by SMC and belonging to the IRV10 series. This product is specifically designed for vacuum pipeline pressure regulation, featuring lightweight design, easy installation, and flexible configuration. Its built-in quick-change SMC tube fitting allows for rapid installation and removal of pressure gauges and digital pressure switches, and it also supports flexible adjustments in installation direction and angle.
Product Specifications
Type of fitting: Straight-through.
Fitting size: C8 (Φ8mm).
Pressure setting range: -100 kPa to -1.3 kPa.
Compatible series: IRV10.
Weight: 20% lighter than traditional products.
Product Features
Built-in quick-change fitting: Enables rapid replacement of SMC tube fittings that belongs to the IRV10 series, reducing maintenance time.
Flexible installation design: Supports quick installation and removal of pressure gauges and digital pressure switches. The installation direction and angle can be adjusted as needed (in increments of 60°).
Lightweight design: 20% lighter than traditional products, making it easier to integrate into complex automation systems.
Applications
The VVQ1000-51A-C8 is primarily used in industrial automation scenarios that require precise control of vacuum regulator valve pressure, such as:
Vacuum suction cup systems: Controls the pressure of vacuum suction cups to ensure stable holding and release of workpieces.
Automated production lines: Provides reliable vacuum regulator valve pressure regulation in robotic handling and material transfer processes.
Semiconductor manufacturing: Used in high-precision, high-cleanliness semiconductor production environments for vacuum regulator valve pressure control.
Instructions for Use
Installation and Configuration
Installation environment: Ensure the installation location is free from corrosive gases, water vapor, or strong vibrations. Avoid direct sunlight or high-temperature environments.
Pipeline connection: Choose the appropriate fitting size (e.g., C8) based on equipment requirements and ensure a secure connection to prevent leaks.
Pressure adjustment: Set the desired vacuum regulator valve pressure using the built-in pressure gauge or digital pressure switch.
Maintenance and Inspection
Regular inspection: Check the sealing and connection stability of the SMC tube fittings to ensure no leaks.
Cleaning and maintenance: Regularly clean impurities from the SMC tube fittings to prevent blockages that could affect vacuum regulator valve system performance.
Component replacement: If damage to the SMC tube fittings or pressure gauge is detected, replace them promptly.
Precautions
Environmental adaptability: Avoid using in environments with large amounts of condensation or corrosive gases.
Pressure range: Ensure the set pressure is within the specified range (-100 kPa to -1.3 kPa) to prevent vacuum regulator valve equipment damage.
Safe operation: When installing or maintaining, always disconnect the system pressure source and ensure the equipment is in a safe state.
Frequently Asked Questions and Answers
How to quickly replace the fitting on the VVQ1000-51A-C8?
Quick-change design: The VVQ1000-51A-C8 features a built-in quick-change SMC tube fitting that allows for easy replacement without complicated tools.
Steps: Loosen the fitting's locking nut, gently pull out the old SMC tube fitting, insert the new one, and tighten the nut securely.
Note: Ensure the pressure in the pipeline is fully released before replacement to avoid accidents.
What is the pressure regulation range of the VVQ1000-51A-C8?
Pressure range: -100 kPa to -1.3 kPa.
Adjustment method: Use the built-in pressure gauge or digital pressure switch to regulate the vacuum regulator valve pressure within the specified range.
Application: This range is suitable for most vacuum suction cups and automation equipment, meeting high-precision vacuum regulator valve control needs.
How to ensure the correct installation direction and angle of the VVQ1000-51A-C8?
Design: The VVQ1000-51A-C8 supports adjustable installation direction and angle for pressure gauges and digital pressure switches.
Steps: Install at the desired angle (in increments of 60°) based on equipment layout and operational needs.
Note: Ensure the installation direction aligns with the vacuum regulator valve system's flow requirements to avoid performance issues.
Is the VVQ1000-51A-C8 suitable for high-humidity environments?
Environmental adaptability: The VVQ1000-51A-C8 is not recommended for high-humidity or condensation-prone environments, as these conditions can cause rust or corrosion, affecting sealing and lifespan.
Protective measures: If high humidity is unavoidable, consider adding a protective cover to shield the SMC tube fittings from moisture. Regularly inspect the seals and ensure proper drainage to prevent water accumulation.
Alternative solutions: For unavoidable high-humidity environments, consider using specialized sealed SMC tube fittings or vacuum regulator valve system components with waterproof and moisture-resistant features.
What are the advantages of the lightweight design of the VVQ1000-51A-C8?
Benefits: The VVQ1000-51A-C8 is 20% lighter than traditional products, reducing overall weight and mechanical load. This makes the vacuum regulator valve system more flexible and easier to integrate.
Ease of installation and maintenance: The lightweight design makes installation and replacement more convenient, reducing labor intensity and time costs.
Adaptability to complex systems: In automated production lines or robotic systems, the lightweight design minimizes interference with moving parts and reduces vibration and inertia, enhancing system stability.
How to ensure the precision of pressure regulation for the VVQ1000-51A-C8?
Use high-precision tools: For accurate vacuum regulator valve pressure regulation, use high-precision pressure gauges or digital pressure switches that offer fine-tuning capabilities.
Regular calibration: Pressure gauges or switches should be calibrated every 3-6 months to maintain accuracy. Compare with a standard pressure source and adjust the readings accordingly.
Avoid external interference: Ensure the equipment is installed in a stable, interference-free environment and carefully monitor pressure changes during adjustment.
Does the quick-change fitting of the VVQ1000-51A-C8 support other pipe sizes?
Compatibility: The VVQ1000-51A-C8's quick-change SMC tube fitting is designed for C8 (Φ8mm) pipes. For other sizes, consider SMC's alternative models like C6 or C10.
Customization: For special requirements, contact SMC's technical support to customize SMC tube fittings for specific pipe sizes.
Does the installation direction and angle adjustment of the VVQ1000-51A-C8 affect vacuum regulator valve system performance?
Impact: While the design allows for flexible adjustments, improper installation can cause airflow disruption and affect pressure regulation accuracy.
Best practices: Align the SMC tube fittings with the vacuum regulator valve pipeline as much as possible to minimize bends. Ensure adjustments comply with the system's flow requirements.
Testing: After installation, test the system to ensure proper pressure regulation and leak-free operation.
Is the VVQ1000-51A-C8 compatible with vacuum regulator valve equipment from other brands?
Compatibility: The VVQ1000-51A-C8 is designed to meet common industrial standards and is compatible with most vacuum regulator valve equipment.
Notes: Ensure the pressure range and pipe size match those of other equipment.
Support: For compatibility issues, consult SMC's technical support or refer to relevant documentation.
What is the maintenance cycle for the VVQ1000-51A-C8?
Cycle: Maintenance frequency depends on the environment and usage. In typical industrial settings, inspect every 3-6 months. In harsh conditions, shorten the cycle to monthly or quarterly.
Maintenance tasks: Inspect seals, clean pipes, check pressure gauges, and ensure connections are secure.
Importance of preventive maintenance: Regular maintenance helps identify potential issues early, reducing downtime and maintenance costs while enhancing vacuum regulator valve system reliability.
