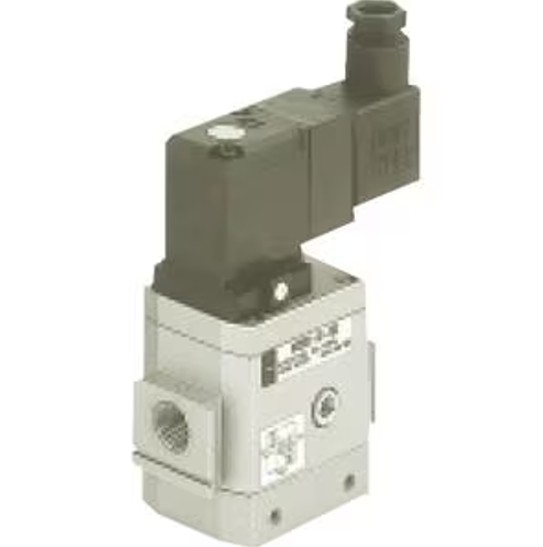

The SMC AV3000-F03-3DZ-Q 24V pneumatic solenoid valve is a 24V pneumatic solenoid valve designed for efficient airflow control in pneumatic systems. As part of SMC pneumatics products, this valve provides a slow-start feature to protect against system shock. It is compatible with various pneumatic fittings and ensures precise control for automated machinery, pneumatic tools, and control systems, especially in situations where precise control of startup speed is required.
Product Specifications
Body Size: 30mm, corresponding to a standard 3/8-inch size.
Thread Type: NPT.
Pipe Connection Diameter: 3/8 inch.
Coil Rated Voltage: DC24V.
Wiring Method: DIN terminal.
Operating Temperature Range: -5°C to 60°C.
Maximum Operating Pressure: 2.0 MPa.
Pressure Resistance: Guaranteed to withstand up to 3.0 MPa.
Product Features
Low-Speed Air Supply and Fast Exhaust: The SMC AV3000-F03-3DZ-Q 24V pneumatic solenoid valve provides low-speed air supply during startup while quickly exhausting air, effectively reducing system shock.
High-Precision Control: With precise flow control, this component ensures smooth startup and operation of pneumatic systems, a characteristic feature of SMC pneumatics products.
Multiple Interface Options: Supports various thread types and pneumatic fittings, ensuring easy integration with other devices.
Durability and Reliability: Tested rigorously and certified by TÜV, suitable for high-pressure and harsh environments.
Applications
The SMC AV3000-F03-3DZ-Q 24V pneumatic solenoid valve is widely used in the following fields:
Automated Machinery: Controls the startup speed of devices such as cylinders and pneumatic slides.
Pneumatic Tools: Provides stable airflow control for tools like pneumatic wrenches and screwdrivers.
Industrial Manufacturing: Used in industries such as automotive, electronics, and food processing for precise control of pneumatic systems.
Mining and Mineral Processing: Offers reliable pneumatic control in harsh environments.
Instructions for Use
Installation and Connection: Ensure the installation environment is dry and dust-free, and avoid strong electromagnetic interference. Use appropriate thread connections to ensure airtightness with pneumatic fittings.
Parameter Settings: Adjust the air supply and exhaust speed according to actual needs. Ensure system pressure is within the rated range to avoid overpressure operation.
Maintenance and Inspection: Regularly check the valve's airtightness and electrical connections. Clean the valve surface to prevent dust and impurities from affecting performance.
Precautions
Operating Pressure and Temperature: Avoid operating the valve beyond its rated pressure and temperature range.
Electrical Safety: Ensure electrical connections meet standards to avoid voltage fluctuations.
Long-Term Use: If continuous long-term operation is required, it is recommended to contact SMC pneumatics products for technical support.
Frequently Asked Questions and Answers
How to choose the rated voltage for a slow-start valve?
Voltage Selection: Choose the rated voltage based on the power supply conditions of your system. The AV3000 series supports multiple voltage options, such as DC24V and AC110V.
Voltage Stability: Ensure the power supply voltage is stable to prevent valve damage due to voltage fluctuations.
Safety Considerations: When selecting the voltage, also consider the safety of operators to avoid risks associated with high voltages.
What is the maximum operating pressure of the AV3000-F03-3DZ-Q?
Maximum Operating Pressure: The maximum operating pressure for this valve is 2.0 MPa.
Pressure Resistance: Although the valve is guaranteed to withstand up to 3.0 MPa, it is recommended not to exceed the rated pressure during actual use.
Pressure Regulation: It is advisable to use a pressure regulator during installation to ensure stable system pressure.
How to maintain the AV3000 series slow-start valve?
Regular Inspection: Check the valve's airtightness, electrical connections, and mechanical components regularly.
Cleaning and Maintenance: Regularly clean the valve surface and internal impurities to prevent blockages.
Component Replacement: Replace any damaged or aging components promptly.
Does this series of slow-start valve support fast exhaust function?
Fast Exhaust Function: This valve supports fast exhaust, which quickly releases system pressure when closed.
Application Scenarios: The fast exhaust function helps reduce system shock and improve equipment response speed.
Precautions: When using the fast exhaust function, ensure the system design can withstand rapid pressure changes.
What is the environmental adaptability of the AV3000-F03-3DZ-Q?
Operating Temperature Range: The valve operates within a temperature range of -5°C to 60°C.
Protection Rating: Made from corrosion-resistant materials, it is suitable for use in humid and dusty environments.
Electromagnetic Compatibility: It meets relevant electromagnetic compatibility standards and can operate stably in industrial environments.
How to set the startup speed of a slow-start valve?
Startup Speed Adjustment: Adjust the air supply speed parameter of the valve to achieve a slow startup.
Application Scenarios: In situations where pneumatic systems need protection, the slow startup function can reduce shock.
Precautions: When adjusting the startup speed, optimize it based on the actual load.
What types of threads are available for the AV3000-F03-3DZ-Q?
Thread Types: The valve supports various thread types, such as NPT.
Connection Methods: Choose the appropriate thread type based on system requirements to ensure a secure connection.
Sealing: Use sealant or gaskets during installation to ensure no leakage at the connection points.
Does the slow-start valve series support manual operation?
Manual Operation Function: The series supports manual operation, which is convenient for controlling the valve in emergency situations.
Operation Methods: Manual operation typically uses a non-locking button or a locking lever.
Precautions: When operating manually, ensure the system pressure is within a safe range.
What are the electrical connection methods for a slow-start valve?
Electrical Connection Methods: Supports DIN terminal and plug-in connections.
Connection Requirements: Ensure electrical connections are secure to avoid loosening or short circuits.
Voltage Protection: It is recommended to use electrical connection devices with overvoltage protection.
What is the flow adjustment range of this series of slow-start valves?
Flow Adjustment Range: The series valve has a wide flow adjustment range, which can be adjusted according to actual needs.
Adjustment Methods: Flow control is achieved through the adjustment knob on the valve or electrical signals.
Precautions: When adjusting the flow, ensure the system pressure and flow are matched to avoid overload.
