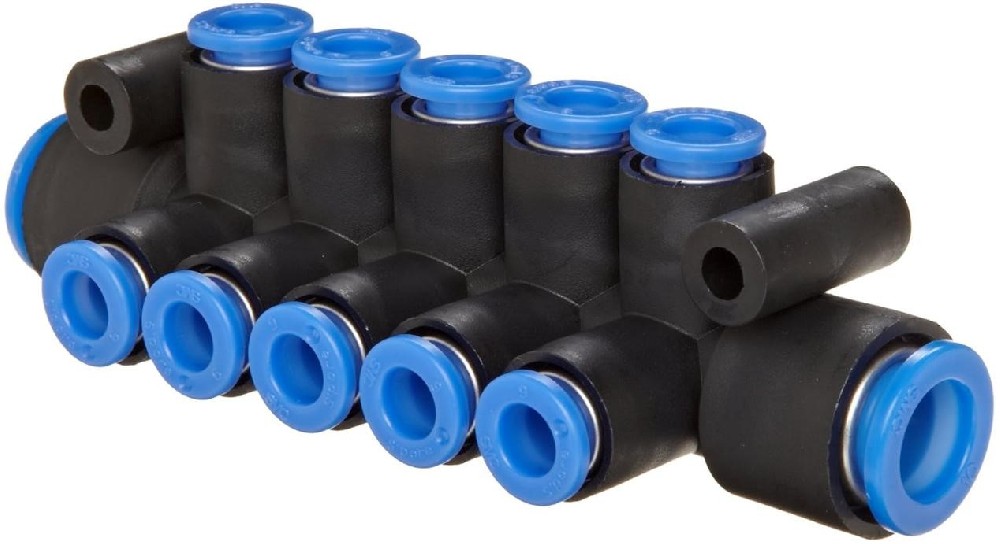

The KM16-06-06-3 are smc pneumatic tube fittings with hose and regulator produced by SMC Corporation, belonging to the KM series of base-mounted pneumatic tube fittings.
This product is suitable for air and water media, with a maximum operating pressure of 1.0 MPa and a pressure test rating of 3.0 MPa. It is designed for compact and centralized piping, featuring quick installation. The applicable smc hose outer diameter for this connector is φ6, with 3 ports available.
Product Specifications:
1. Type: Base-mounted pneumatic tube fittings
2. Interface Type: Push-to-connect, same diameter
3. Fluids: Air / Water
4. Body Material: PBT・SUS304
5. Seal Material: NBR
6. Applicable SMC Hose Outer Diameter: φ6
7. Number of Port A: 3
8. Color: Black
9. Release Sleeve Color: Blue
Product Features:
1. Lightweight Piping: Compact design for easy installation and maintenance.
2. Centralized Piping: Manages multiple pipes in a centralized manner, reducing space requirements.
3. Quick Installation: One-touch installation for improved work efficiency.
4. Multiple Specifications: The KM series offers various specifications, suitable for smc hoses of different diameters.
Application Scenarios:
1. Industrial Automation: Used for quick connection and disconnection in pneumatic tube fittings systems, enhancing production efficiency.
2. Mechanical Manufacturing: Utilized in the process of mechanical manufacturing for quick tool and equipment changes.
3. Automotive Manufacturing: Employed in automotive production lines for quick connection and disconnection of pneumatic tube fittings.
